Luminii

Decorative

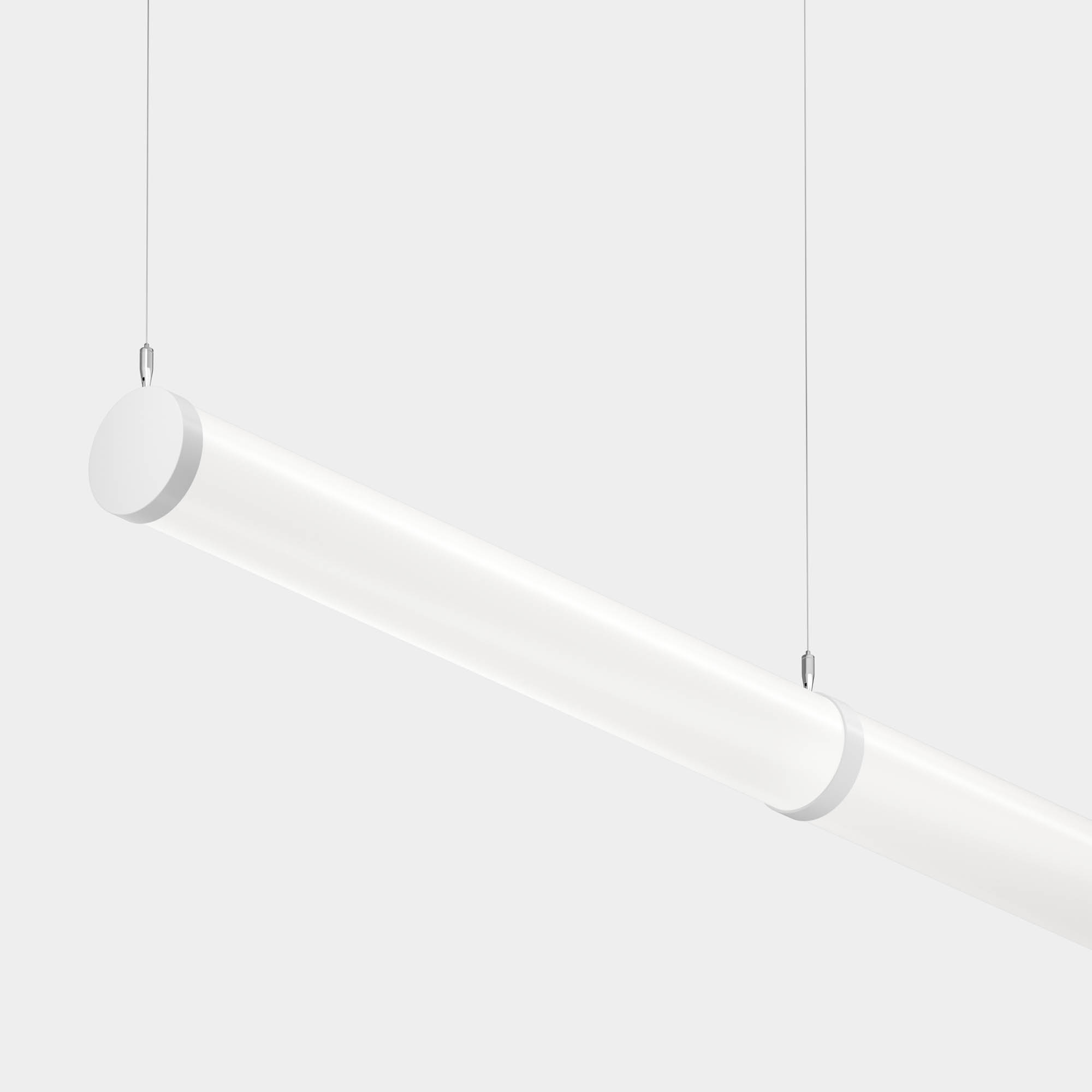

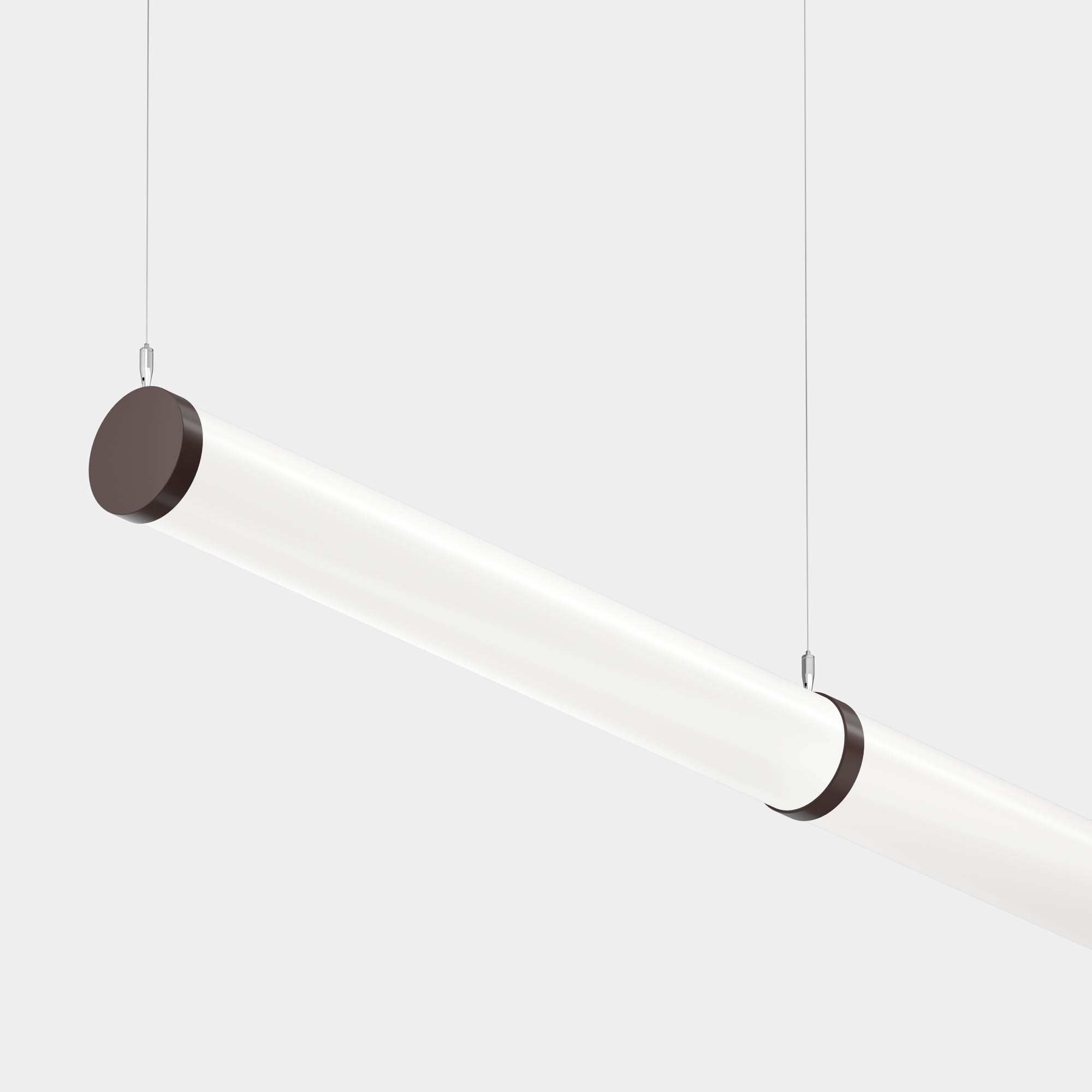

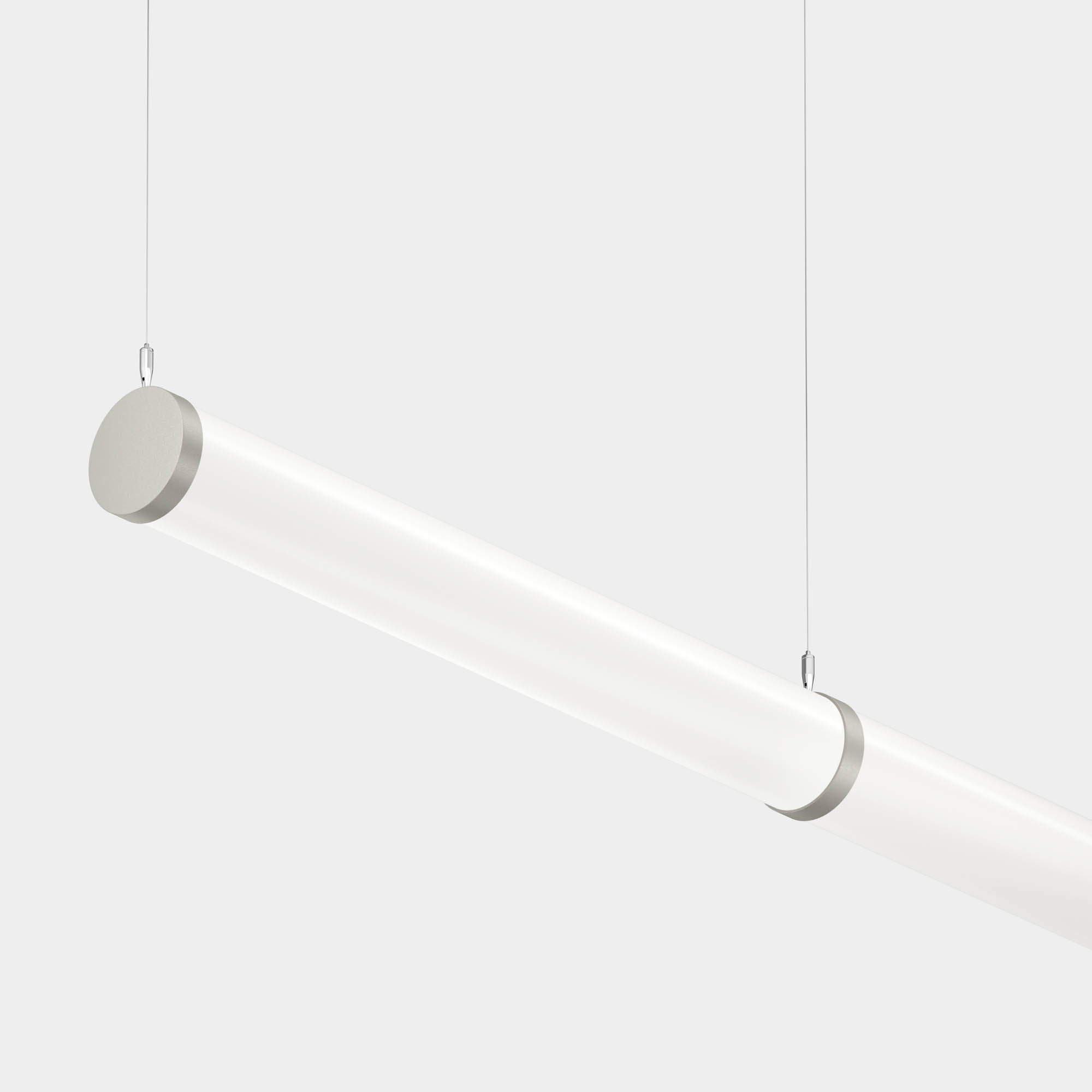

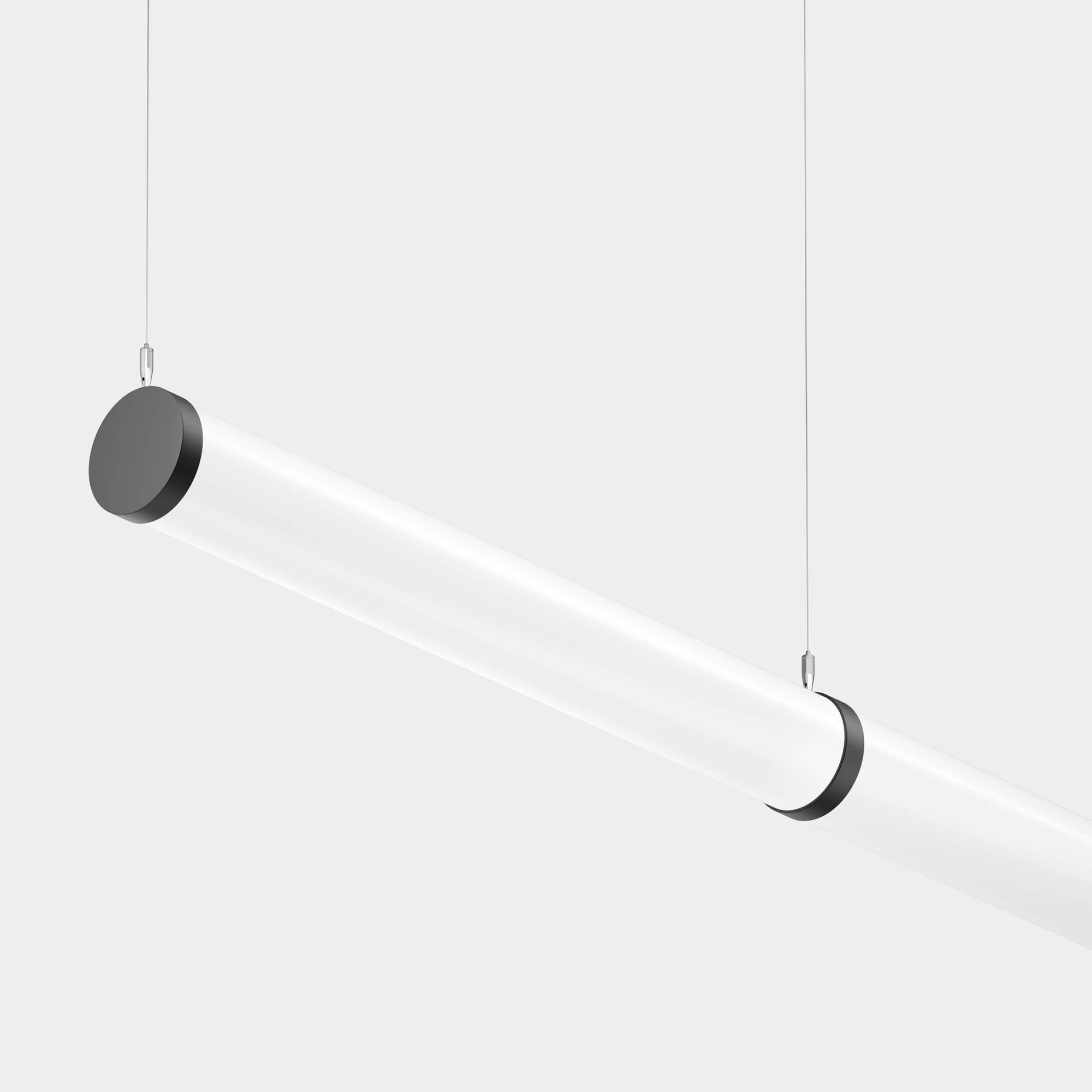

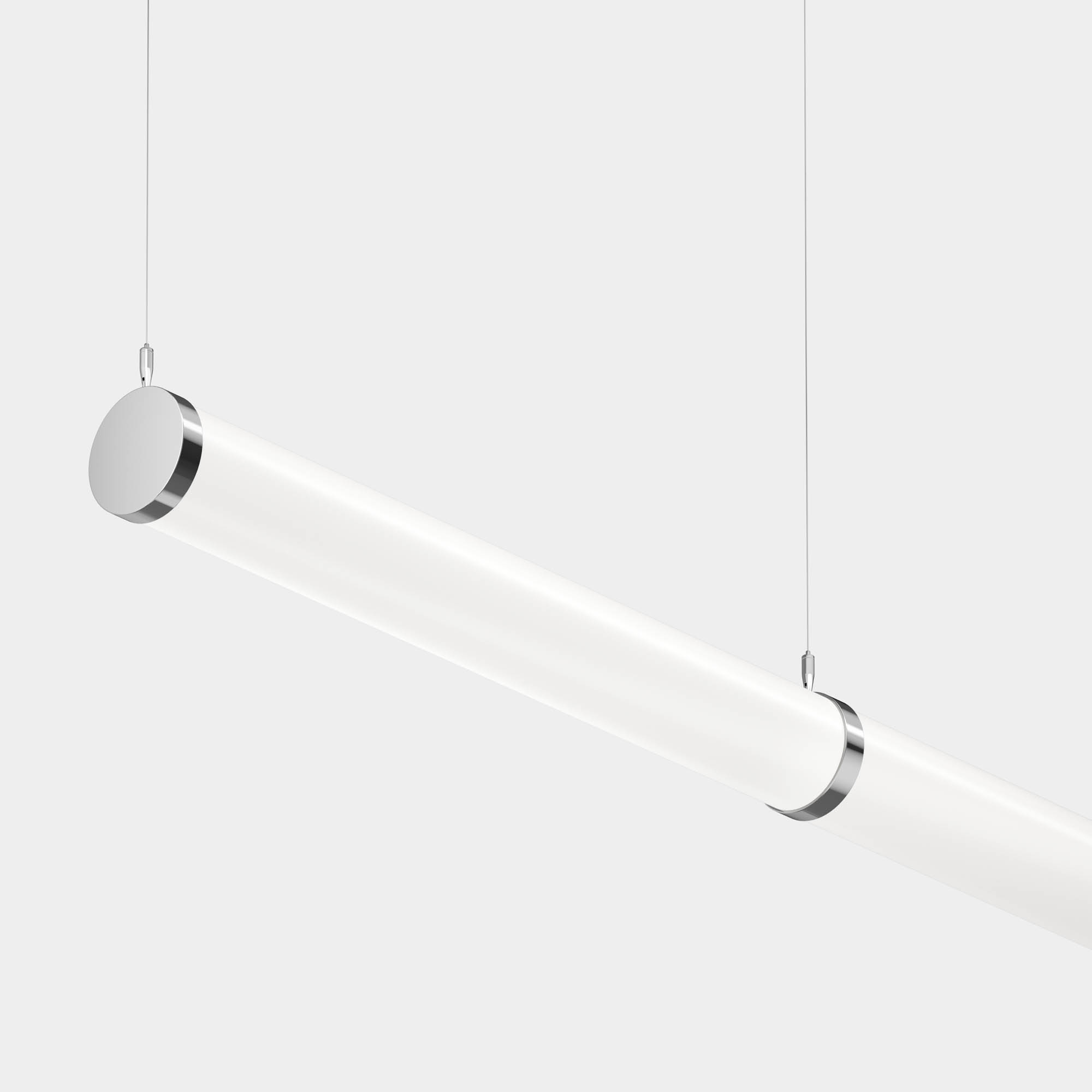

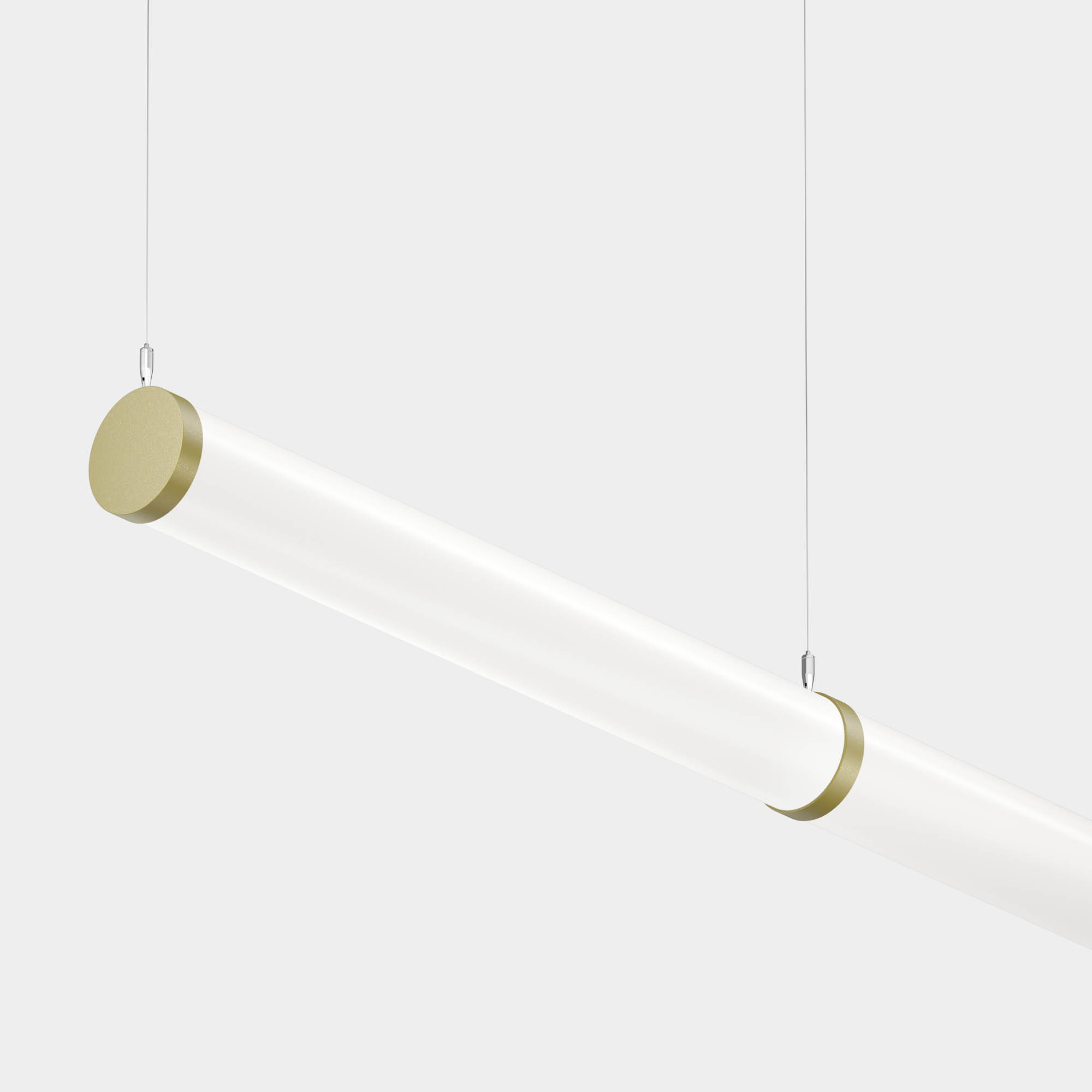

Scout Join – Static White

Suspended Linear Fixture

Damp
Overview
Specifications
  • 24VDC Class 2 fixtures made to order Class 2 listed for damp locations
  • Dot free even illumination with frosted lens
  • Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
  • 5 Year warranty
  • CCT: 1900K, 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K, 4100K
  • CRI: 98
  • Output / ft: 1284 lm/ft, 695 lm/ft, 713 lm/ft, 962 lm/ft
  • Mounting: Suspended
  • Input Voltage: Line Voltage, Low Voltage
  • Color: Static White
  • Wattage / ft: 11.2 W/ft, 14 W/ft, 7.6 W/ft
  • Rating: Damp
  • Operating Temperature: 122 F
  • Sustainability: RoHS/Reach
  • Made In: Made in America
  • Warranty: 7 years
  • Product Number: SCT-JOIN
Specsheets
Install Guides
IES Files
Cross Reference Guide
Scout Join Static White Specsheet
8.65 MB
PDF
Scout Suspension Straight Joining System Instructions
997.35 KB
PDF
SCT-HR-48-30K-HO-F-XX-D010_IESNA2002.zip
981
ZIP
Luminii Cross Reference Luminii Optic Arts
2.6 MB
PDF
