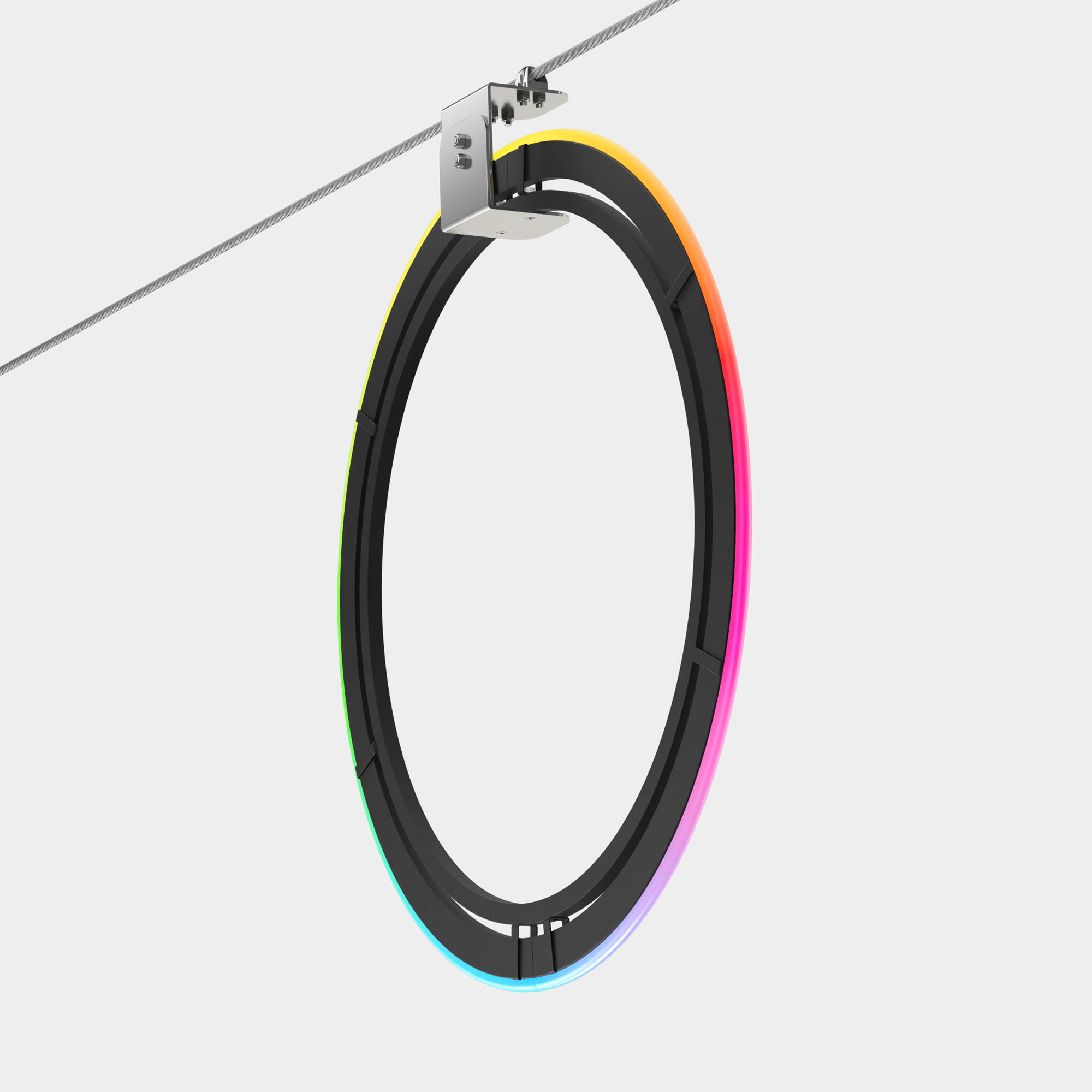

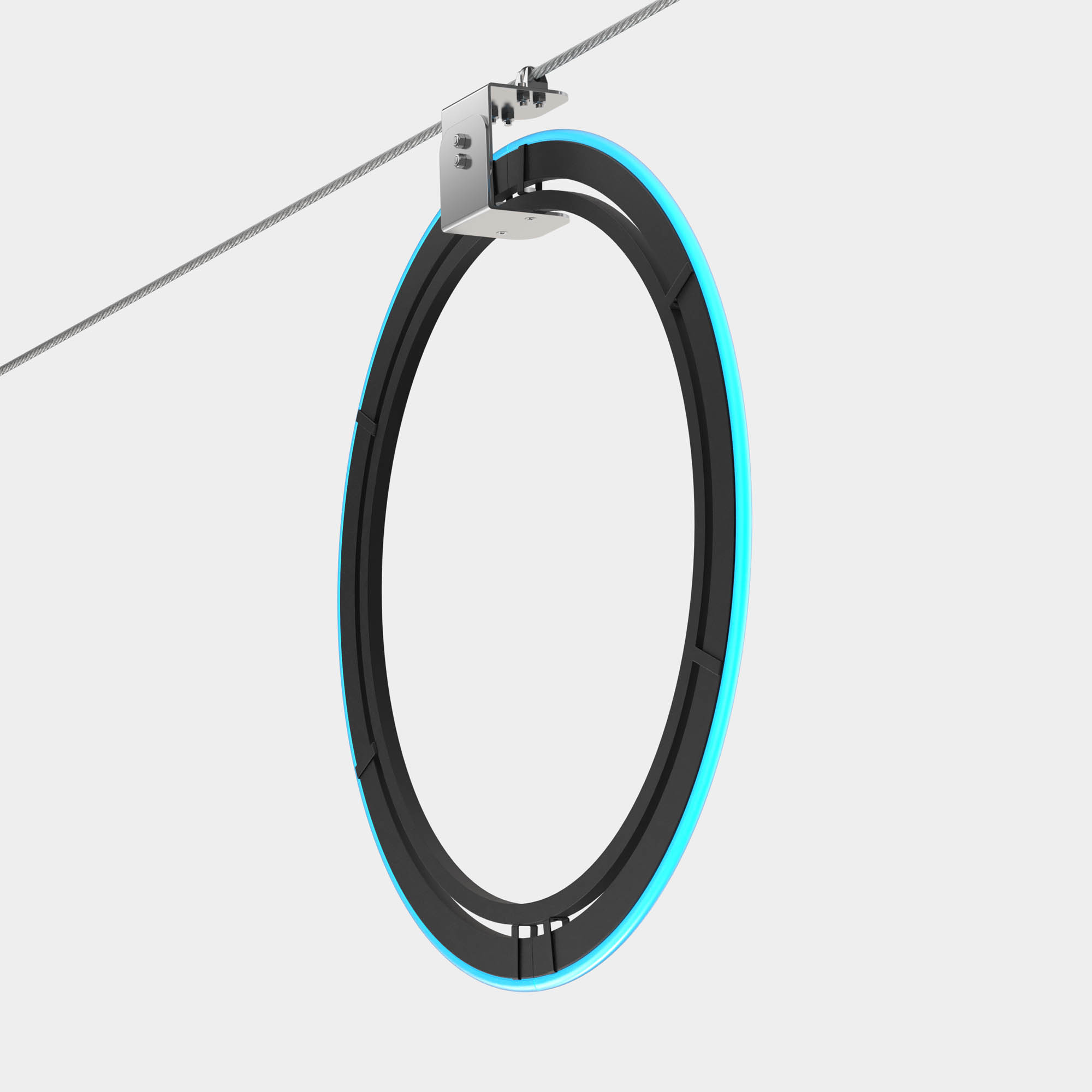

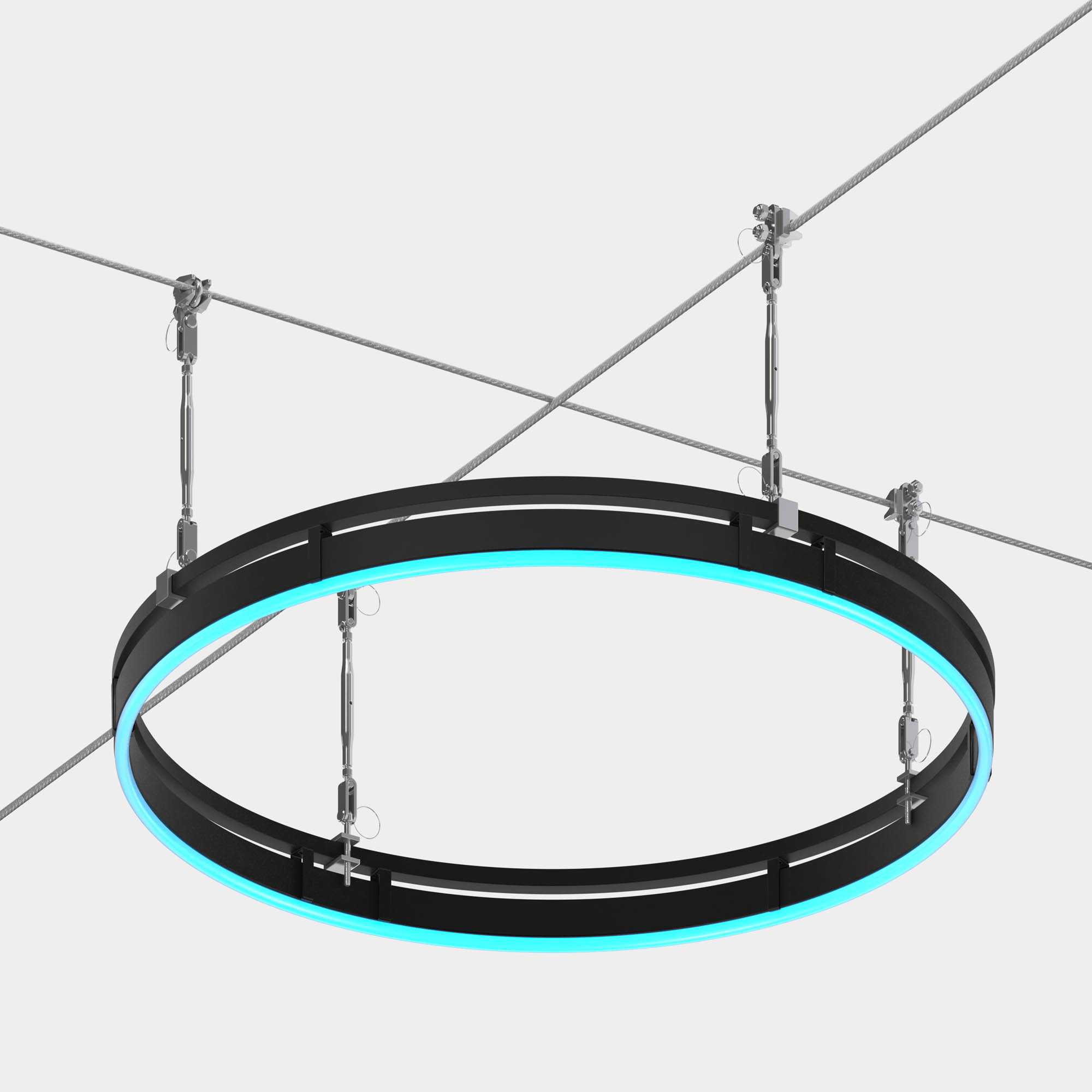

Plexineon Rings Catenary Dynamic Color

Factory Bendable Catenary Mount Ring 24V System

RGB, RGBW, Pixel Control

Overview

Specifications

For interior and exterior accent lighting
Neon look providing a clear line of light visible for miles
Includes Turnbuckles, Collar, Mounting Frame, Mounting 0.40″ Clips, and other hardware necessary to assemble to Catenary Cable
Catenary Cable, Poles, Cable Eyes, and other Cable support hardware by others
Operating Temperature: -40° F to 140° F (-40° C to 60° C) • 24VDC Class 2
IK10 and 3G rated
IP67 rated. IP68 rating available upon specific request
5 year warranty indoor, 3 year warranty outdoor

CCT: 3000K
CRI: 80+
Output: 1357 lm, 1583 lm, 2714 lm, 3166 lm, 5429 lm, 6333 lm, 679 lm, 792 lm
Output / ft: 110 lm/ft, 72 lm/ft, 84 lm/ft
Mounting: Catenary
Bend Type: Ring
Color: Pixel, RGB/RGBW
Wattage: 107.4 W, 154.6 W, 184.7 W, 214.9 W, 309.1 W, 369.5 W, 38.6 W, 429.8 W, 46.2 W, 53.7 W, 77.2 W, 92.3 W
Rating: IP68
Operating Temperature: -40°F to 140°F
Sustainability: RoHS/Reach
Made In: Made in America
Warranty: 3 Years, 5 Years
Product Number: PX
