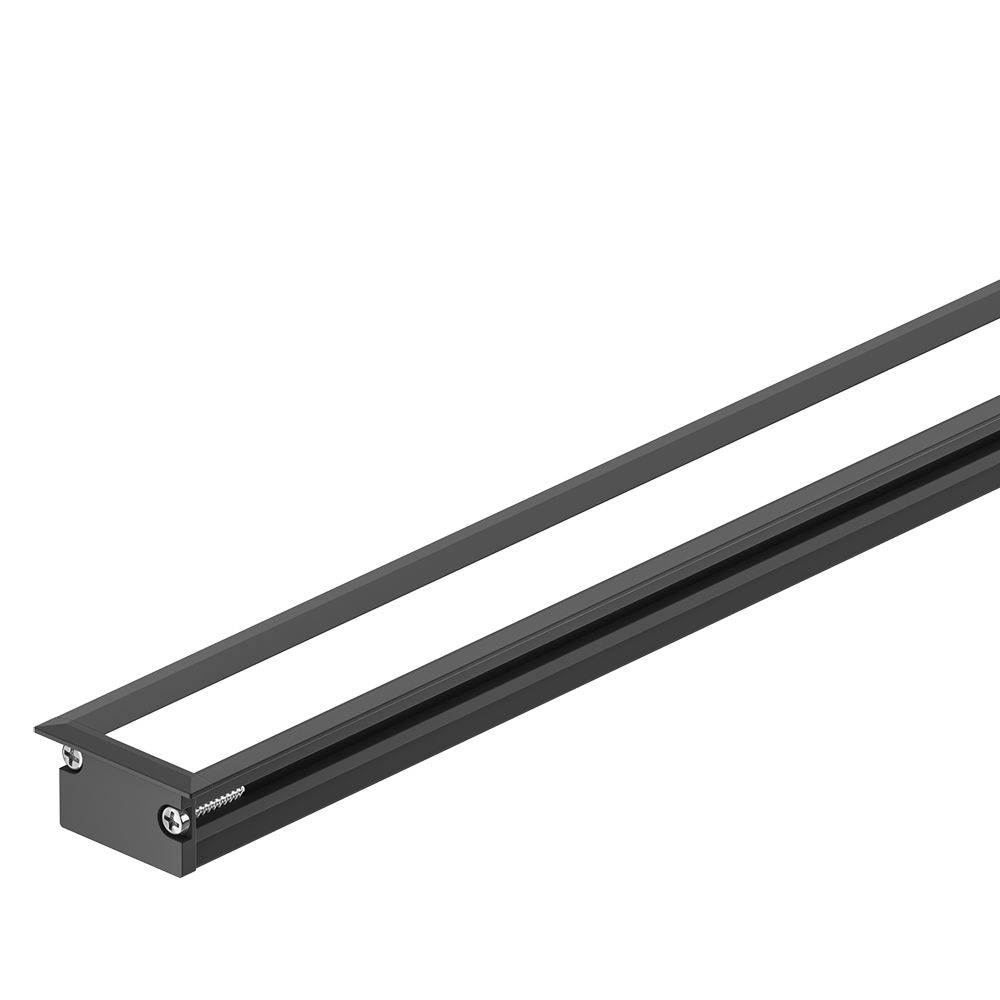

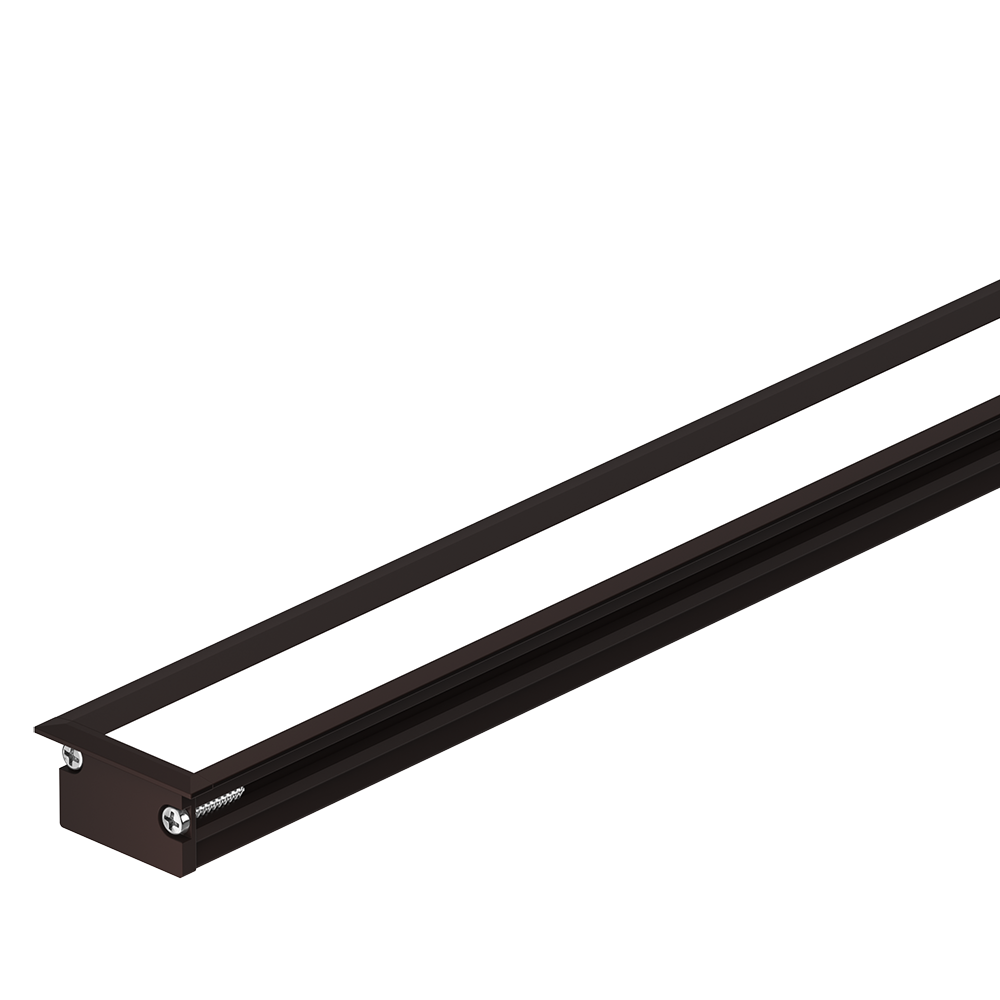

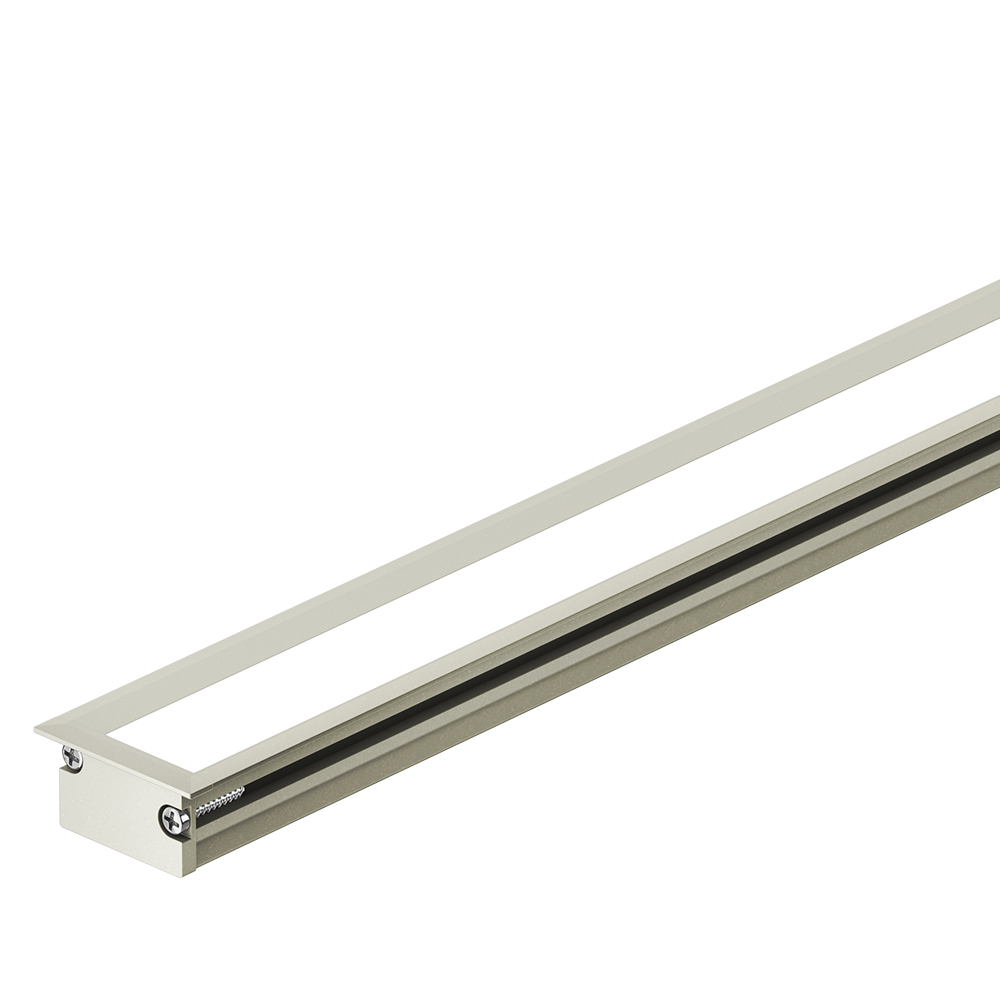

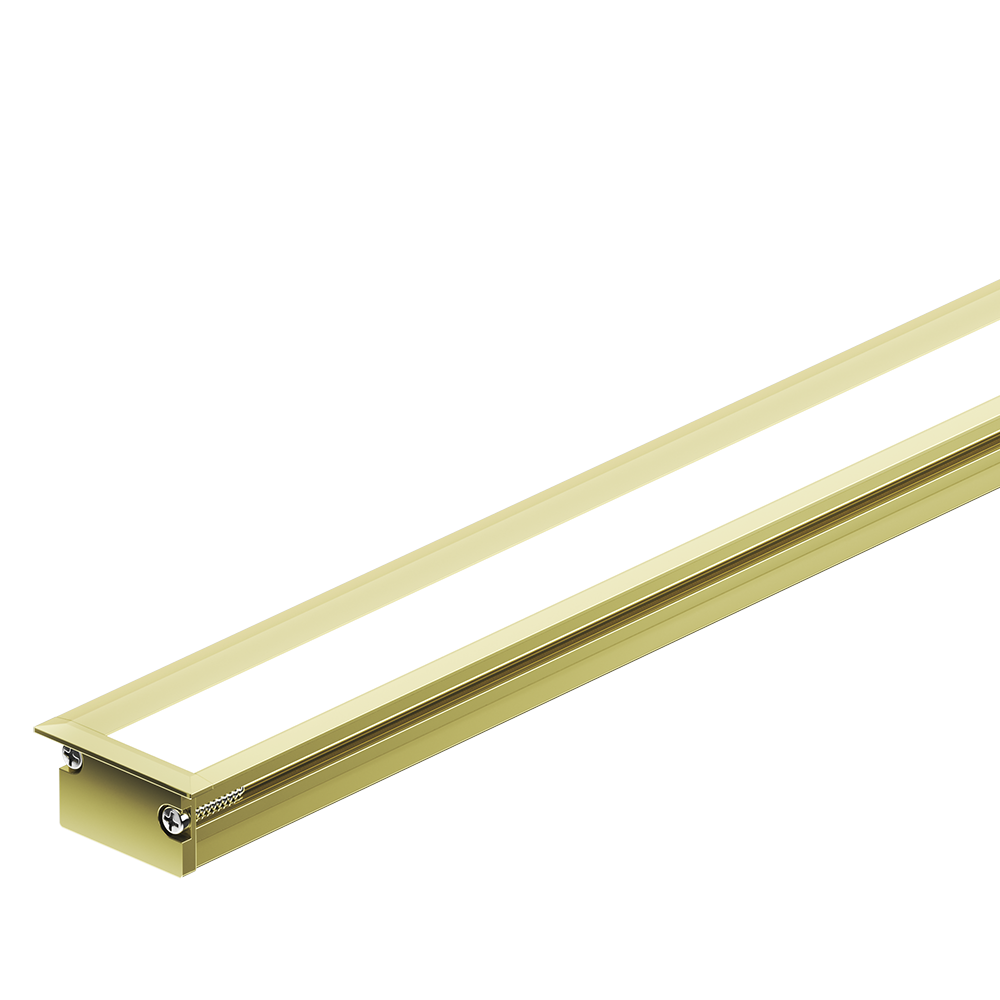

Myka Recessed Asymmetric - Static White

Myka Recessed Asymmetric – Static White

Recessed Linear 24V System

Overview

Specifications

24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 48’ depending on output

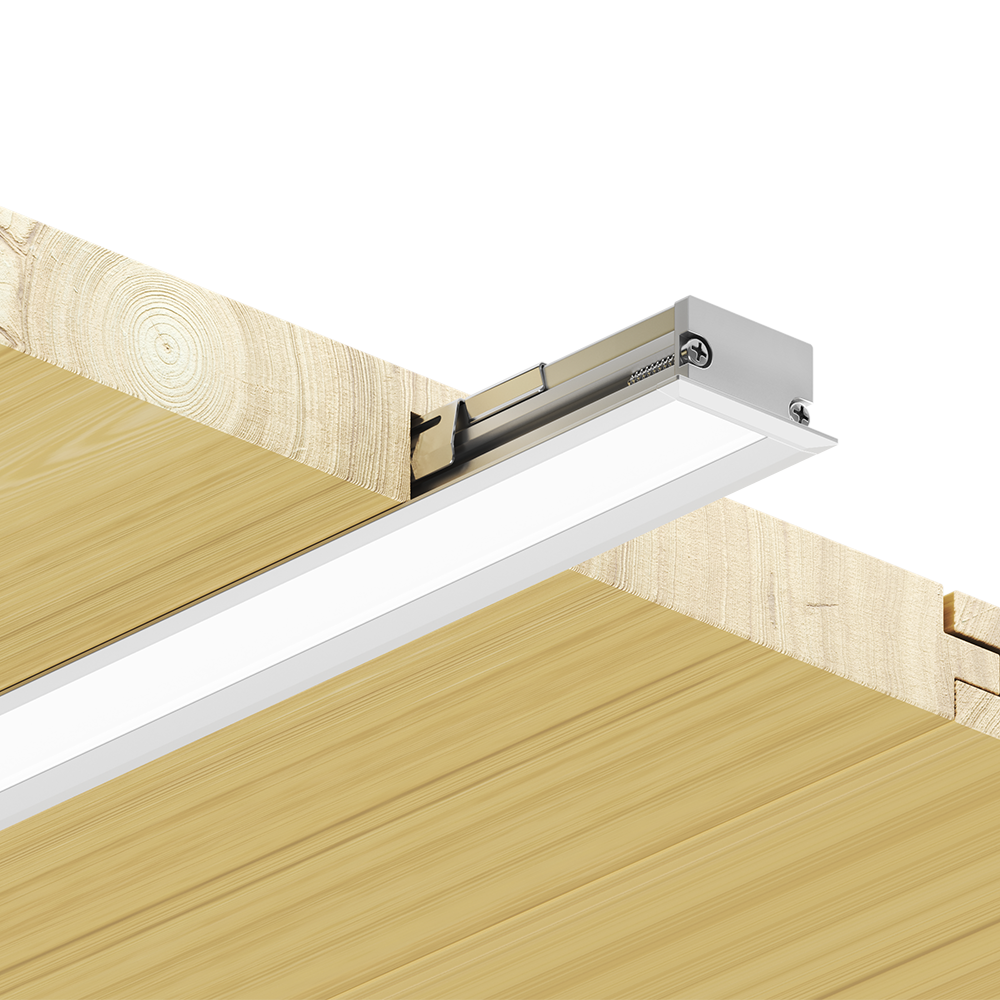

Suitable for undercabinet, millwork, direct view, grazer, vanity, architectural reveals, accent lighting and surface mount applications
Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7 W/ft or less
Dot free even illumination with frosted lens and high color outputs
Class 2 listed for damp locations
High Color Quality options offer premium quality and vibrant colors with R9 values up to 97
High Efficacy options offer best in class output and efficacy with over 540 lm/ft and up to 97 lm/W
Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
Average Life (L70): 50,000hrs
7 year warranty

CCT: 1900K, 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K, 4100K
CRI: 98
Output / ft: 185 lm/ft, 190 lm/ft, 256 lm/ft, 308 lm/ft, 341 lm/ft, 374 lm/ft, 548 lm/ft

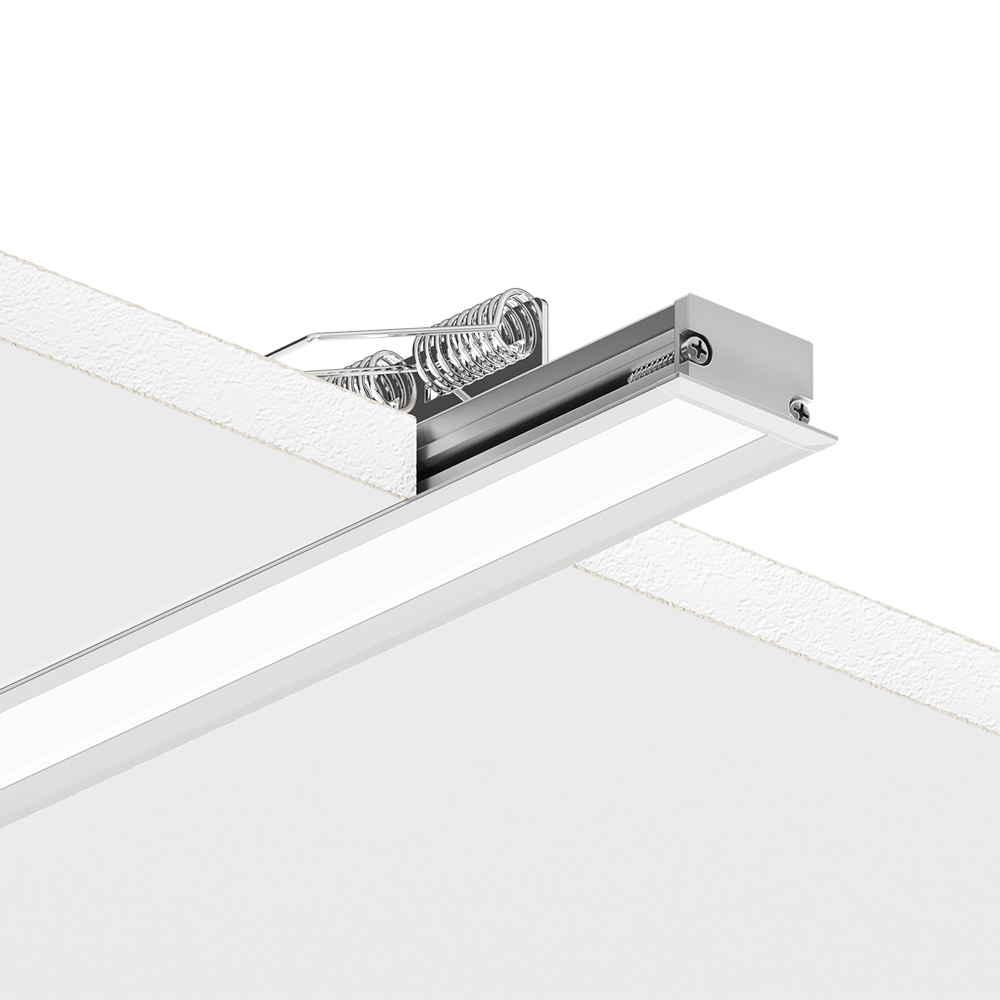

Mounting: Recessed
Type: Linear Fixture
Input Voltage: Low Voltage
Color: Static White
Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 4.8 W/ft, 6.0 W/ft, 6.5 W/ft
Rating: Damp
Lens Aperture: 0.40 inch
Size: 0.76 in
Height: 0.49 in

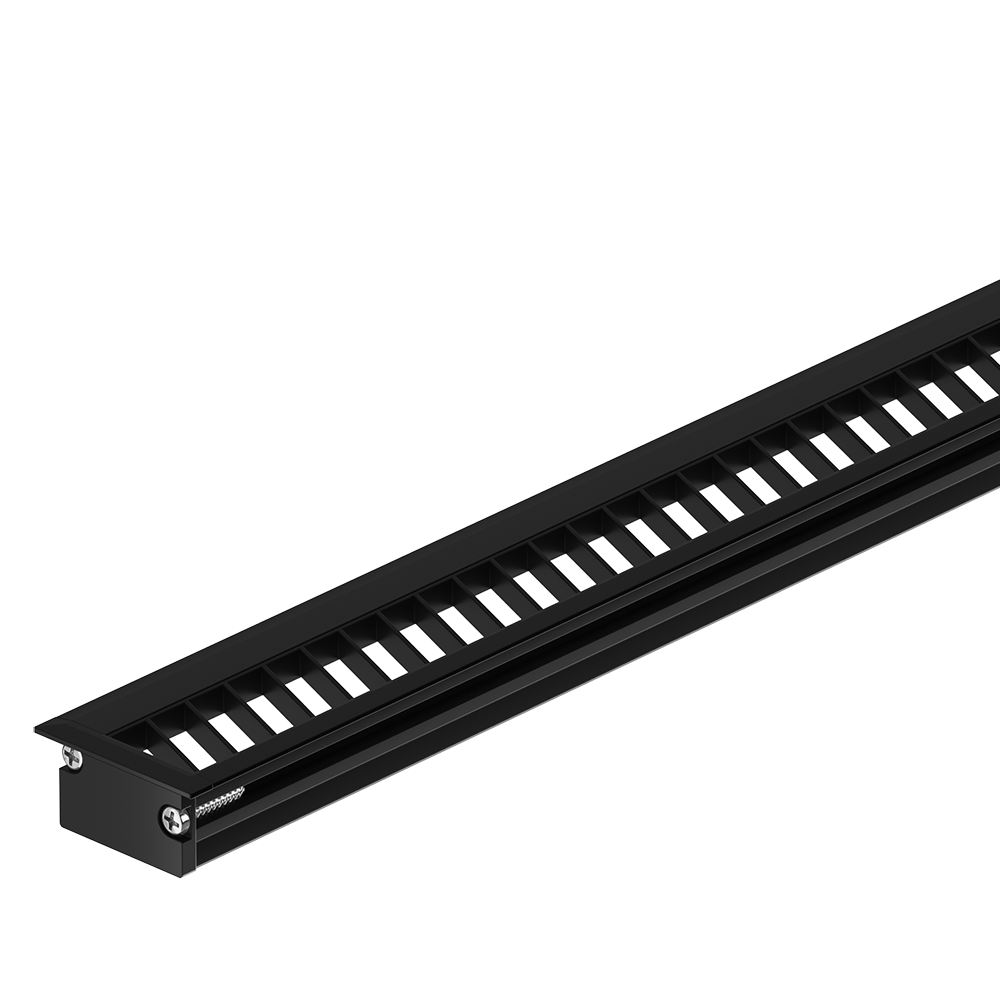

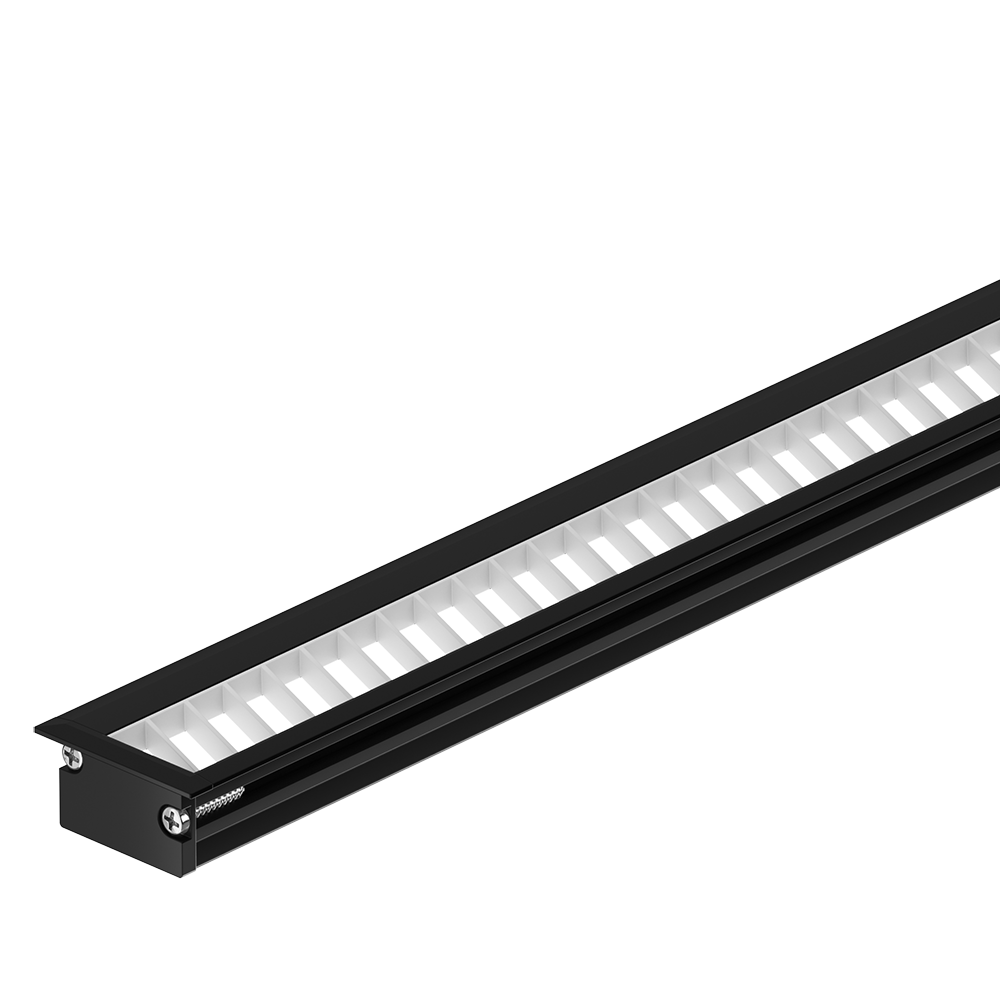

Lens: Blade Louver, Clear, Frosted, Half Frosted, Matte Frosted
Operating Temperature: -5°F to 125°F

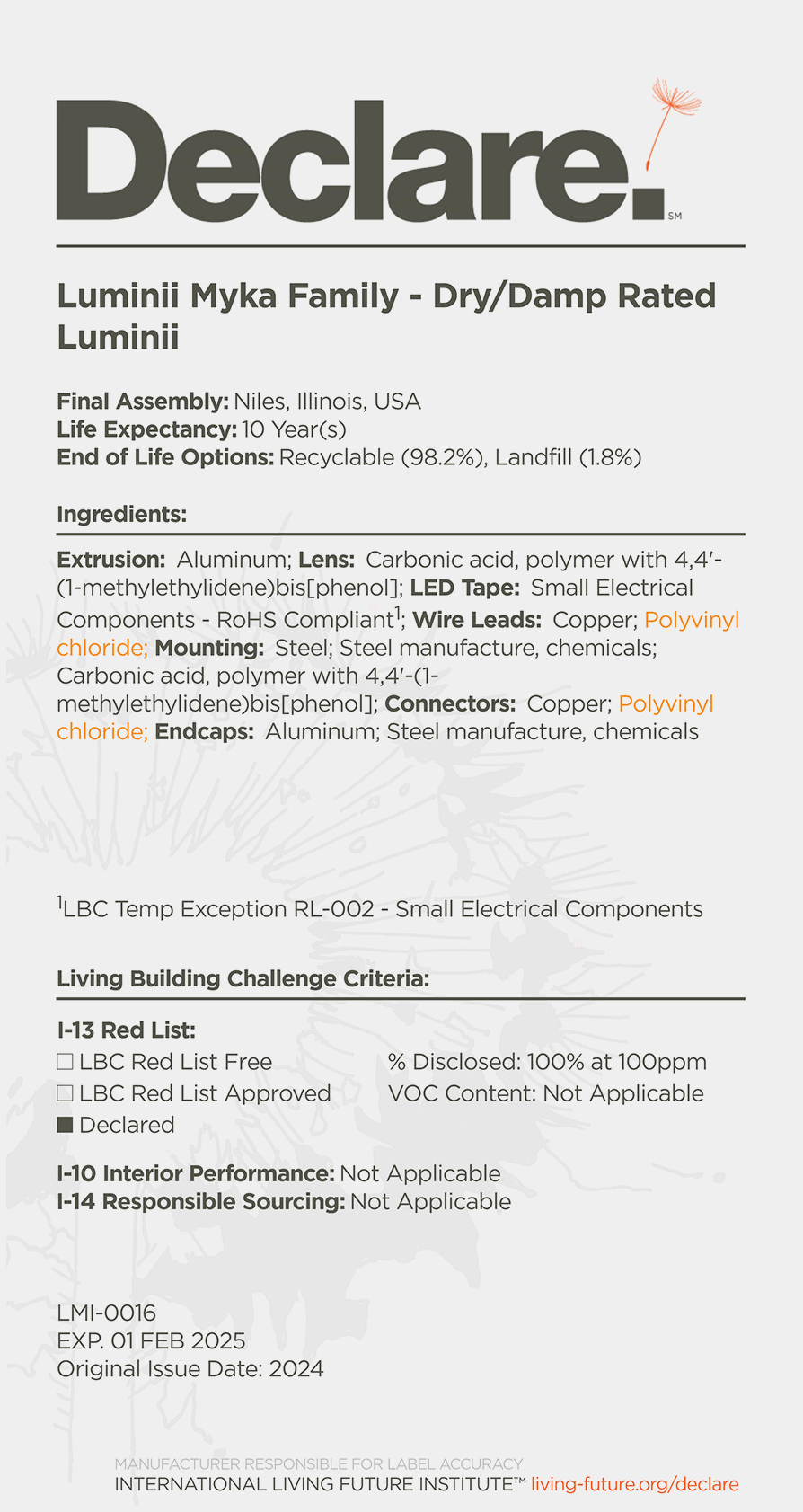

Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 7 years
Product Number: MKRA

Learn more

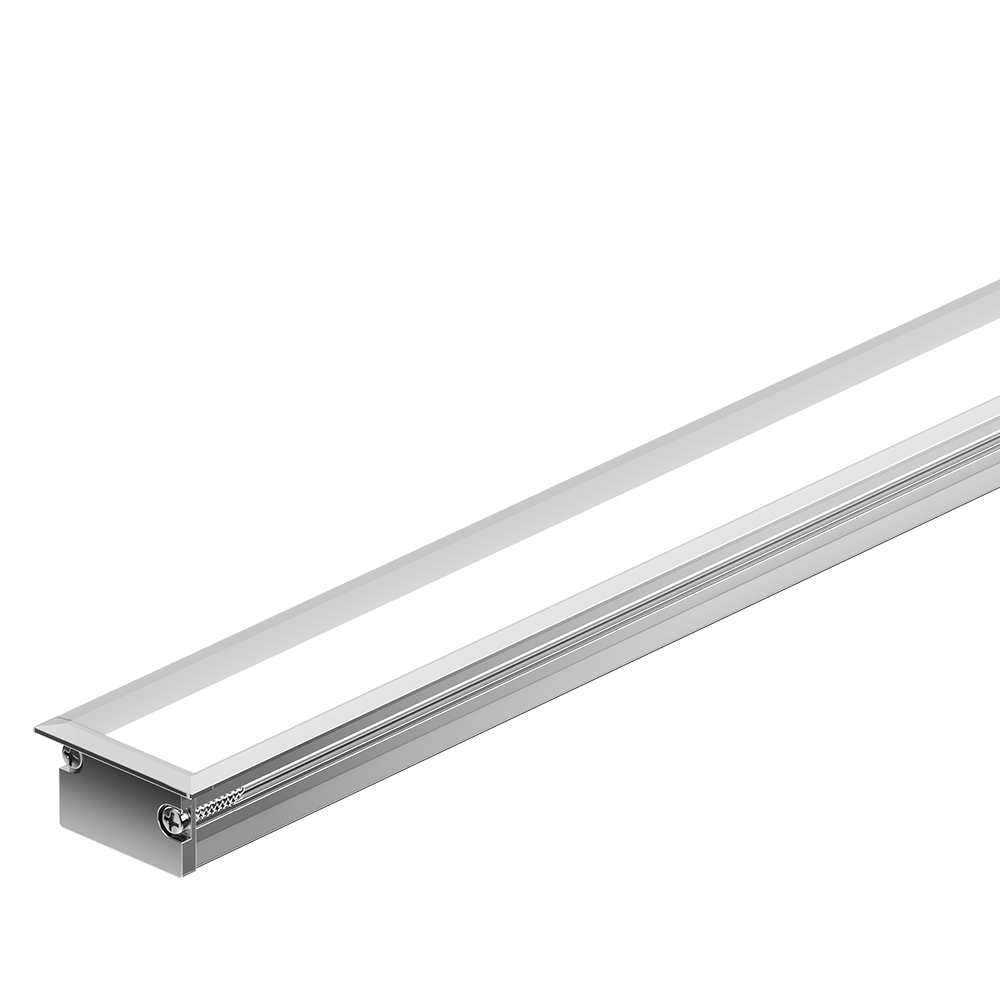

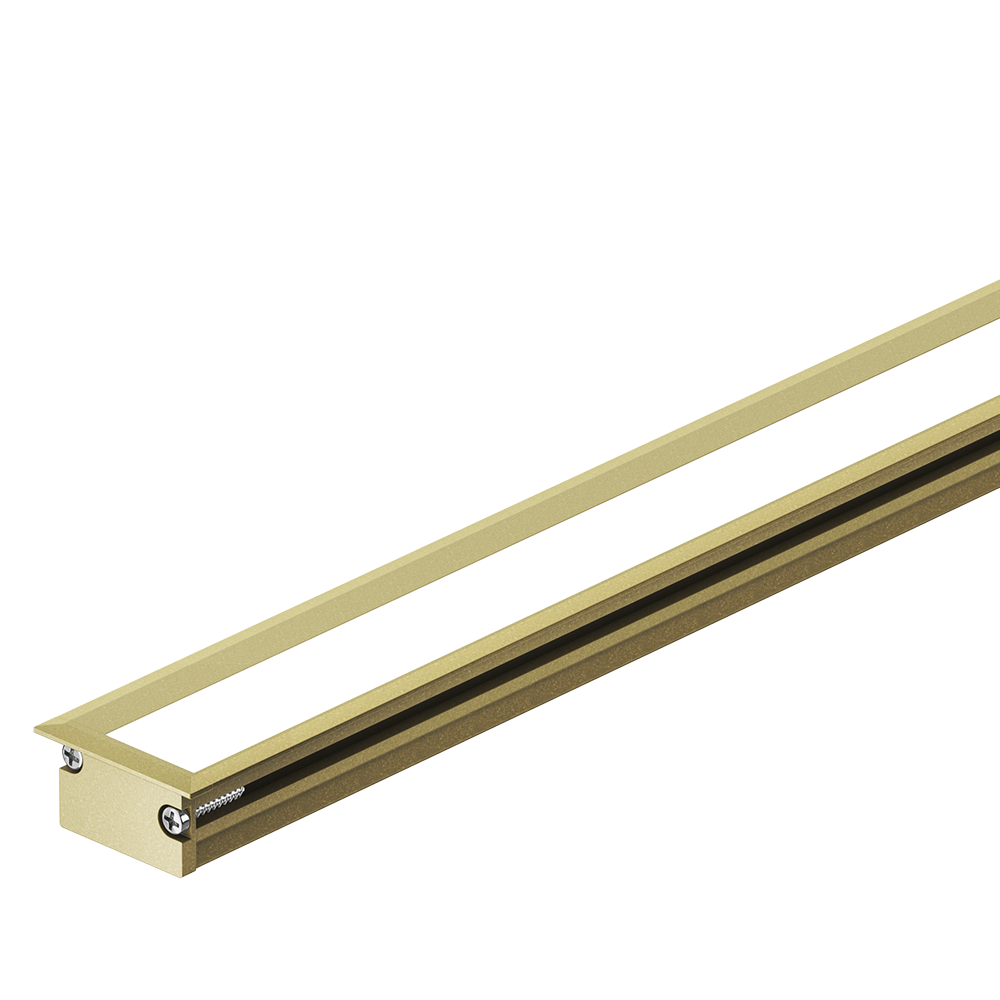

Extruded aluminum profile
