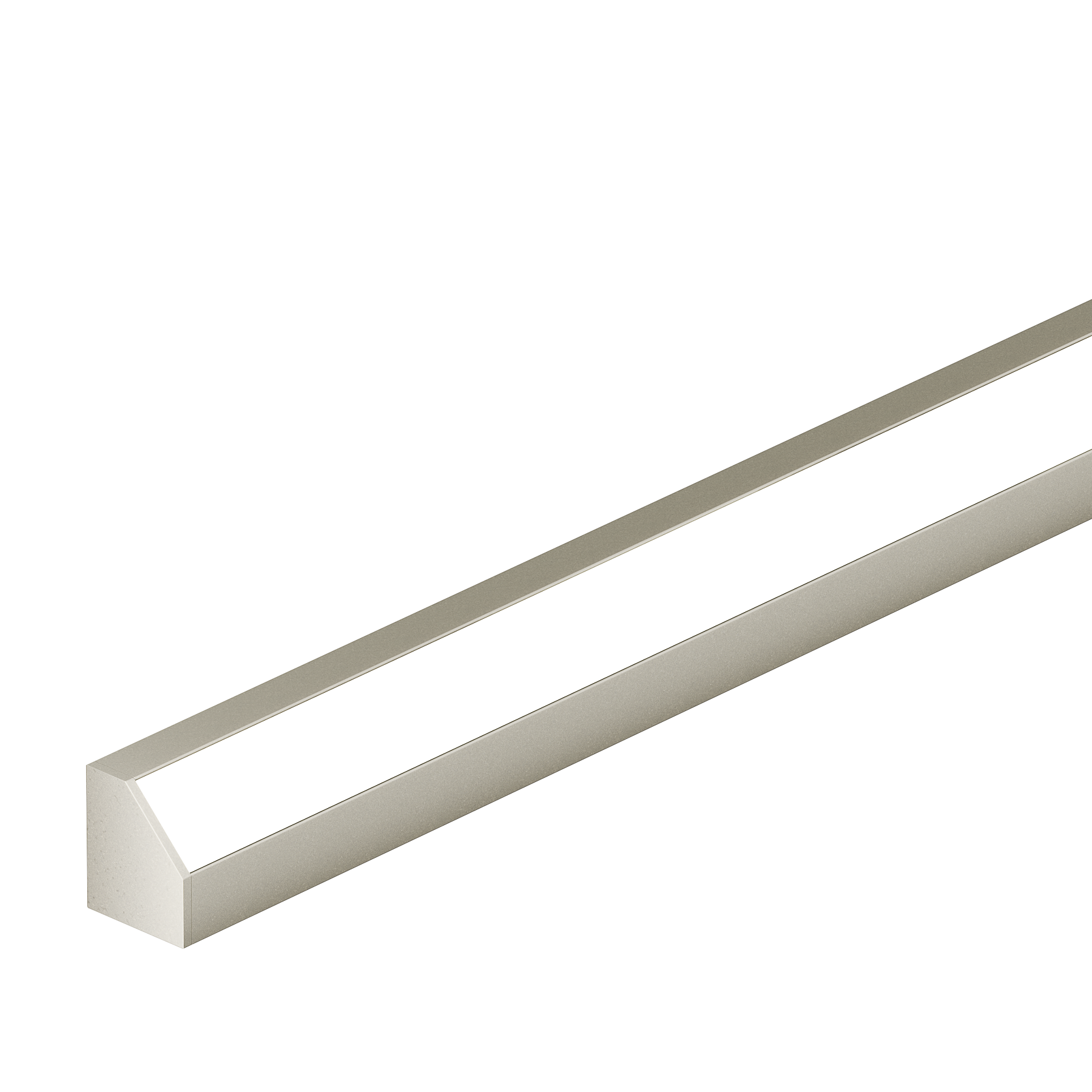

Myka 45 Wet – Static White

Surface Mount Wet Location Linear 24V System

IP68
Overview
Specifications

• 24VDC Class 2 and IP68 rated for wet locations, fixtures made to order up to 144”.Fixtures can be linked up to 48’ depending on output
• Suitable for undercabinet, millwork, direct view, vanity, architectural reveals, accent lighting and surface mount applications
• Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5)
• Dot free even illumination with frosted lens and high color quality outputs
• Class 2 listed for damp locations
• Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors

  • CCT: 2700K, 3000K, 3500K, 4000K
  • CRI: 95+
  • Output / ft: 144 lm/ft, 148 lm/ft, 200 lm/ft, 241 lm/ft, 267 lm/ft, 293 lm/ft, 428 lm/ft
  • Mounting: Surface
  • Input Voltage: Line Voltage
  • Color: Static White
  • Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 4.8 W/ft, 6.0 W/ft, 6.5 W/ft
  • Rating: IP68
  • Lens Aperture: 0.49 inch
  • Operating Temperature: 113 F, 122 F, 86 F, 95 F
  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Made In: Made in America
  • Warranty: 3 Years
  • Product Number: MK45VW
Learn more
Optic Arts

0704 Channel

Extruded aluminum profile
