Luminii

Cylinders

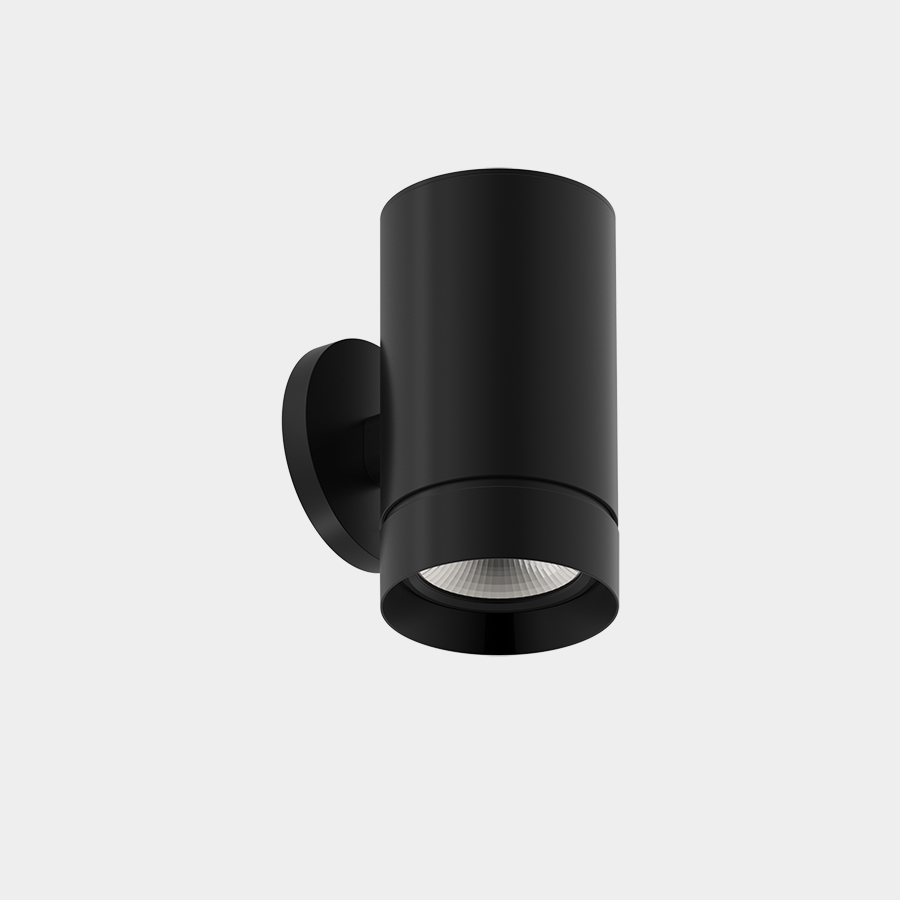

Leto 11 Wall Mount Wet

Wet Rated Wall Mounted Cylinder

Warm DimTunable WhiteWet
Overview
Specifications
  • Faceted and Smooth metal reflectors provide beam spreads between 10° to 80°.
  • Nine drivers selections available to cover wide range of applications.
  • Four output options available up to 2000 lumens.
  • 5 year warranty.
  • CCT: 2500K, 2700K, 3000K, 3500K, 4000K, 6500K
  • Output: 1000 lm, 1500 lm, 2000 lm, 700 lm
  • CRI: 90+
  • Function: Fixed
  • Mounting: Wall Mount
  • Shape: Round
  • Color: Static White, Tunable White, Warm Dim
  • Optics: 10°, 18°, 30°, 45°, 60°, 80°
  • Wattage: 14 W, 19.8 W, 6.1 W, 9.1 W
  • Dimming Protocol: 0-10 V, DALI, DMX, Phase
  • Rating: Wet
  • Height: 8.66 inch
  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Made In: Made in Canada
  • Warranty: 5 Years
  • Product Number: LET11W
Learn more
Specsheets
Install Guides
IES Files
Revit Files
Cross Reference Guide
Leto 11 Wall TW WD Wet Specsheet
1.67 MB
PDF
Leto 11 Wall Wet Specsheet
1.77 MB
PDF
Leto 11 11 5 Field Optic Change Guide
389.99 KB
PDF
Leto 11 11 5 Wall Mount Wet Install Guide
484.53 KB
PDF
Leto 11 W-S-10-35K-F18-DL-18.06.2024.ies
124.61 KB
IES
Leto 11 W-S-07-35K-F18-DL-18.06.2024.ies
124.47 KB
IES
Leto 11 W-S-10-WD1830-F18-DL-18.06.2024.ies
124.89 KB
IES
Leto 11 W-S-15-WD1830-F18-DL-18.06.2024.ies
124.37 KB
IES
Leto 11 W-S-15-TW2765-F18-DL-18.06.2024.ies
125.06 KB
IES
Leto 11 W-S-07-WD1830-F18-DL-18.06.2024.ies
125.34 KB
IES
Leto 11 W-S-13-TW2765-F18-DL-18.06.2024.ies
124.77 KB
IES
Leto 11 W-S-20-35K-F18-DL-18.06.2024.ies
124.54 KB
IES
Leto 11 W-S-15-35K-F18-DL-18.06.2024.ies
124.51 KB
IES
Lighting Luminii Leto 11 WM Wet.rfa
660 KB
RFA
Senso Part Number Reference
90.86 KB
PDF
