Luminii

Bendable

Kurba Medium

Field Bendable 24V System

Warm DimTunable WhitePixelRGB/RGBWIP68
Overview
Specifications

Kurba Medium is a dot free direct view, narrow profile, energy efficient and flexible LED strip suitable for outdoor wet locations capable of horizontal/side bends with a 2.5in bending radius. The silicone material offers excellent heat, weather, UV, and solvent resistance and is self cleaning which repels dust and dirt accumulation.

  • CCT: 18K - 30K, 2200K, 22K - 57K, 2400K, 2600K, 26K - 42K, 2700K, 3000K, 3500K, 4000K, 4200K, RGB26K, RGB27K, RGB30K, RGB40K
  • CRI: 80+
  • Type: Bendable
  • Output / ft: 113 lm/ft, 114 lm/ft, 119 lm/ft, 120 lm/ft, 122 lm/ft, 21 lm/ft, 59 lm/ft
  • Mounting: Recessed, Surface
  • Bend Type: Horizontal
  • Input Voltage: Low Voltage
  • Color: Pixel, RGB/RGBW, Static White, Tunable White, Warm Dim
  • Optics: Black Lens
  • Wattage / ft: 3.6 W/ft, 4.5 W/ft
  • Rating: IP68
  • Lens Aperture: 0.45 inch
  • Size: 0.45 in
  • Height: 0.83 in
  • Lens: Black Lens, Silicone Frosted
  • Operating Temperature: -40°F to 131°F

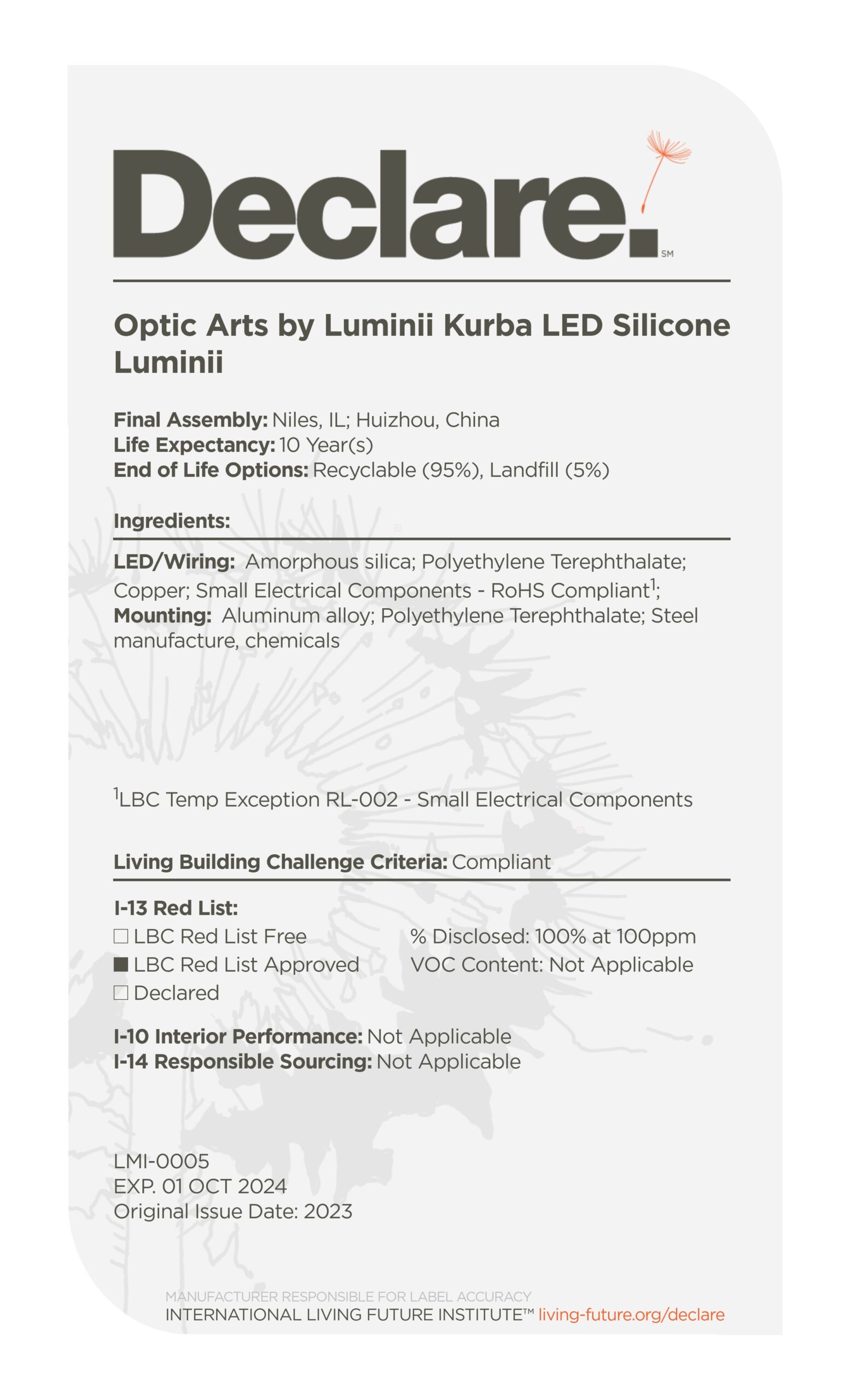

  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Warranty: 3 Years
  • Product Number: KBM
Learn more
Specsheets
Install Guides
Cross Reference Guide
IES Files
Kurba Medium H Static White Specsheet
2.73 MB
PDF
Kurba Medium H Dynamic Color Specsheet
4.02 MB
PDF
Kurba RGB RGBW Install Guide
1.96 MB
PDF
Kurba Pixel Install Guide
2.15 MB
PDF
Kurba Tunable White Install Guide
1.96 MB
PDF
Kurba Static White Warm Dim Install Guide
2.04 MB
PDF
Kurba Cross Reference
298.07 KB
PDF
Kurba Medium IES.zip
4.04 KB
ZIP
