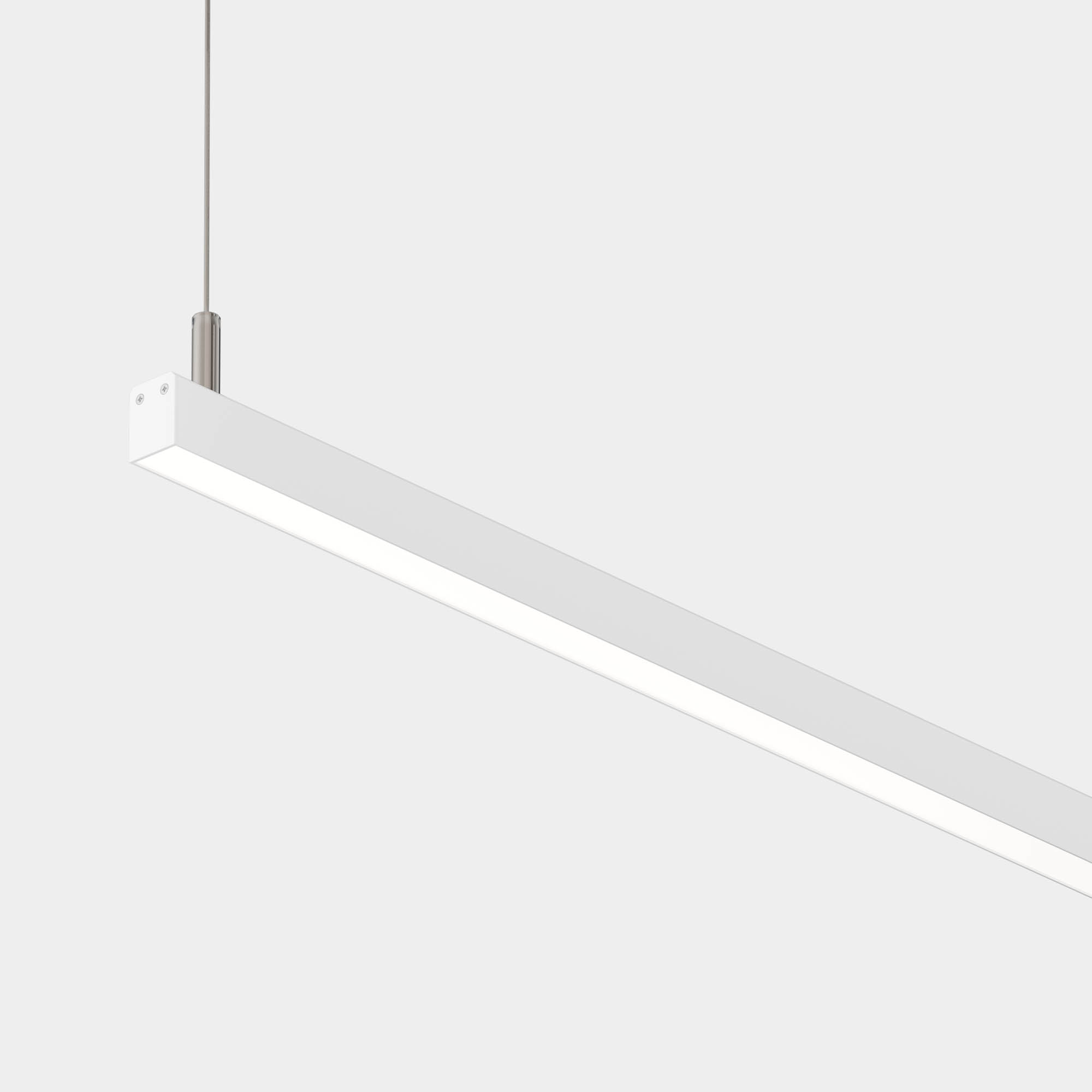

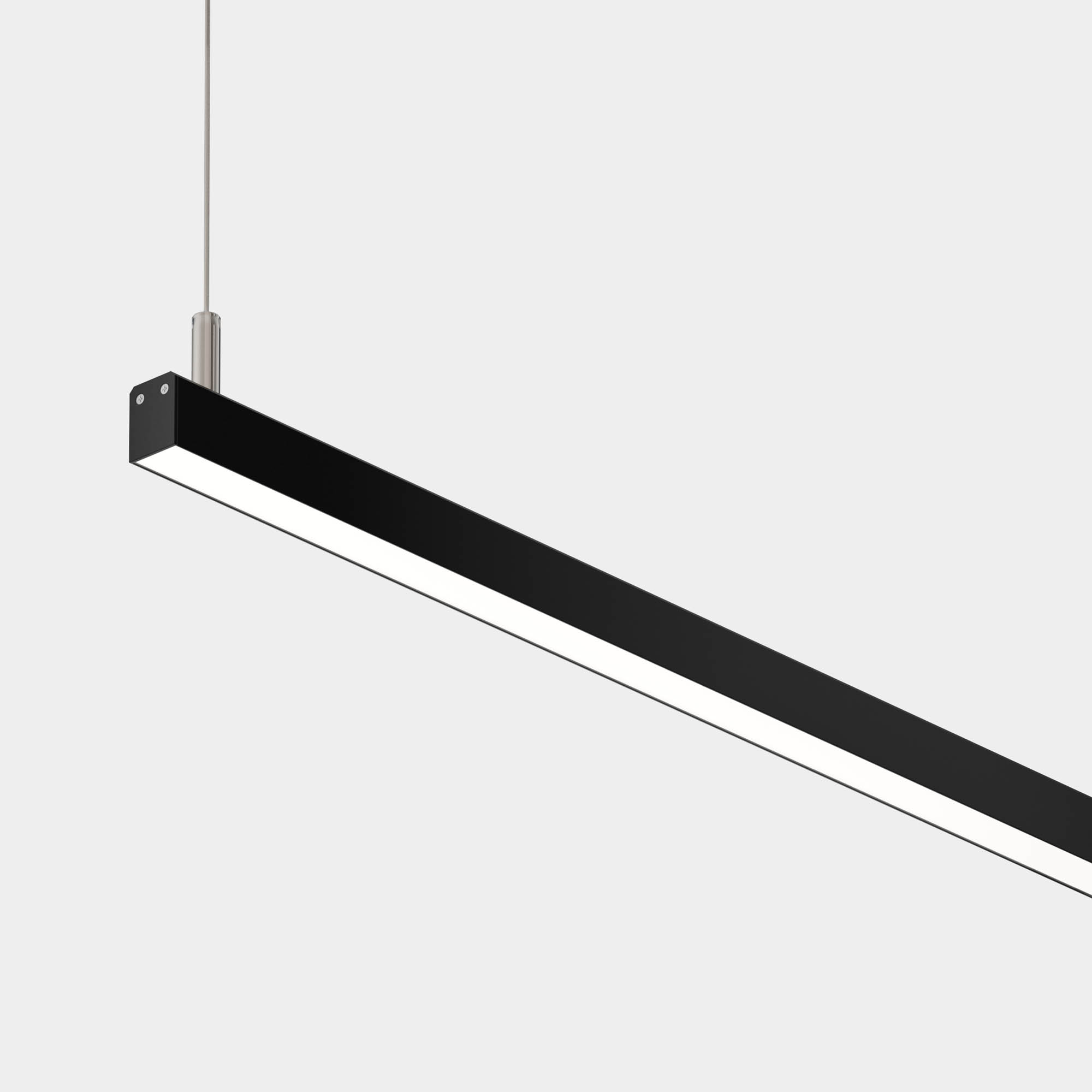

Kurat – Dynamic Color

Suspended Linear 24V System

Overview

Specifications

24VDC Class 2 fixtures made to order up to 116”.
Class 2 listed for damp locations
Dot free even illumination
Available with a remote power supply or an integral power supply option mounted in the canopy.
Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
Average Life (L70): 50,000hrs
7 year warranty
Tunable White allows individual control of CCT and output, can be paired with Vintage Dim power supply for warm dim effect
Warm Dim follows the incandescent dimming curve and is compatible with MLV, ELV, and Incandescent dimmers.
RGB offers balanced output across the color gamut and a true white with RGBW
Smart Pixel allows for infinite color combinations with cascading and chasing effects

CCT: 19K - 27K, 19K - 35K, 27K - 65K, RGB30K
CRI: 98
Output / ft: 104 lm/ft, 105 lm/ft, 127 lm/ft, 172 lm/ft, 209 lm/ft, 251 lm/ft, 84 lm/ft
Mounting: Suspended
Input Voltage: Low Voltage
Wattage / ft: 4 W/ft, 4.5 W/ft, 4.6 W/ft, 5.4 W/ft, 5.6 W/ft, 5.7 W/ft
Lens Aperture: 0.77 inch
Operating Temperature: -5°F to 125°F
Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 7 years
Color: Pixel, RGB/RGBW, Tunable White, Warm Dim
Type: Linear Fixture
Rating: Damp
Size: 0.77 in
Height: 0.49 in
Lens: Frosted
Product Number: KUR
