Luminii

Linear Luminaires

Kendo S Recessed Wet – Static White

Recessed Wet Location Linear 24V System

IP68
Overview
Specifications
  • 24VDC Class 2 fixtures made to order up to 144 inches. Fixtures can be linked up to 35 feet depending on output
  • Suitable for undercabinet, millwork ground recessed, and ceiling recessed applications
  • Approved for closet/storage space installation per NEC 410.16(A)(3) and 410.16(C)(5)
  • Dot free even illumination achievable in SOHD & VHO with frosted lens
  • Vibrant colors with R9 values up to 98
  • Single micro binned LEDs +/- 30 CCT
  • Dims with minimal color shift
  • Class 2 listed for damp locations
  • Proprietary strong bond solder method handles up to 50lbs of torque on wire leads and connectors
  • CCT: 2700K, 3000K, 3500K, 4000K
  • CRI: 95+
  • Output / ft: 160 lm/ft, 164 lm/ft, 222 lm/ft, 267 lm/ft, 296 lm/ft, 325 lm/ft, 475 lm/ft, 601 lm/ft
  • Mounting: Recessed
  • Input Voltage: Line Voltage
  • Color: Static White
  • Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 4.8 W/ft, 6.0 W/ft, 6.5 W/ft, 7.5 W/ft
  • Rating: IP68
  • Lens Aperture: 0.47 inch
  • Operating Temperature: 113 F, 122 F, 77 F, 86 F, 95 F

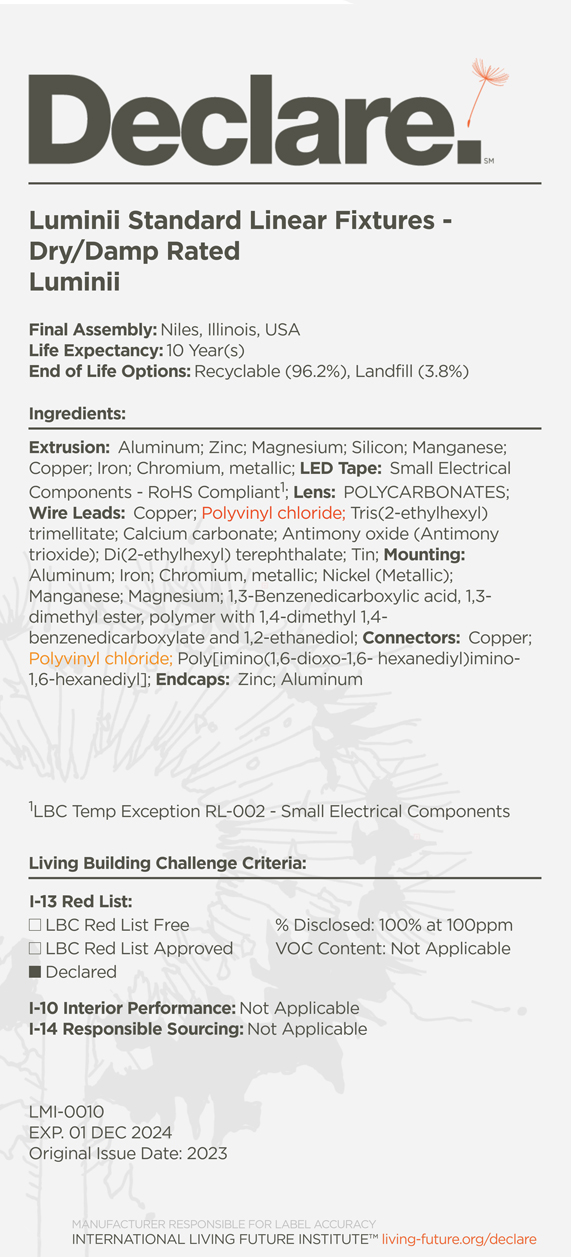

  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Made In: Made in America
  • Warranty: 3 Years
  • Product Number: KRSW
Learn more
Specsheets
Install Guides
IES Files
Revit Files
Cross Reference Guide
DWG CAD
Kendo S Recessed Wet Static White T2
9.47 MB
PDF
Kendo S Recessed Wet Instructions
510.36 KB
PDF
KRSW-48-30K-LL72VHO-M.IES
6.62 KB
IES
KSW-48-30K-LL72VHO-F.IES
1.6 KB
IES
KSW-48-30K-LL72VHO-C.IES
1.61 KB
IES
Lighting Luminii Kendo S Recessed.rfa
556 KB
RFA
Luminii Cross Reference Luminii Optic Arts
2.6 MB
PDF
KSR 2D Dimensions.dwg
802.29 KB
DWG
