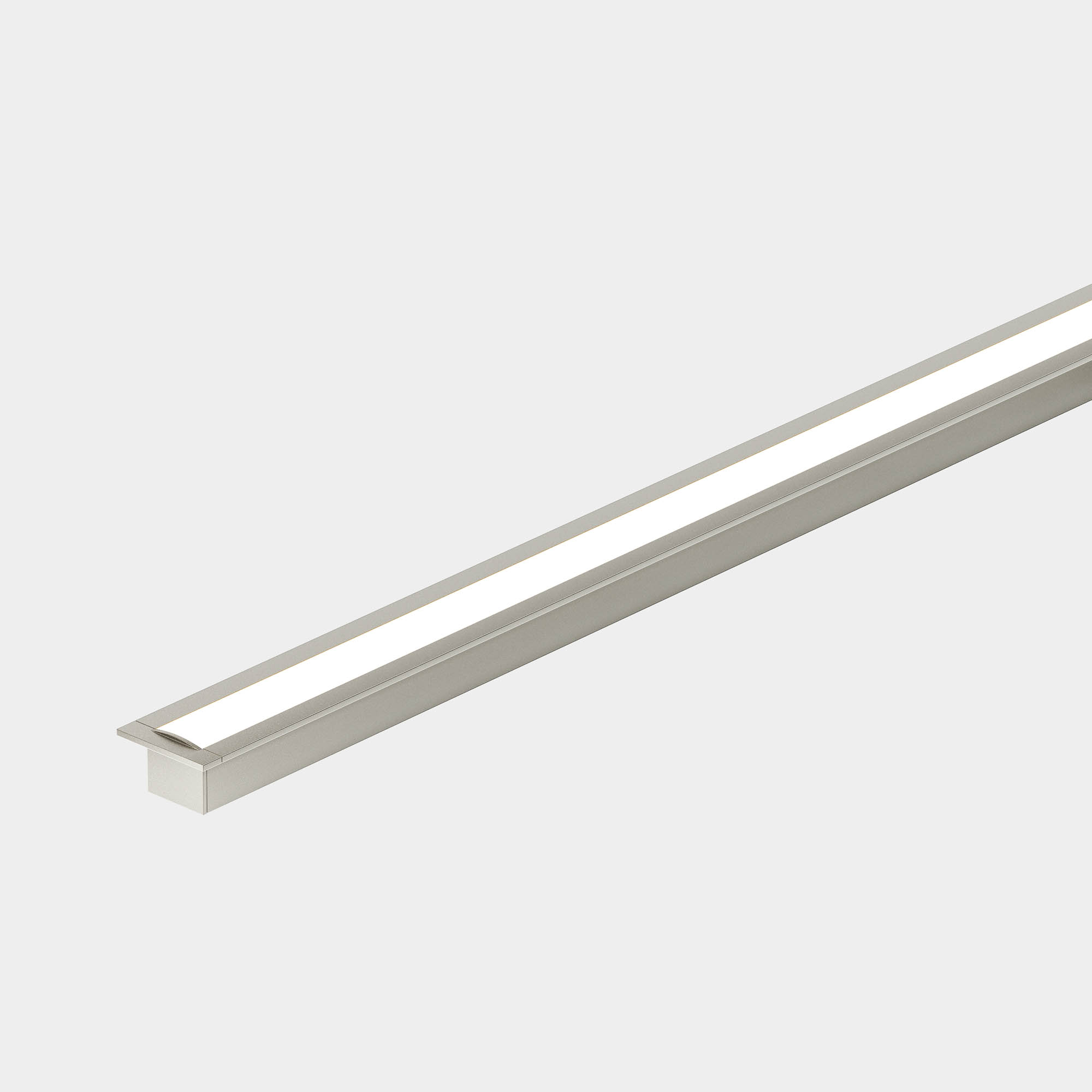

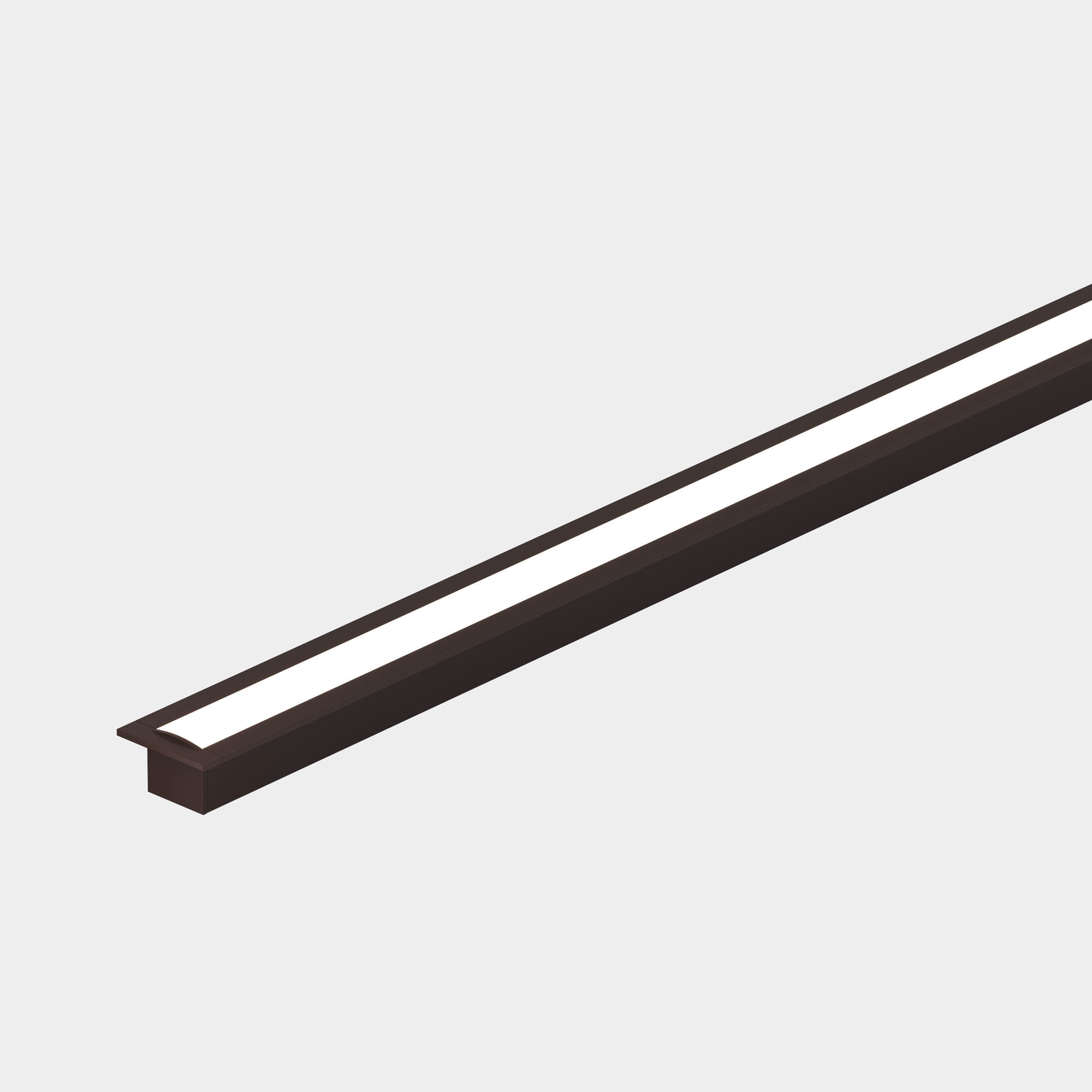

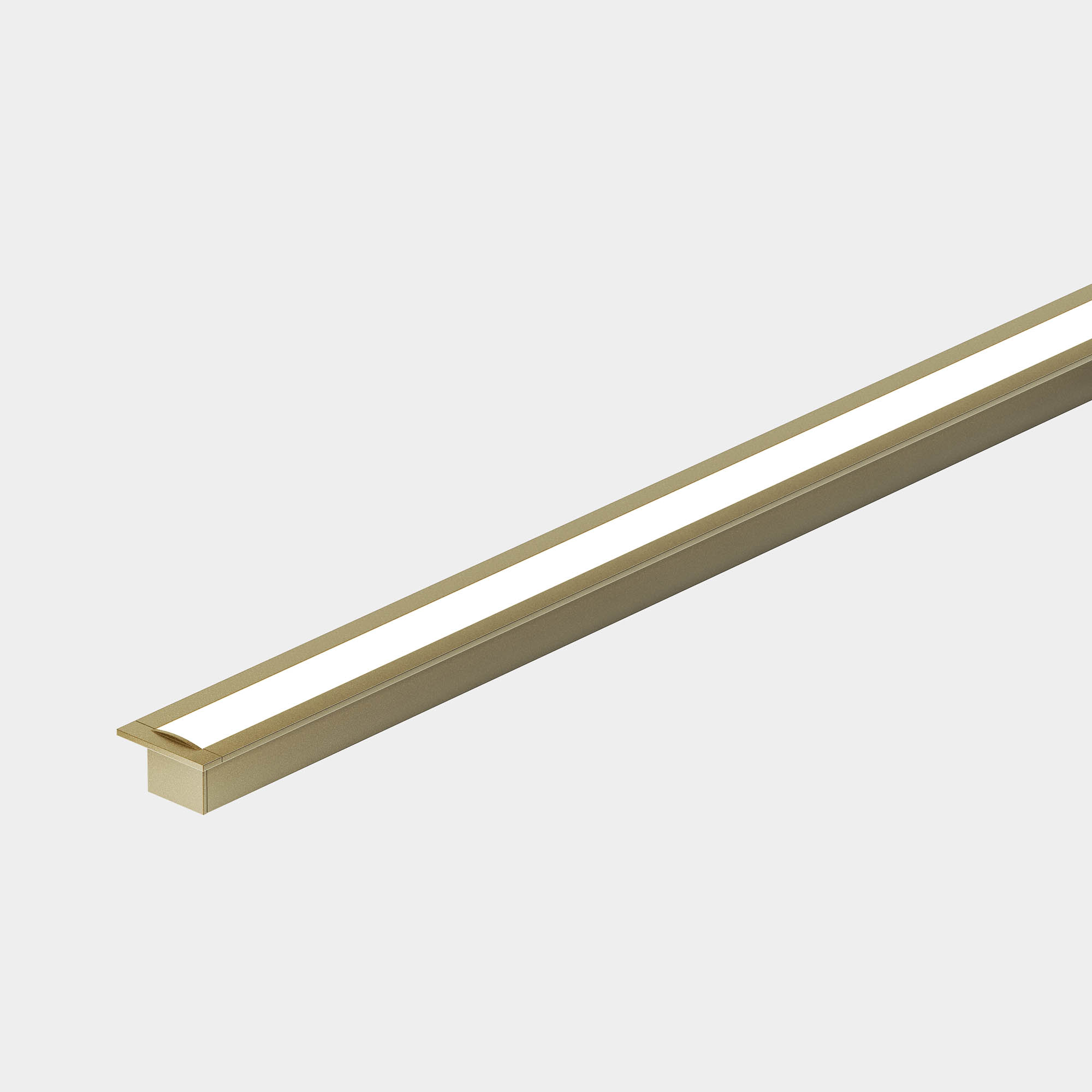

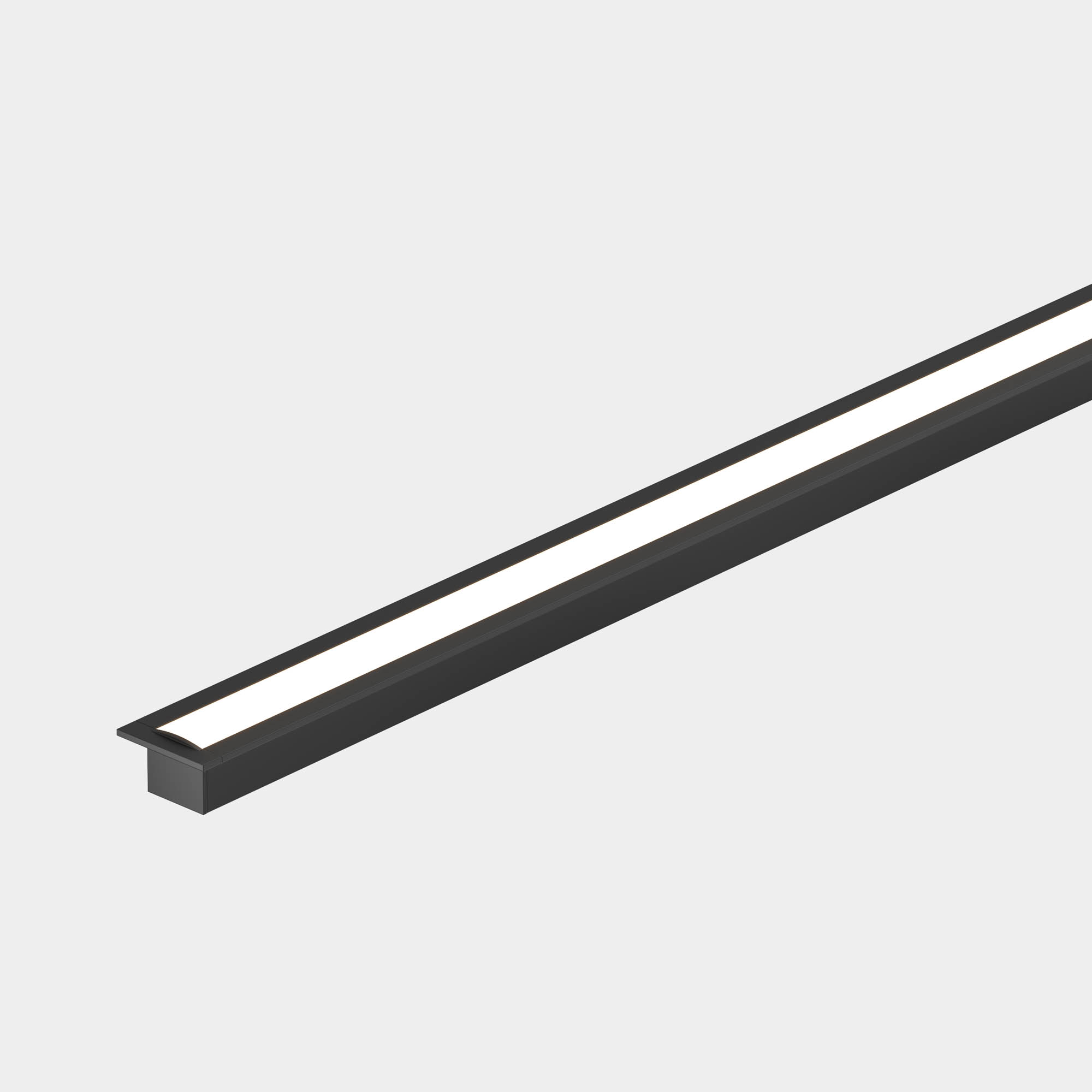

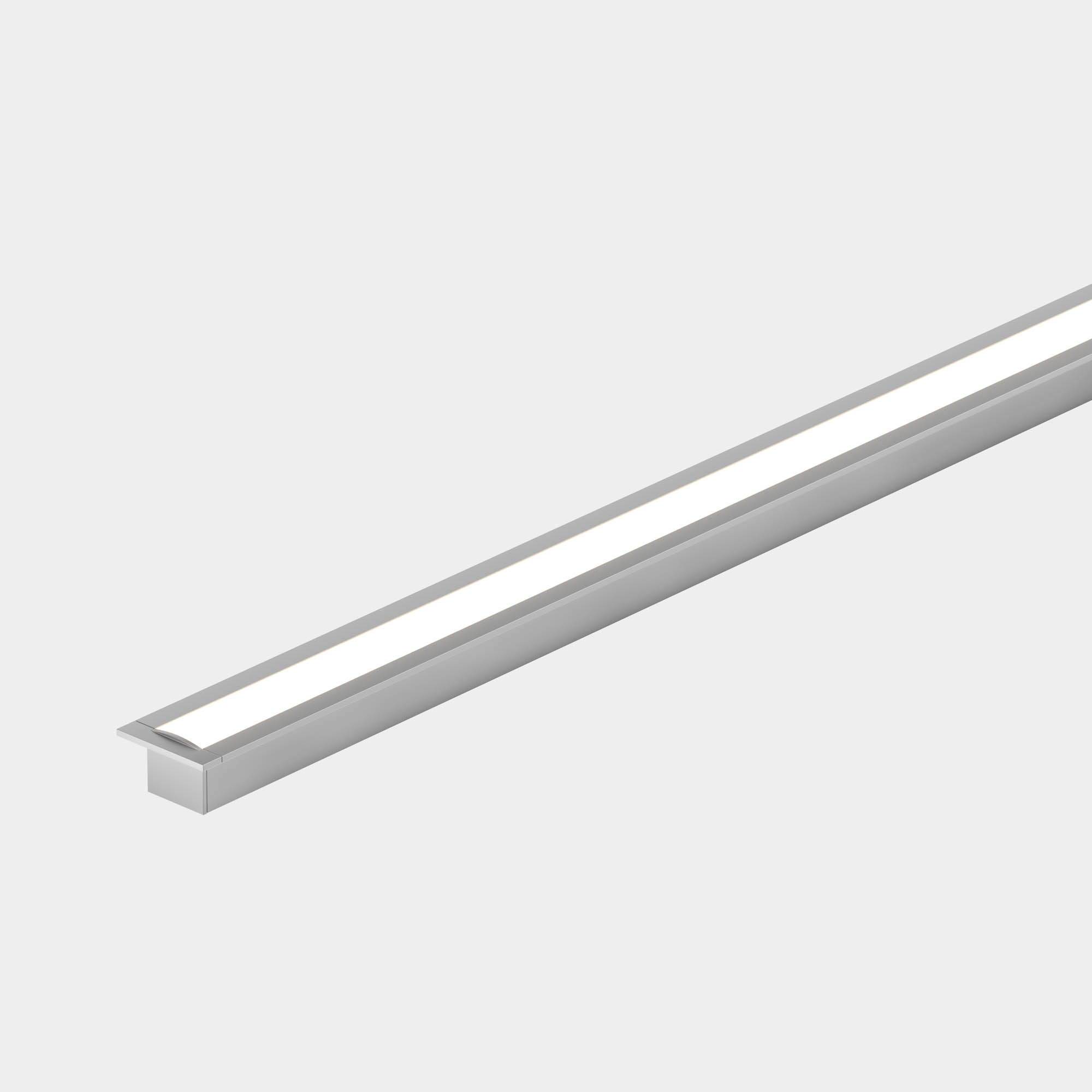

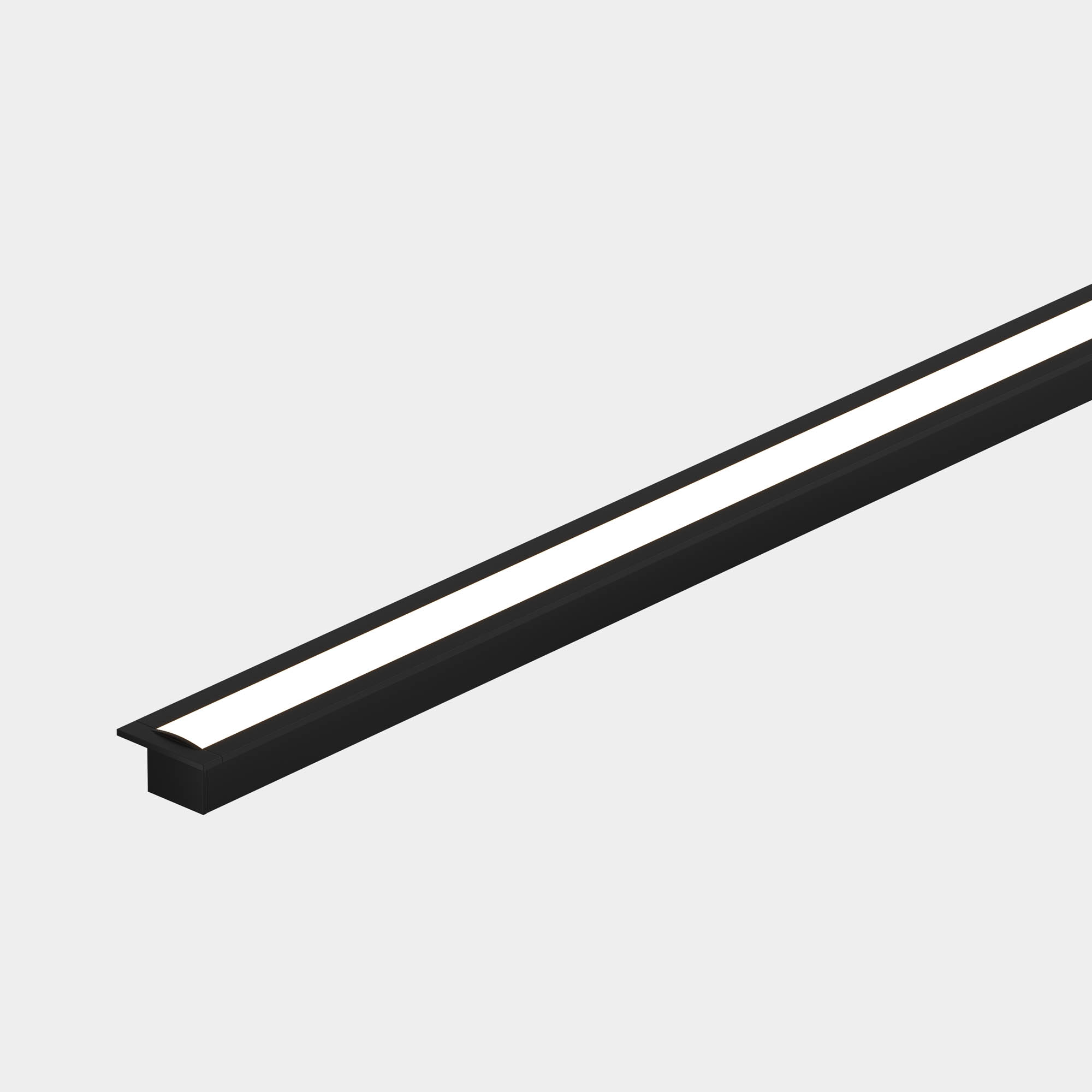

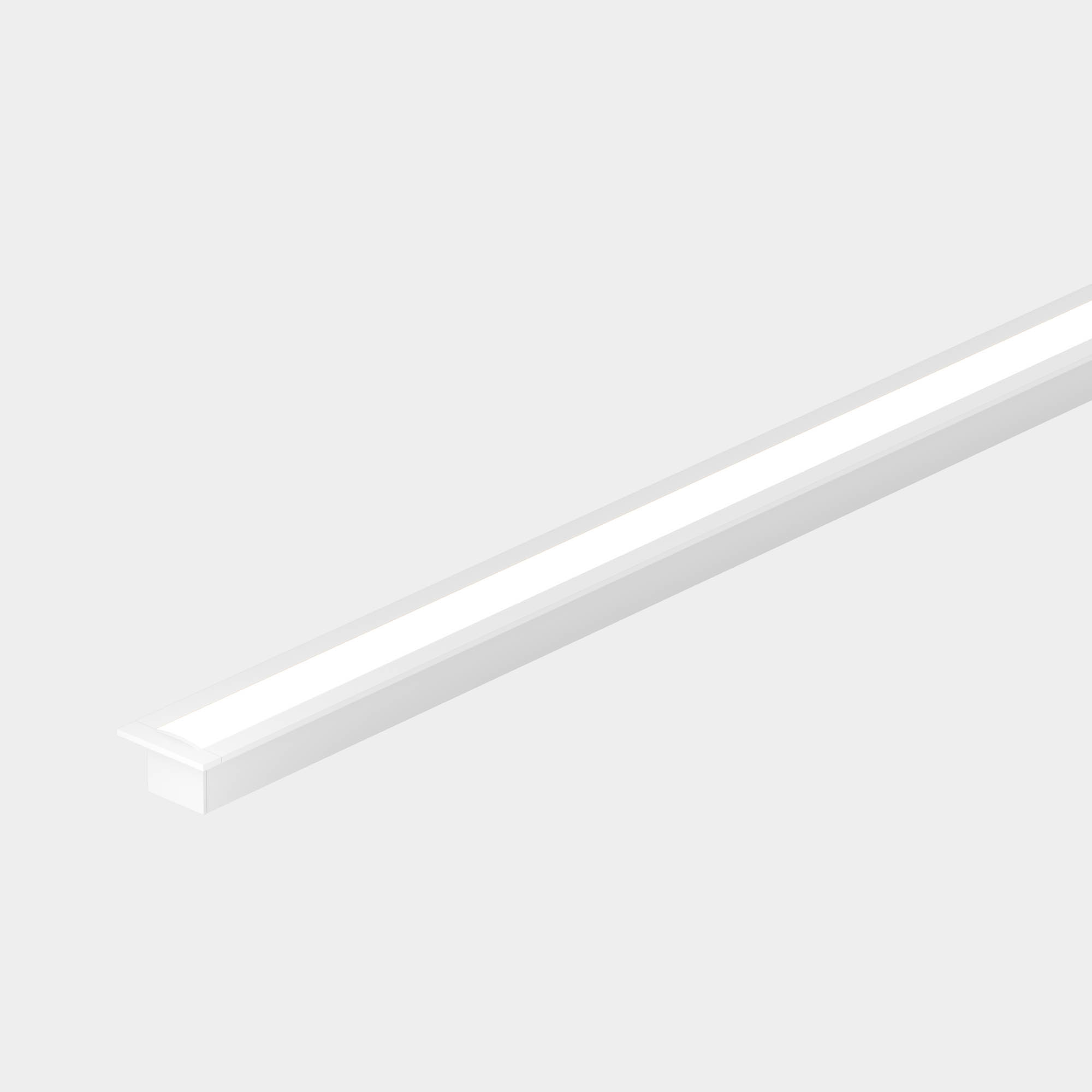

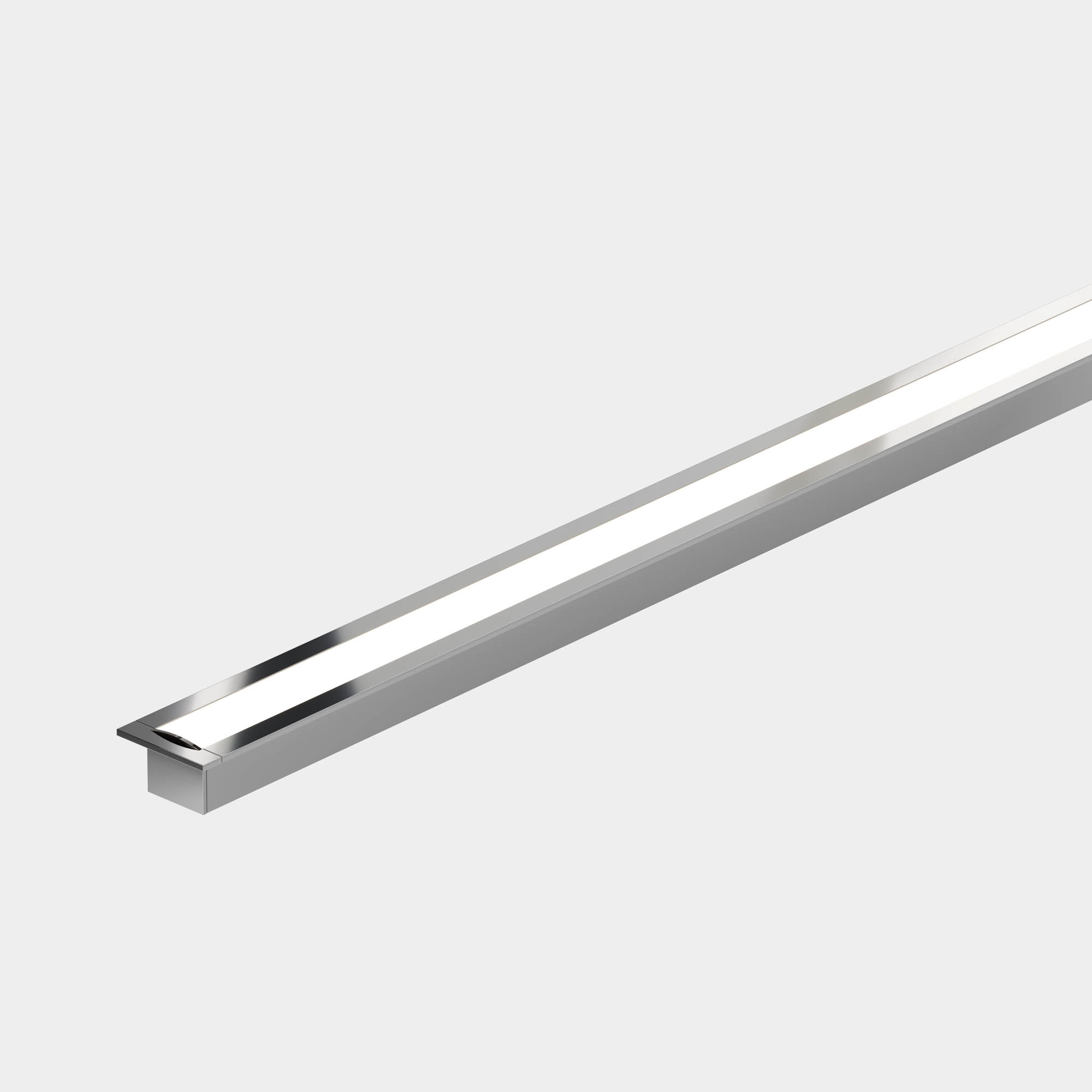

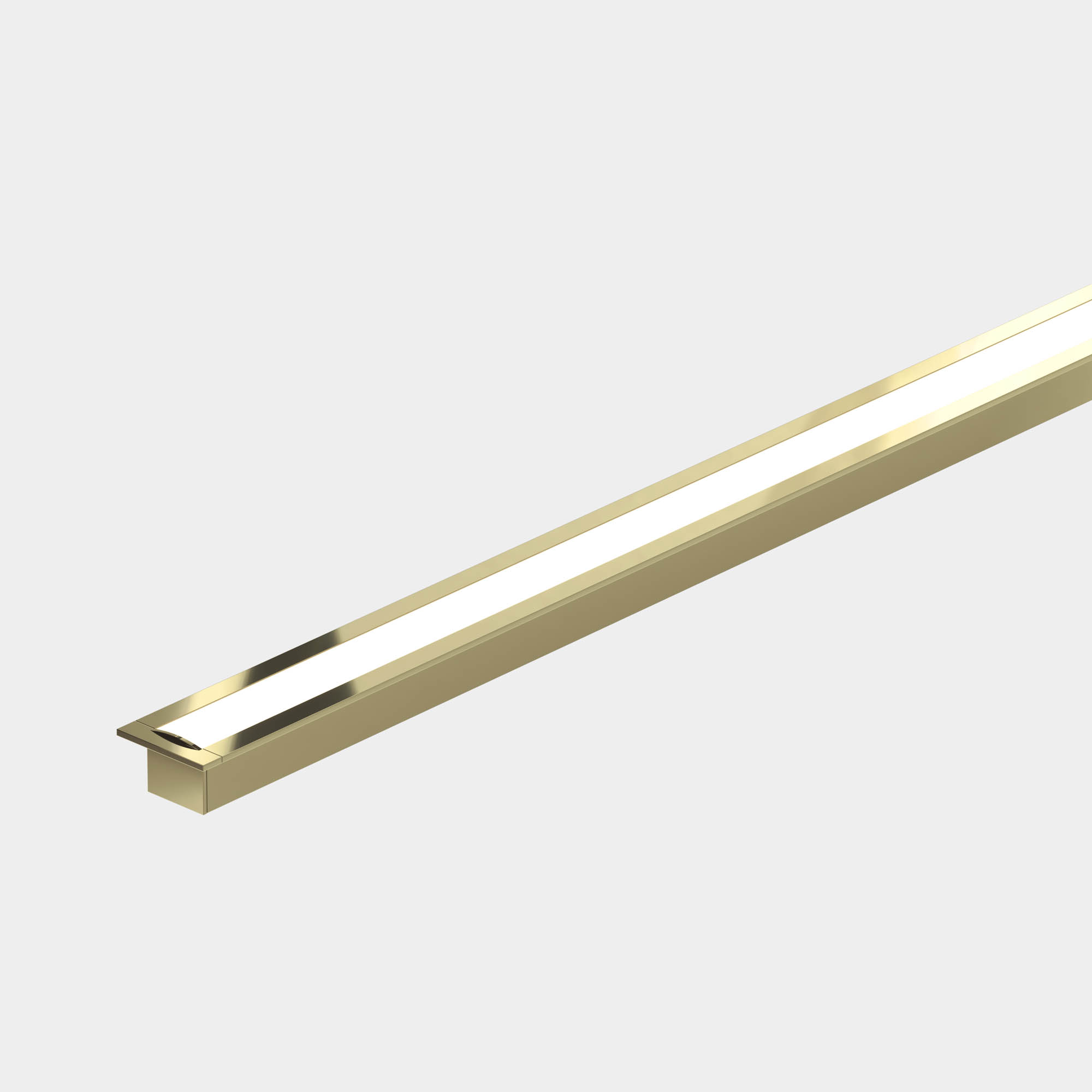

Kendo M Recessed Wet - Dynamic Color

Kendo M Recessed Wet – Dynamic Color

Recessed Wet Location Linear 24V System

Overview

Specifications

24VDC Class 2 and IP68 rated for wet locations, fixtures made to order up to 144”. Fixtures can be linked up to 32’ depending on output
Suitable for undercabinet, millwork recessed, and surface mount applications
Dot free even illumination with frosted lens
Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors.
Average Life (L70): 50,000hrs
3 year warranty
WD68 Warm Dim follows the incandescent dimming curve and is compatible with MLV, ELV, and Incandescent dimmers
Tunable White allows individual control of CCT and output, can be paired with Vintage Dim power supply for warm dim effect
RGB offers balanced output across the color gamut and a true white with RGBW
Smart Pixel allows for infinite color combinations with cascading and chasing effects

CCT: 22K - 32K, 22K - 46K, RGB40K
CRI: 98
Output / ft: 101 lm/ft, 126 lm/ft, 127 lm/ft, 154 lm/ft, 186 lm/ft, 199 lm/ft, 209 lm/ft, 211 lm/ft, 235 lm/ft
Mounting: Recessed
Type: Linear Fixture
Input Voltage: Low Voltage
Color: Pixel, RGB/RGBW, Tunable White, Warm Dim
Wattage / ft: 4.0 W/ft, 4.5 W/ft, 4.6 W/ft, 5.4 W/ft, 5.6 W/ft, 5.7 W/ft, 7.6 W/ft, 8.3 W/ft
Rating: IP68
Lens Aperture: 0.46 inch
Size: 0.69 in
Height: 0.63 in
Lens: Clear, Frosted, Graze
Operating Temperature: -15°F to 125°F

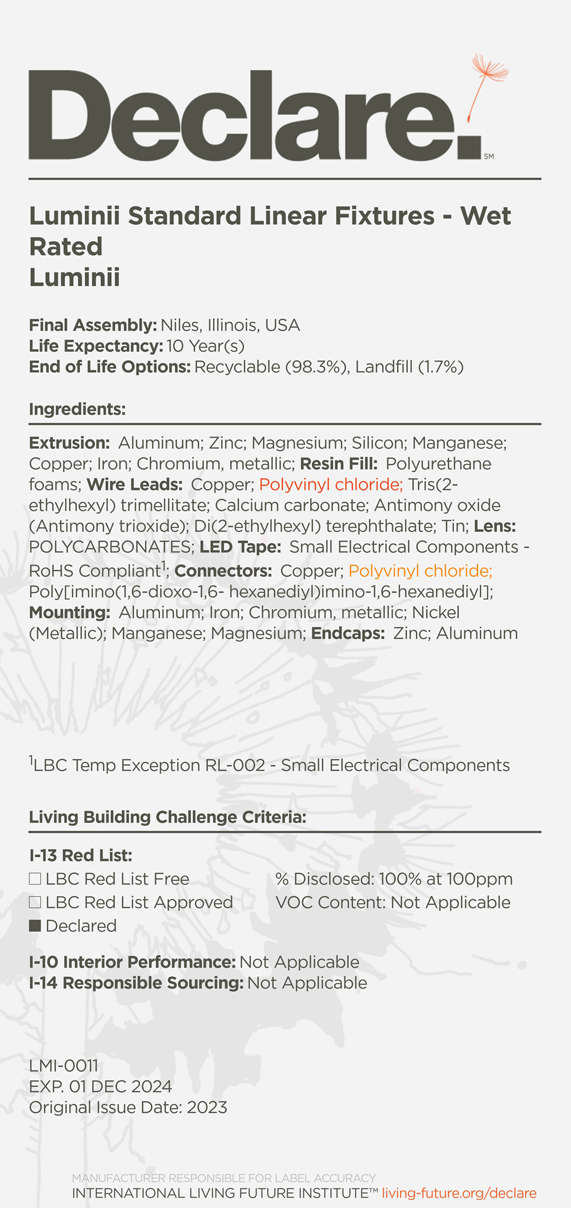

Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 3 Years
Product Number: KRMW
