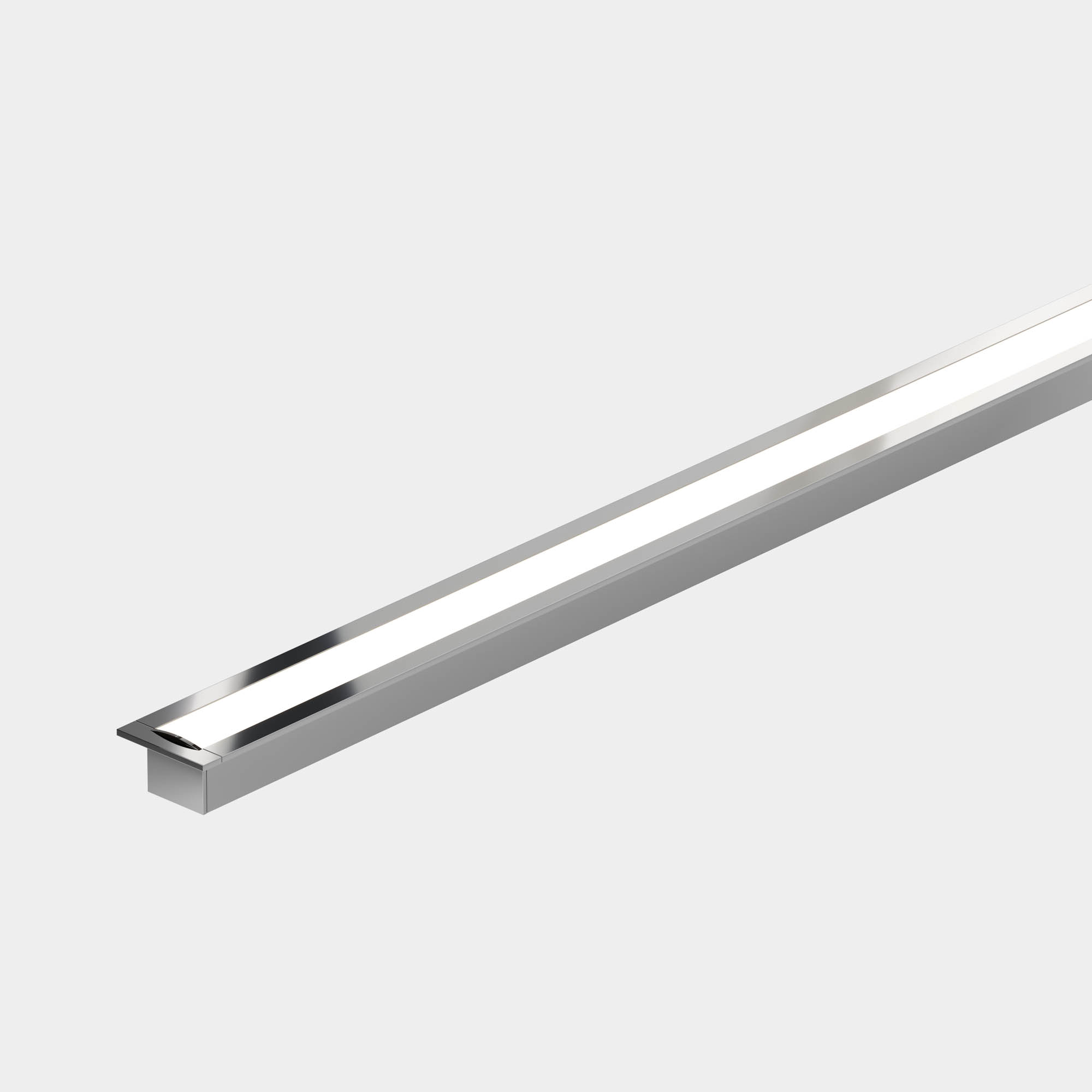

Kendo M Recessed - Static White

Kendo M Recessed – Static White

Recessed Linear 24V System

Overview

Specifications

24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 48’ depending on output
Suitable for millwork, architectural reveals, accent lighting and recessed applications
Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7W/ft or less
Class 2 listed for damp locations
Dot free even illumination with frosted lens
Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
High Color Quality options offer premium quality and vibrant colors with R9 values up to 97
High Efficacy options offer best in class output and efficacy with over 810 lm/ft and up to 115 lm/W
Average Life (L70): 50,000hrs
7 year warranty

CCT: 1900K, 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K, 4100K
CRI: 98
Output / ft: 217 lm/ft, 222 lm/ft, 300 lm/ft, 361 lm/ft, 401 lm/ft, 439 lm/ft, 643 lm/ft, 813 lm/ft
Mounting: Recessed
Type: Linear Fixture
Input Voltage: Low Voltage
Color: Static White
Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 4.8 W/ft, 6.0 W/ft, 6.5 W/ft, 7.5 W/ft
Rating: Damp
Lens Aperture: 0.46 inch
Size: 0.69 in
Height: 0.63 in
Lens: Clear, Flat Frosted, Frosted, Graze, Half Frosted
Operating Temperature: -5°F to 125°F
Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 7 years
Product Number: KRM
