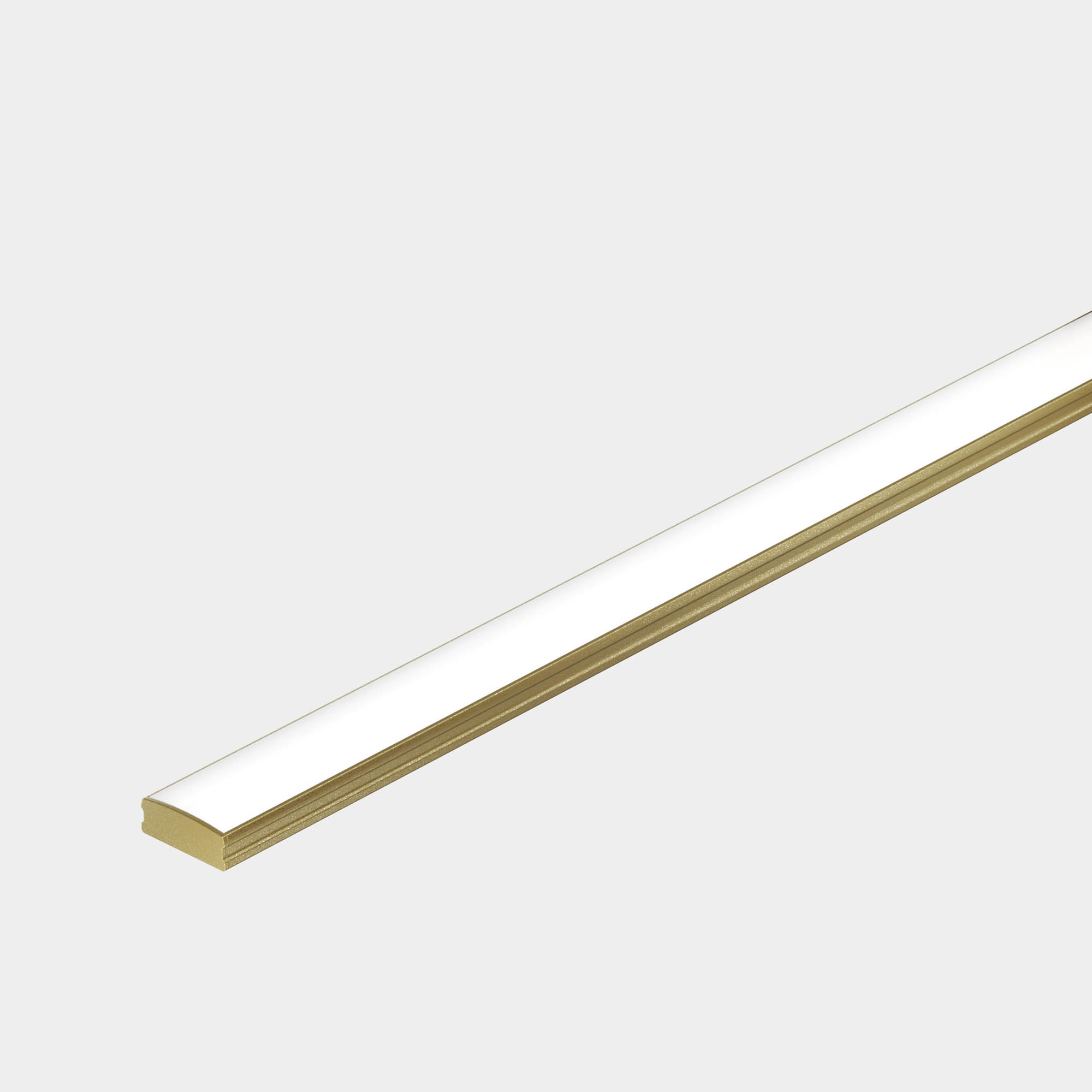

Kendo L Surface - Dynamic Color

Kendo L Surface – Dynamic Color

Surface Mount Linear 24V System

Overview

Specifications

24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 30’ depending on output
Suitable for undercabinet, cove, architectural reveals, millwork, accent lighting, direct view, and surface mount applications
Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7W/ft or less
Class two listed for damp locations.
Dot free even illumination with frosted lens
Average Life (L70): 50,000hrs
7 year warranty
Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors.
Warm Dim follows the incandescent dimming curve and is compatible with MLV, ELV, and Incandescent dimmers.
Tunable White allows individual control of CCT and output, can be paired with Vintage Dim power supply for warm dim effect
RGB offers balanced output across the color gamut and a true white with RGBW
Smart Pixel allows for infinite color combinations with cascading and chasing effects

CCT: 19K - 27K, 19K - 35K, 27K - 65K, RGB30K
CRI: 98
Output / ft: 137 lm/ft, 171 lm/ft, 172 lm/ft, 208 lm/ft, 251 lm/ft, 285 lm/ft, 534 lm/ft, 553 lm/ft, 699 lm/ft
Mounting: Surface
Type: Linear Fixture
Input Voltage: Low Voltage
Color: Pixel, RGB/RGBW, Tunable White, Warm Dim
Wattage / ft: 10.1 W/ft, 4.0 W/ft, 4.5 W/ft, 5.7 W/ft, 7.3 W/ft, 7.6 W/ft, 8.3 W/ft, 9.4 W/ft
Rating: Damp
Lens Aperture: 0.62 inch
Size: 0.83 in
Height: 0.30 in
Lens: Clear, Frosted, Half Frosted
Operating Temperature: -5°F to 125°F

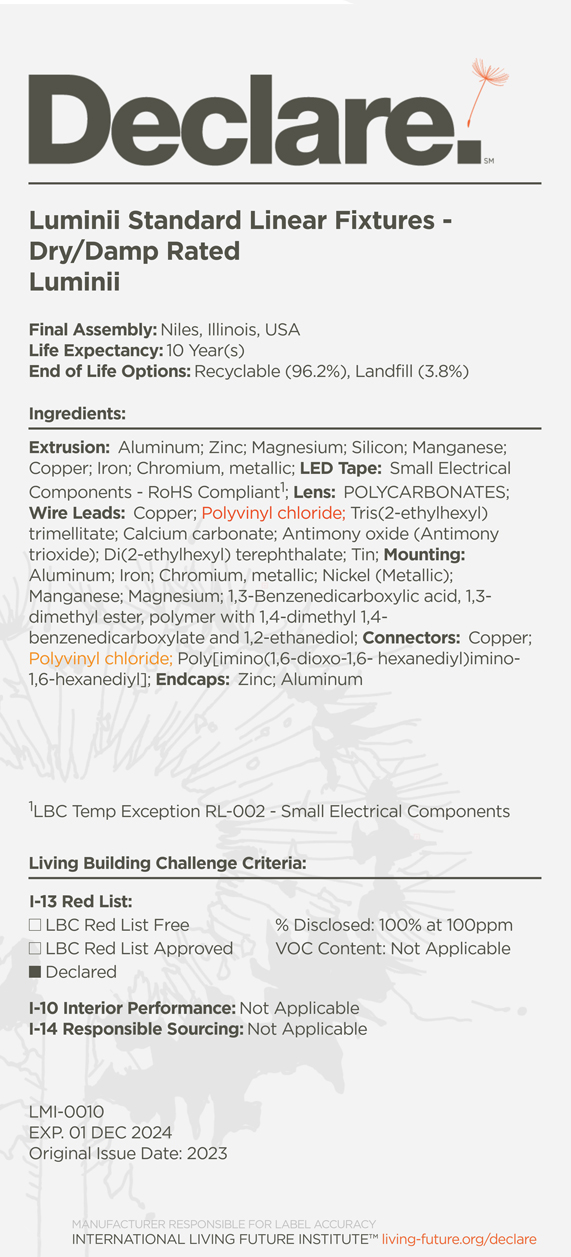

Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 7 years
Product Number: KL
