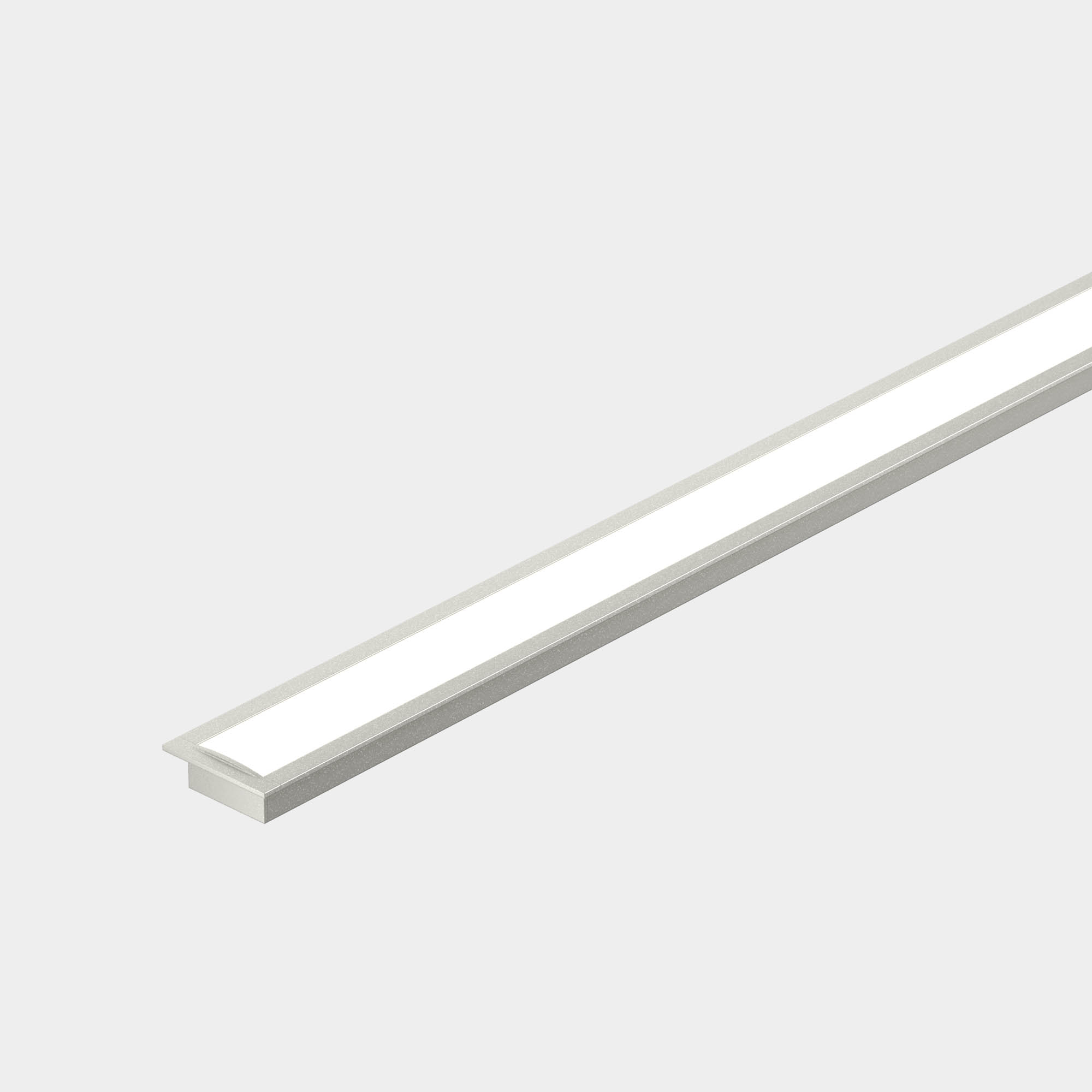

Kendo L Recessed Wet - Static White

Kendo L Recessed Wet – Static White

Recessed Wet Location Linear 24V System

Overview

Specifications

24VDC Class 2 fixtures made to order up to 144 inches. Fixtures can be linked up to 16 feet depending on output
Suitable for undercabinet, millwork ground recessed, and ceiling recessed applications
Approved for closet/storage space installation per NEC 410.16(A)(3) and 410.16(C)(5)
Dot free even illumination achievable with frosted lens
Vibrant colors with R9 values up to98
Single micro binned LEDs +/- 30 CCT Dims with minimal color shift
Class 2 listed for wet locations
Proprietary strong bond solder method handles up to 50lbs of torque on wire leads and connectors

CCT: 2700K, 3000K, 3500K, 4000K
CRI: 95+
Output / ft: 177 lm/ft, 246 lm/ft, 328 lm/ft, 447 lm/ft, 526 lm/ft, 666 lm/ft
Mounting: Recessed
Input Voltage: Line Voltage
Color: Static White
Wattage / ft: 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 6.5 W/ft, 7.3 W/ft, 7.5 W/ft
Rating: IP68
Lens Aperture: 0.62 inch
Operating Temperature: 122 F
Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 3 Years
Product Number: KRLW
