Luminii

Linear Luminaires

Katana IP

IP rated linear LED

Tunable WhiteRGB/RGBW
Overview
Specifications

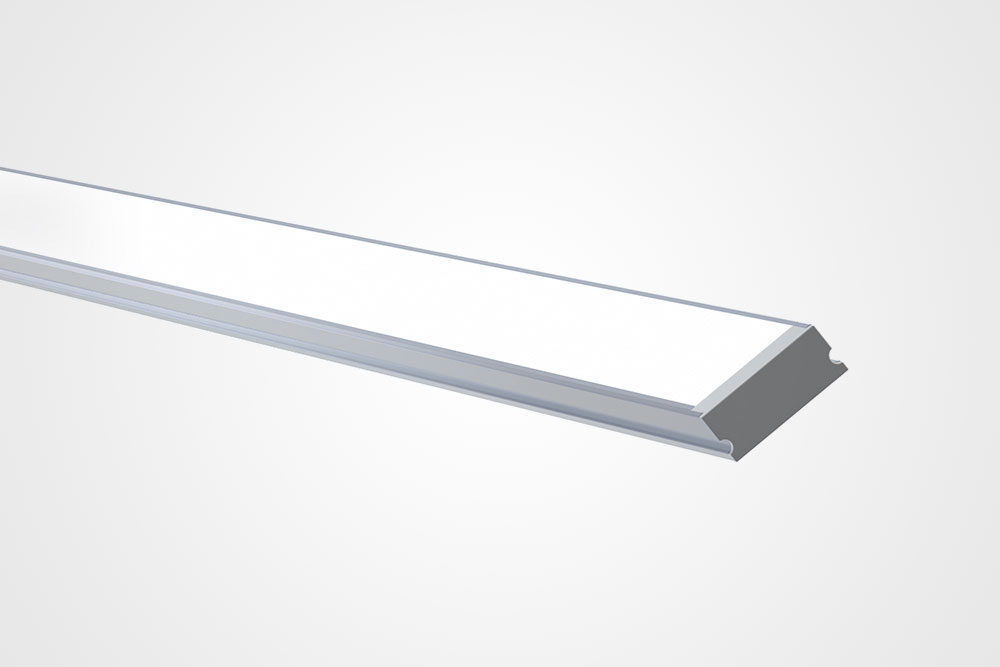

The Katana IP is designed for applications where your space is exposed to wet conditions. Our LED encapsulation process ensures a long lasting, vandal resistant seal with hard resin. With many options available, it is highly modular, versatile and easy to install.

  • CCT: 2200K, 2500K, 2700K, 3000K, 3500K, 4000K
  • CRI: 95+
  • Output / ft: 89 lm/ft, 179 lm/ft, 255 lm/ft, 341 lm/ft, 303 lm/ft, 329 lm/ft, 149 lm/ft, 153 lm/ft
  • Mounting: Surface
  • Wattage / ft: 1 W/ft, 1.9 W/ft, 2.8 W/ft, 3.5 W/ft, 4.1 W/ft, 5.2 W/ft, 4.4 W/ft
  • Lens Aperture: 0.66 inch
  • Sustainability: RoHS/Reach
  • Made In: Made in Canada
  • Color: RGB/RGBW, Tunable White
  • Product Number: 815
Specsheets
Install Guides
IES Files
Katana IP Specsheet
685.45 KB
PDF
Katana Wet RATED Installation
545.38 KB
PDF
455-815-FS-175-30-XX-1.ies
17.09 KB
IES
455-815-FS-175-35-XX-1'.ies
17.04 KB
IES
455-815-CS-175-35-XX-1'.ies
17.19 KB
IES
