Bara Surface - Dynamic Color

Bara Surface – Dynamic Color

Surface Mount Linear 24V System

Overview

Specifications

24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 32’ depending on output
Suitable for undercabinet, surface mount, and direct view applications
Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7 W/ft orless
Class two listed for damp locations.
Tunable White allows individual control of CCT and output, can be paired with Vintage Dim power supply for warmdim effect.
Warm Dim follows the incandescent dimming curve and is compatible with MLV, ELV, and Incandescent dimmers
RGB offers balanced output across the color gamut and a true white with RGBW
Smart Pixel allows for infinite color combinations with cascading and chasing effects.
Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors.
Average Life (L70): 50,000hrs
7 year warranty

CCT: 19K - 27K, 19K - 35K, 27K - 65K, RGB30K
CRI: 98
Type: Linear Fixture
Output / ft: 122 lm/ft, 124 lm/ft, 149 lm/ft, 180 lm/ft, 203 lm/ft, 205 lm/ft, 246 lm/ft, 296 lm/ft, 99 lm/ft
Mounting: Surface
Input Voltage: Low Voltage
Color: Pixel, RGB/RGBW, Tunable White, Warm Dim
Wattage / ft: 4.0 W/ft, 4.5 W/ft, 4.6 W/ft, 5.4 W/ft, 5.6 W/ft, 5.7 W/ft, 7.6 W/ft, 8.3 W/ft
Rating: Damp
Accessories: Blade Louver, Glare Shield
Lens Aperture: 0.93 inch
Size: 0.93 in
Height: 0.40 in
Lens: Asymmetric, Batwing, Frosted, Medium, Narrow Beam
Operating Temperature: -5°F to 125°F

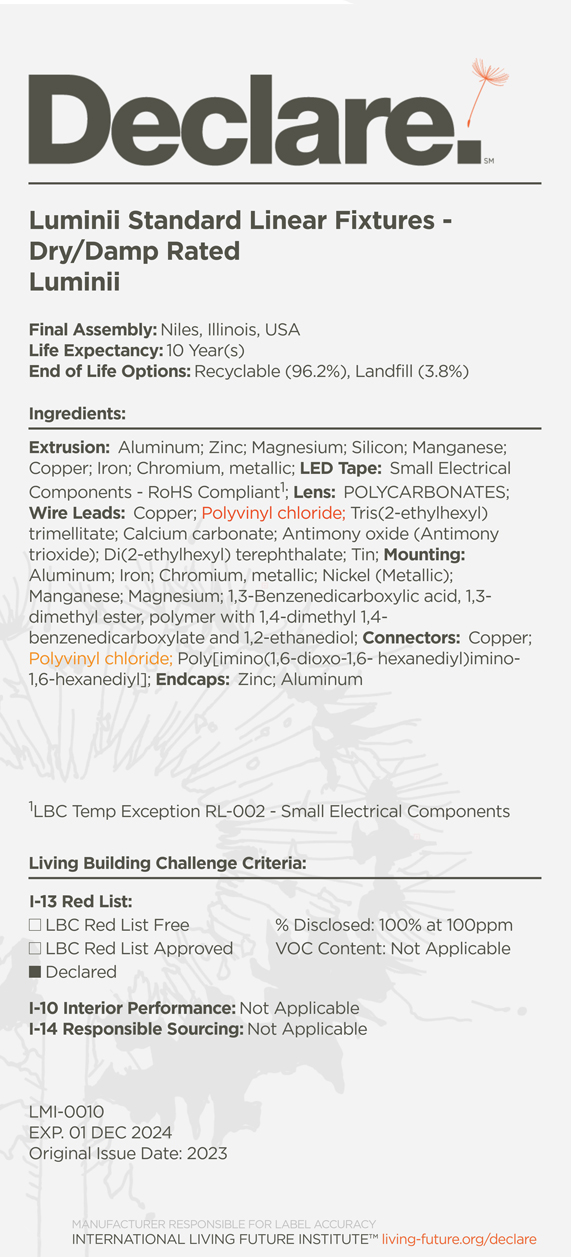

Sustainability: Declare, JA8/Title 24, RoHS/Reach
Made In: Made in America
Warranty: 7 years
Product Number: Bar
