Luminii

Linear Luminaires

Bara Grid – Static White

T-Grid Mount Linear 24V System

Damp
Overview
Specifications
  • 24VDC Class 2 fixtures made to order up to 144”. Fixtures can be linked up to 40’ depending on output
  • Suitable for undercabinet, surface mount, and direct view applications
  • Approved for closet/storage space installation per NEC 410.16(A) (3) and 410.16(C)(5) on outputs 5.7 W/ft or less
  • Class 2 listed for damp locations
  • Dot free even illumination with frosted lens
  • Average Life (L70): 50,000hrs
  • High Color Quality options offer premium quality and vibrant colors with R9 values up to 97
  • High Efficacy options offer best in class output and efficacy with over 690 lm/ft and up to 73 lm/W
  • Proprietary strong bond solder method handles up to 50 lbs of pull force on wire leads and connectors
  • 7 Year warranty
  • CCT: 1900K, 2200K, 2400K, 2500K, 2700K, 3000K, 3500K, 4000K, 4100K
  • CRI: 98
  • Type: Linear Fixture
  • Output / ft: 159 lm/ft, 258 lm/ft, 313 lm/ft, 617 lm/ft, 693 lm/ft
  • Mounting: T-Grid
  • Input Voltage: Low Voltage
  • Color: Static White
  • Wattage / ft: 2.8 W/ft, 4.8 W/ft, 6.0 W/ft, 7.5 W/ft, 9.6 W/ft
  • Rating: Damp

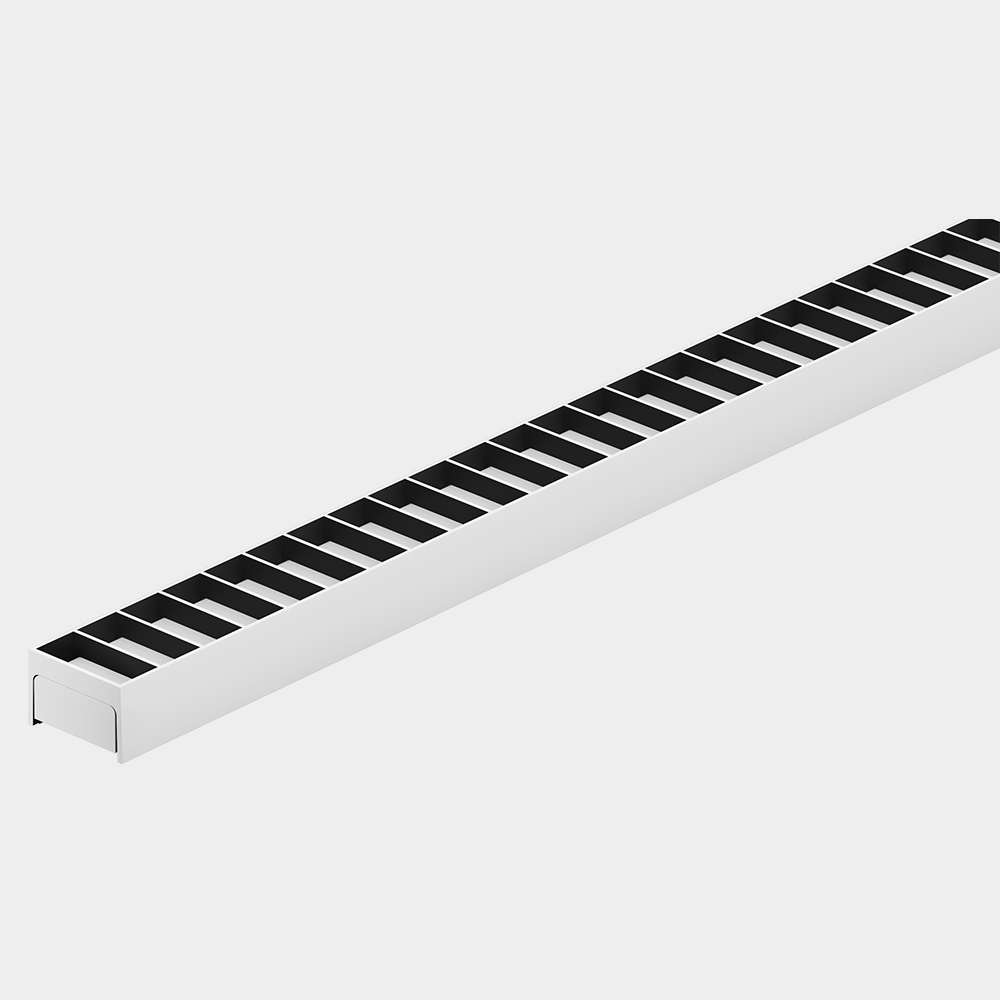

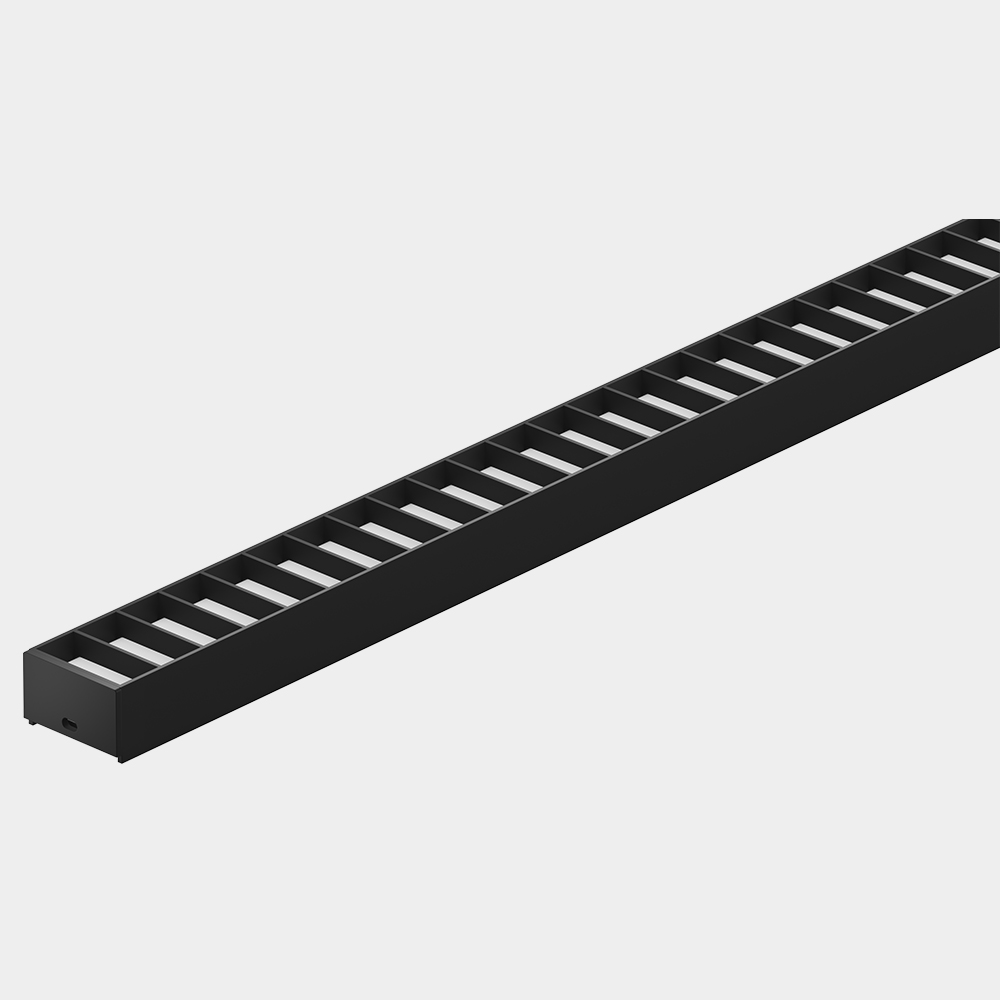

  • Accessories: Blade Louver, Glare Shield

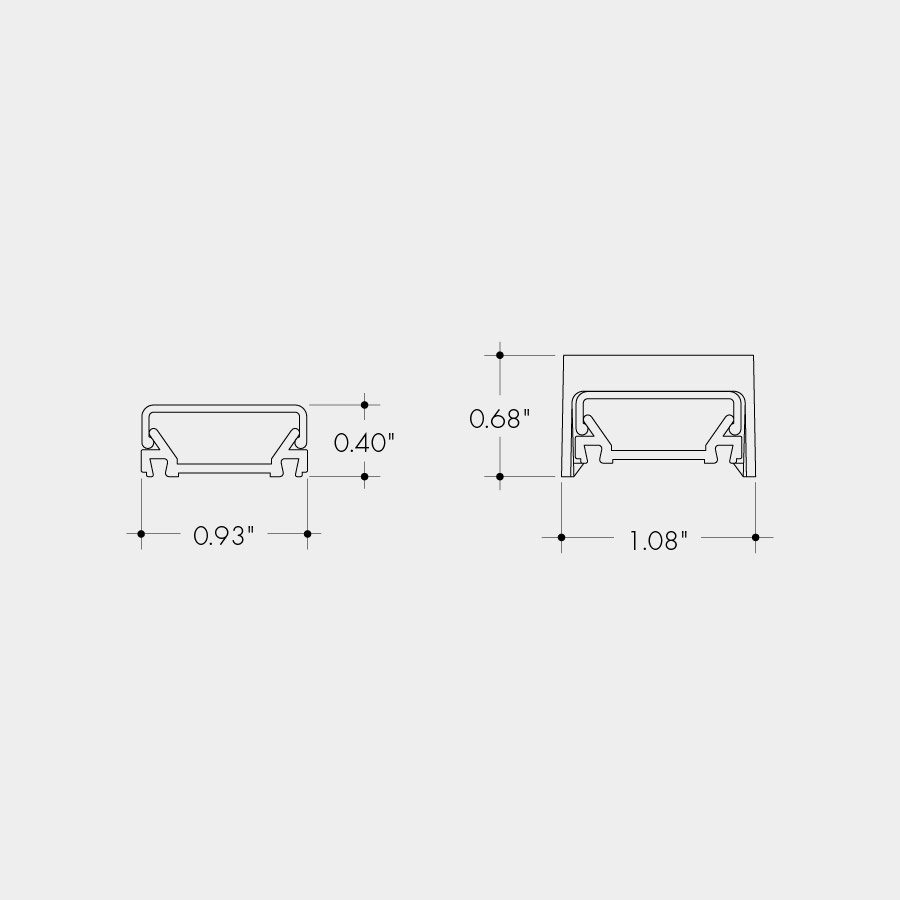

  • Lens Aperture: 0.93 inch
  • Size: 0.93 in
  • Height: 0.40 in
  • Lens: Asymmetric, Batwing, Frosted, Medium, Narrow Beam
  • Operating Temperature: -5°F to 125°F

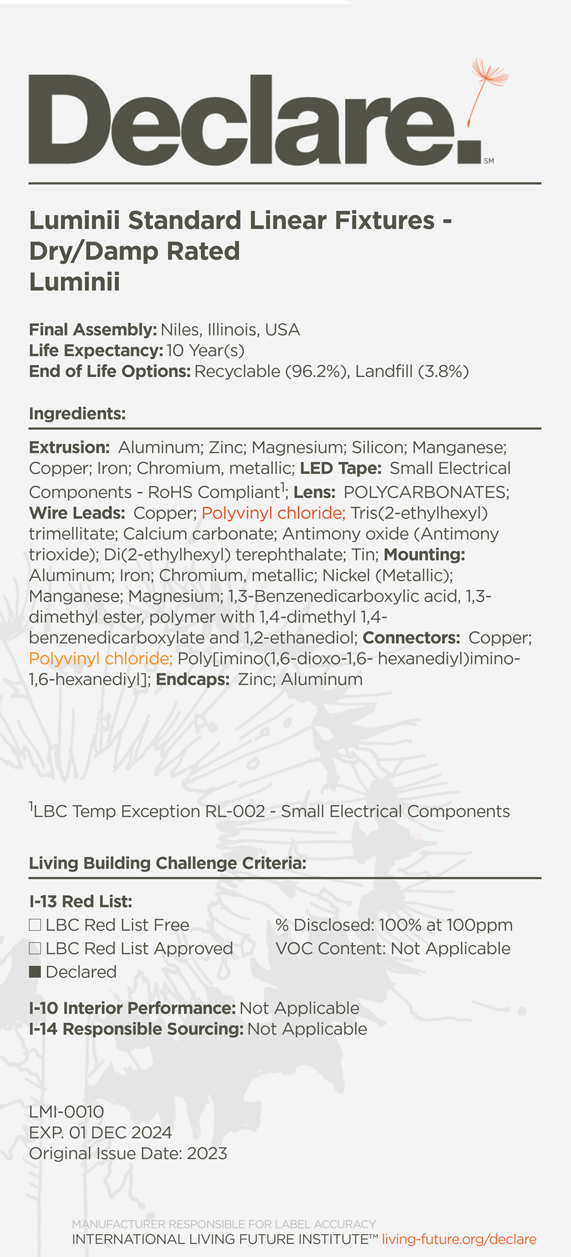

  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Made In: Made in America
  • Warranty: 7 years
  • Product Number: Bar
Learn more
Specsheets
Install Guides
Cross Reference Guide
DWG CAD
IES Files
Revit Files
Bara Grid Static White Spec
2.24 MB
PDF
Bara Install Guide
1.31 MB
PDF
Luminii Cross Reference Luminii Optic Arts
PDF
Bara-Dynamic-Color-dwg-cad.zip
212.61 KB
ZIP
BAR-48-72VHO-30K-AS.ies
14.93 KB
IES
BAR-48-72VHO-30K-BW.ies
15.15 KB
IES
BAR-48-72VHO-30K-F.ies
1.62 KB
IES
BAR-48-72VHO-30K-M.ies
15.08 KB
IES
BAR-48-72VHO-30K-N.ies
15.16 KB
IES
Bara-Static-White-revit-files.zip
654.35 KB
ZIP
