Luminii

Downlights

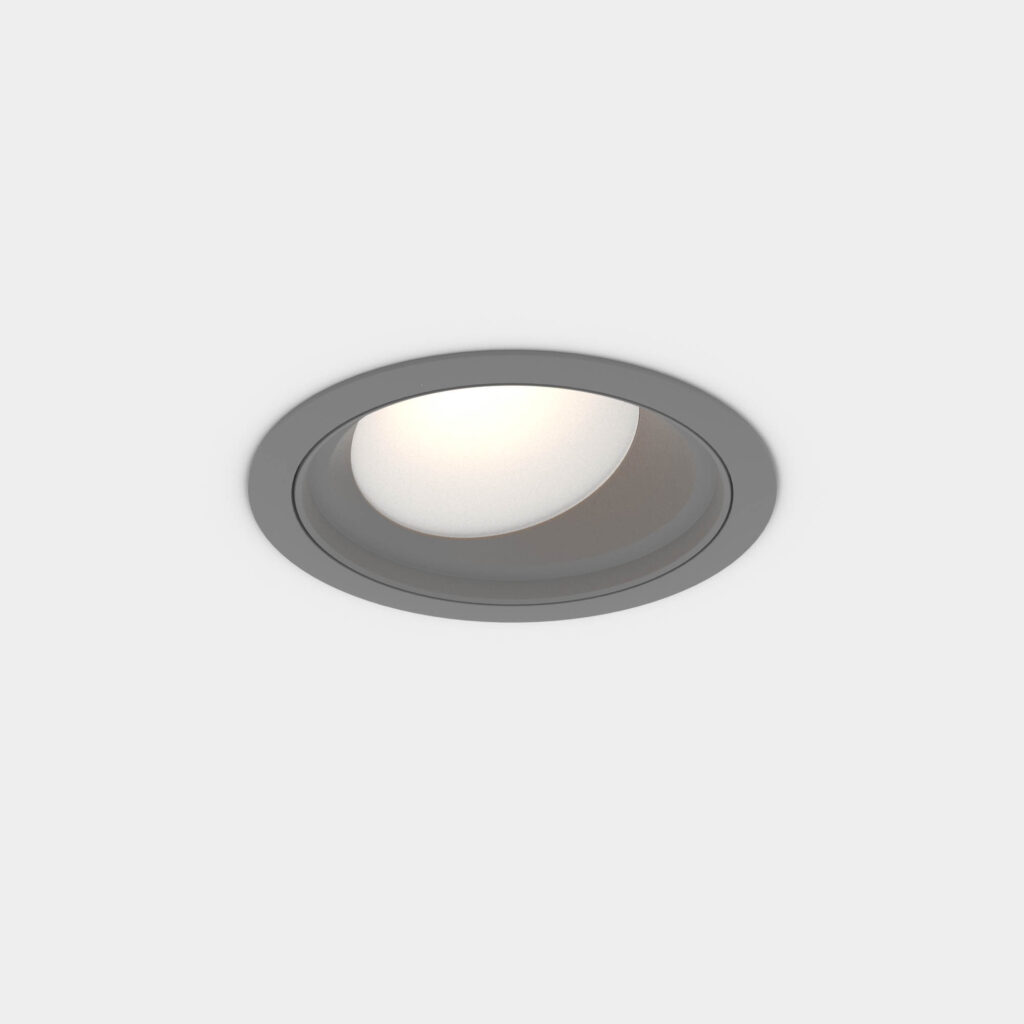

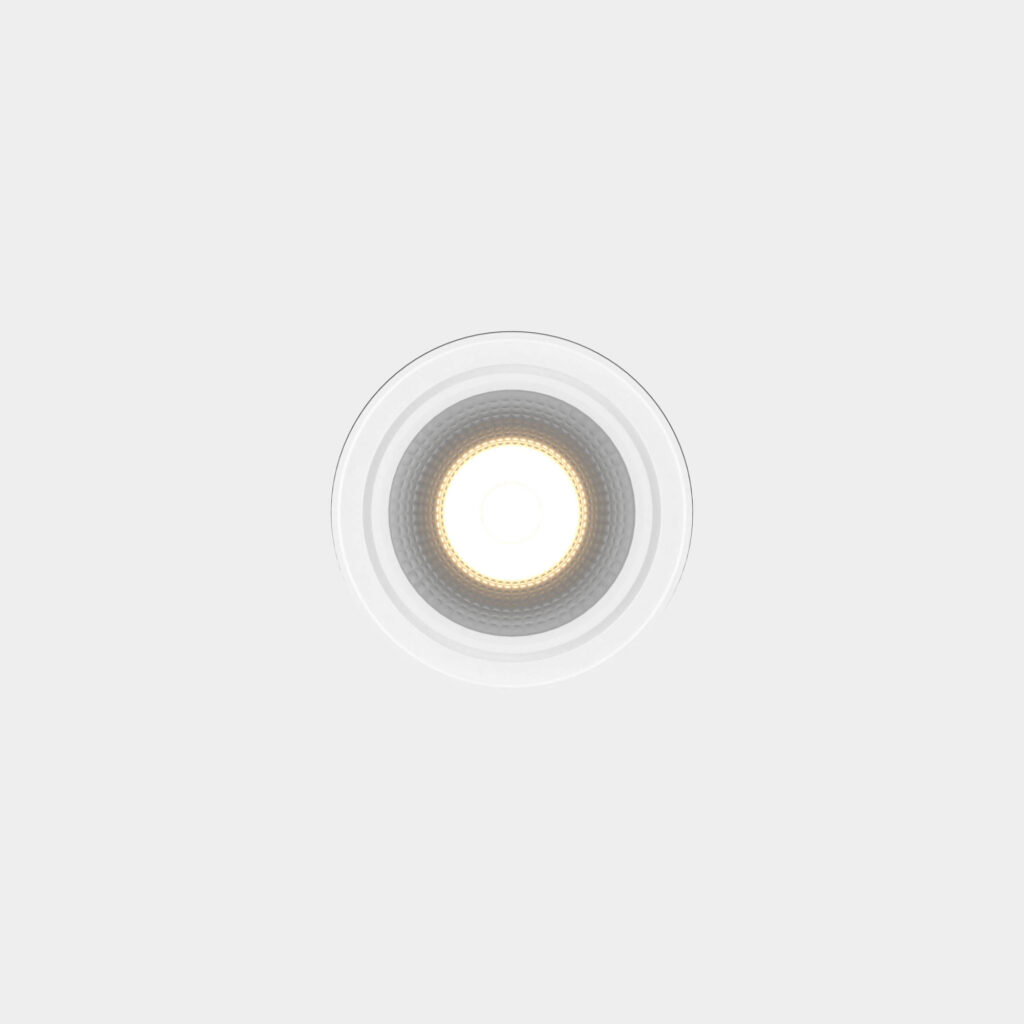

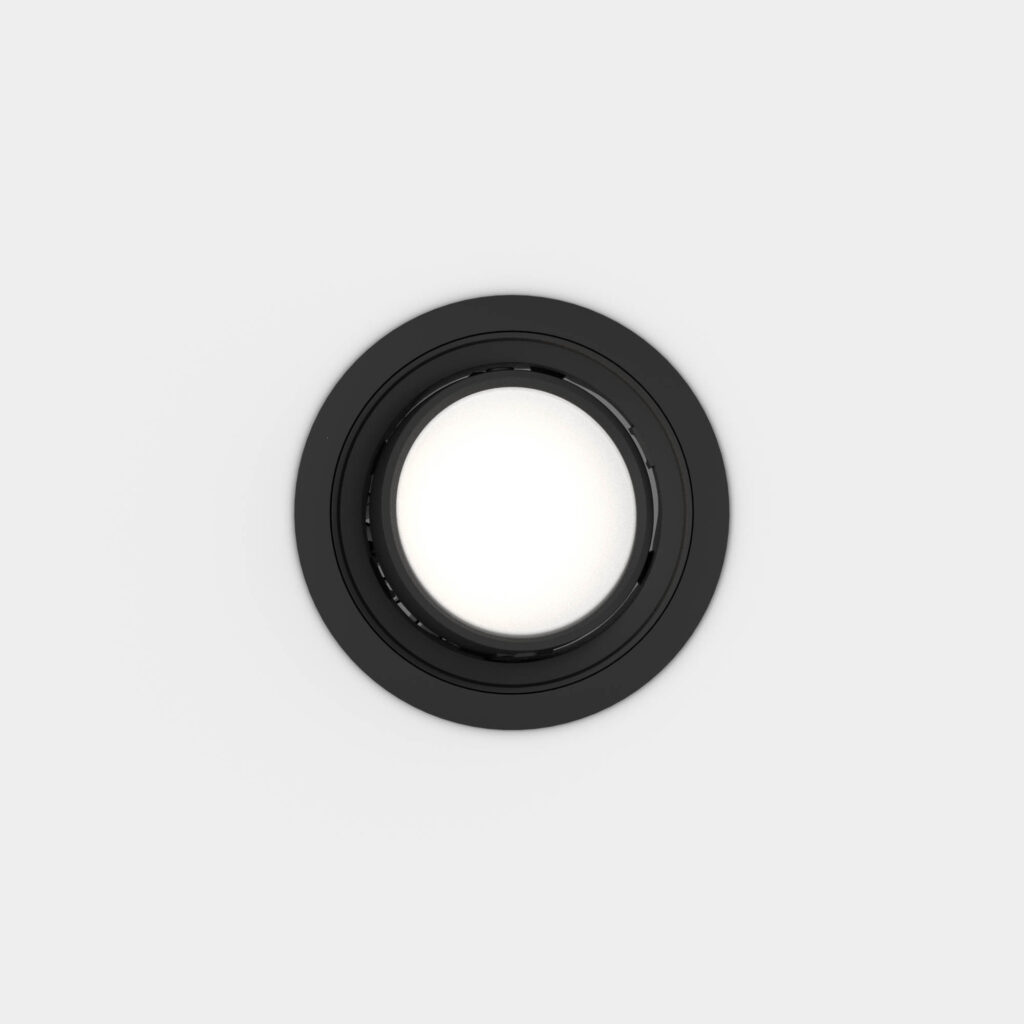

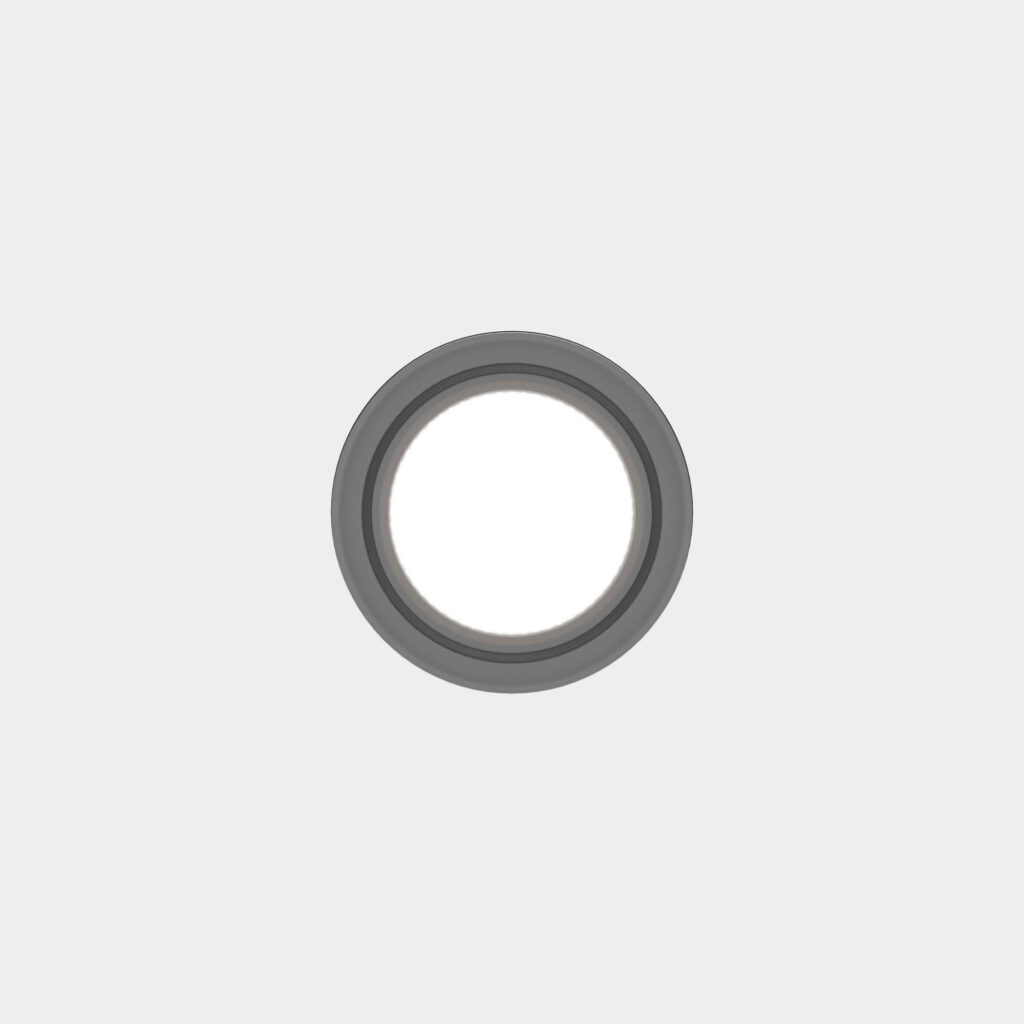

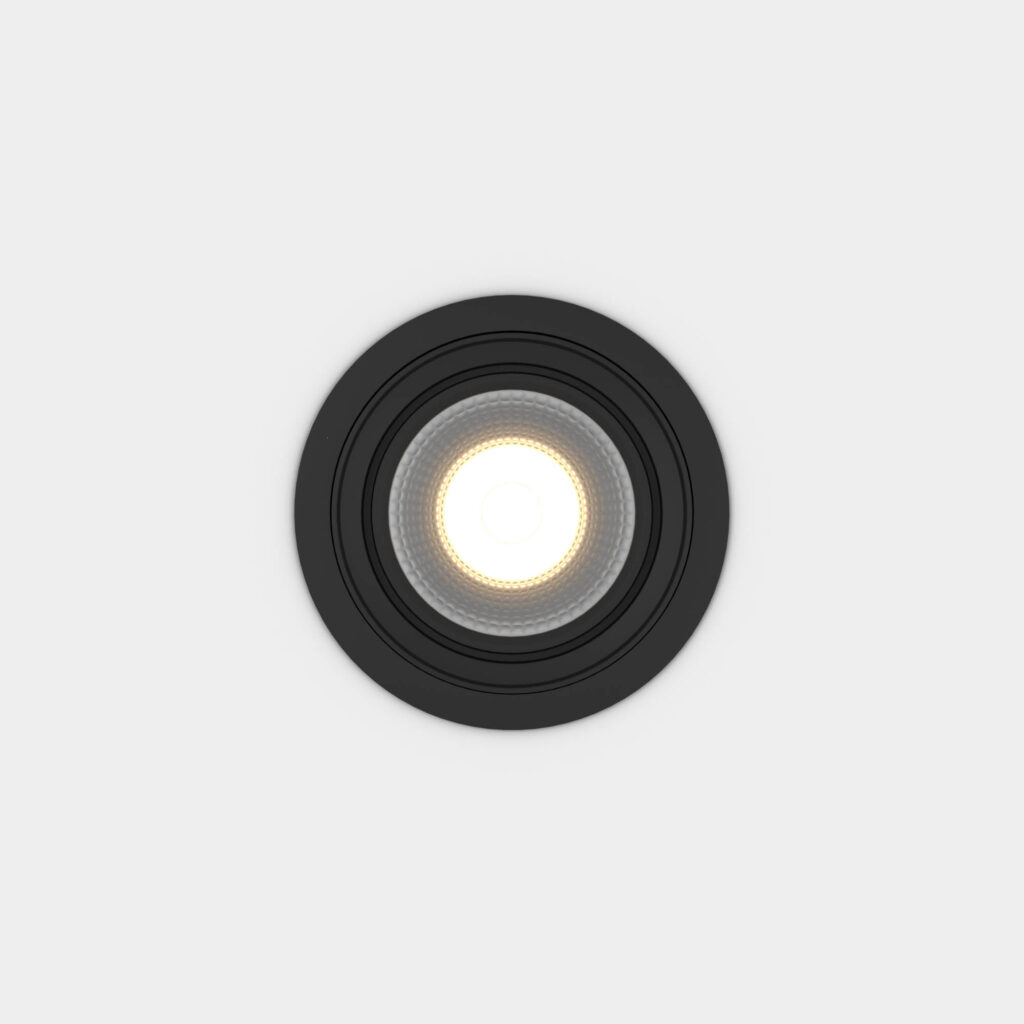

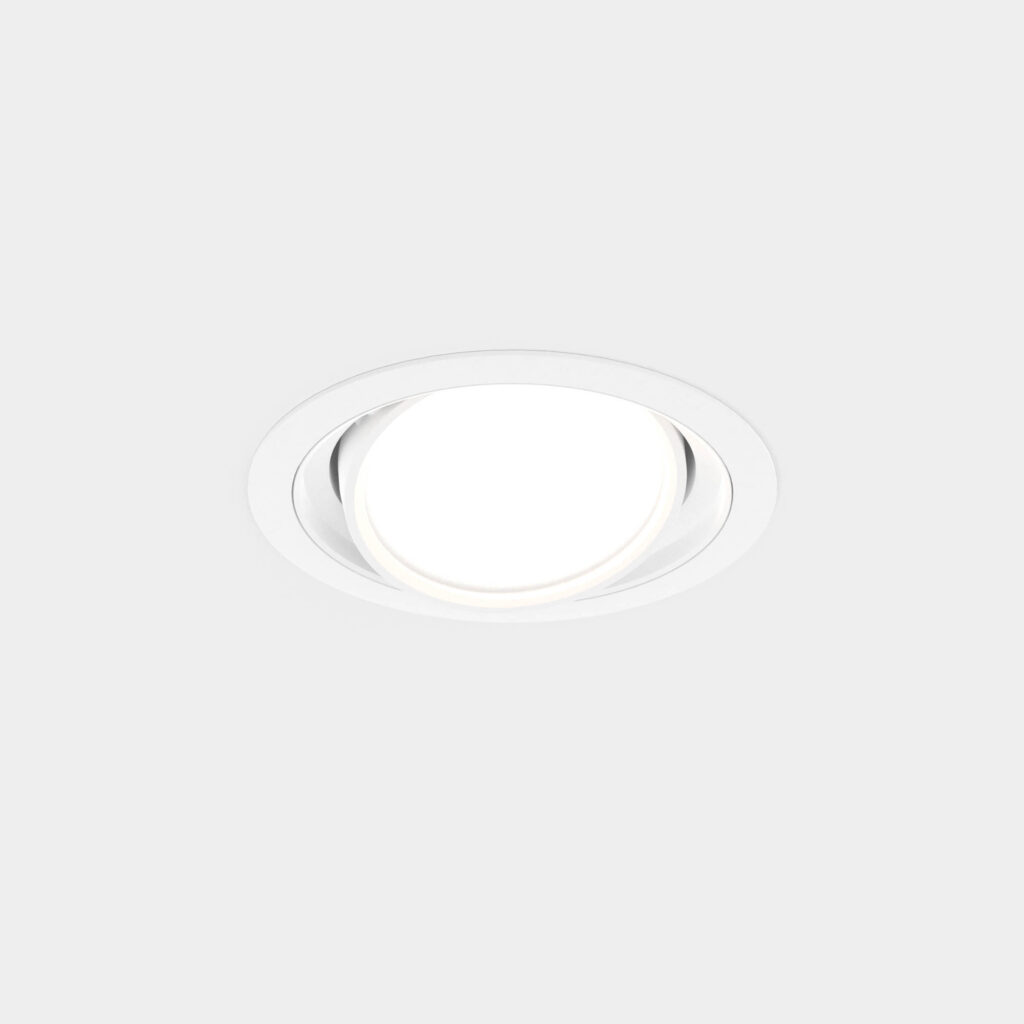

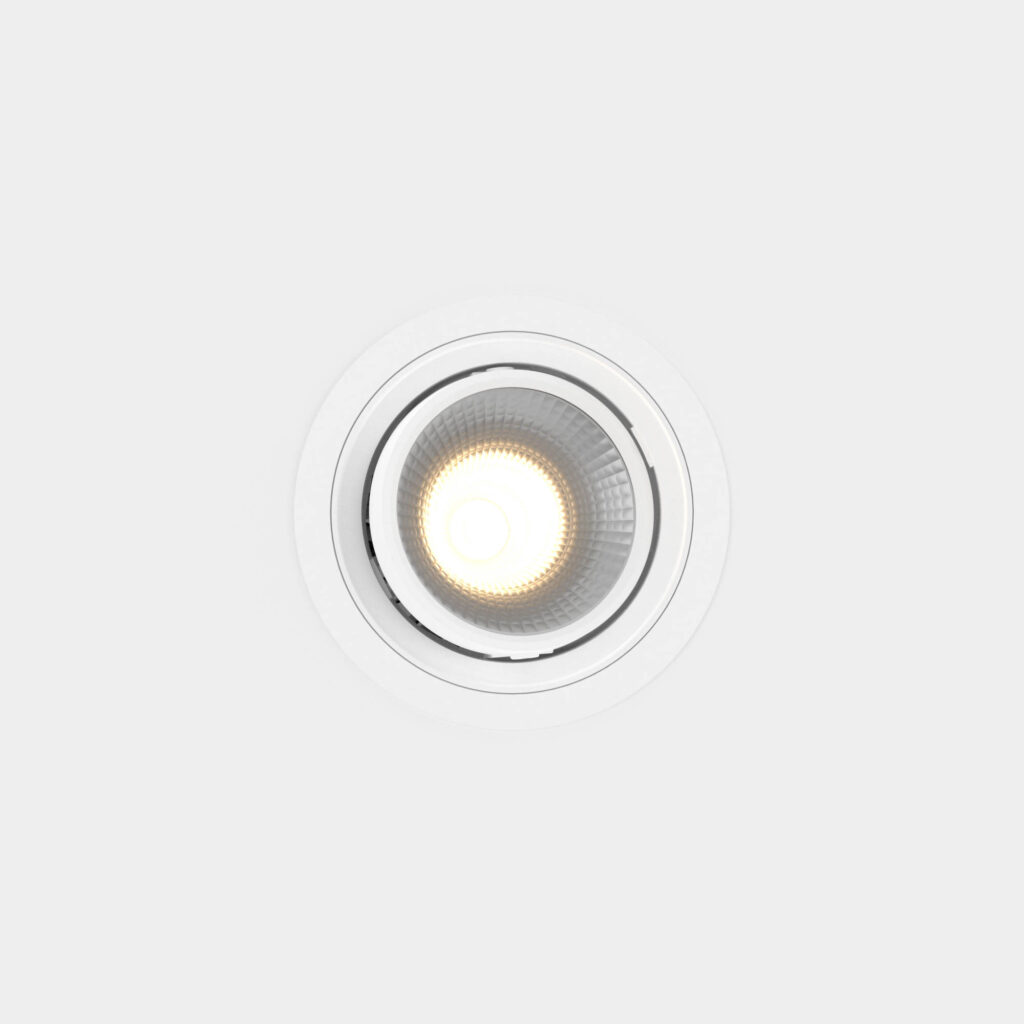

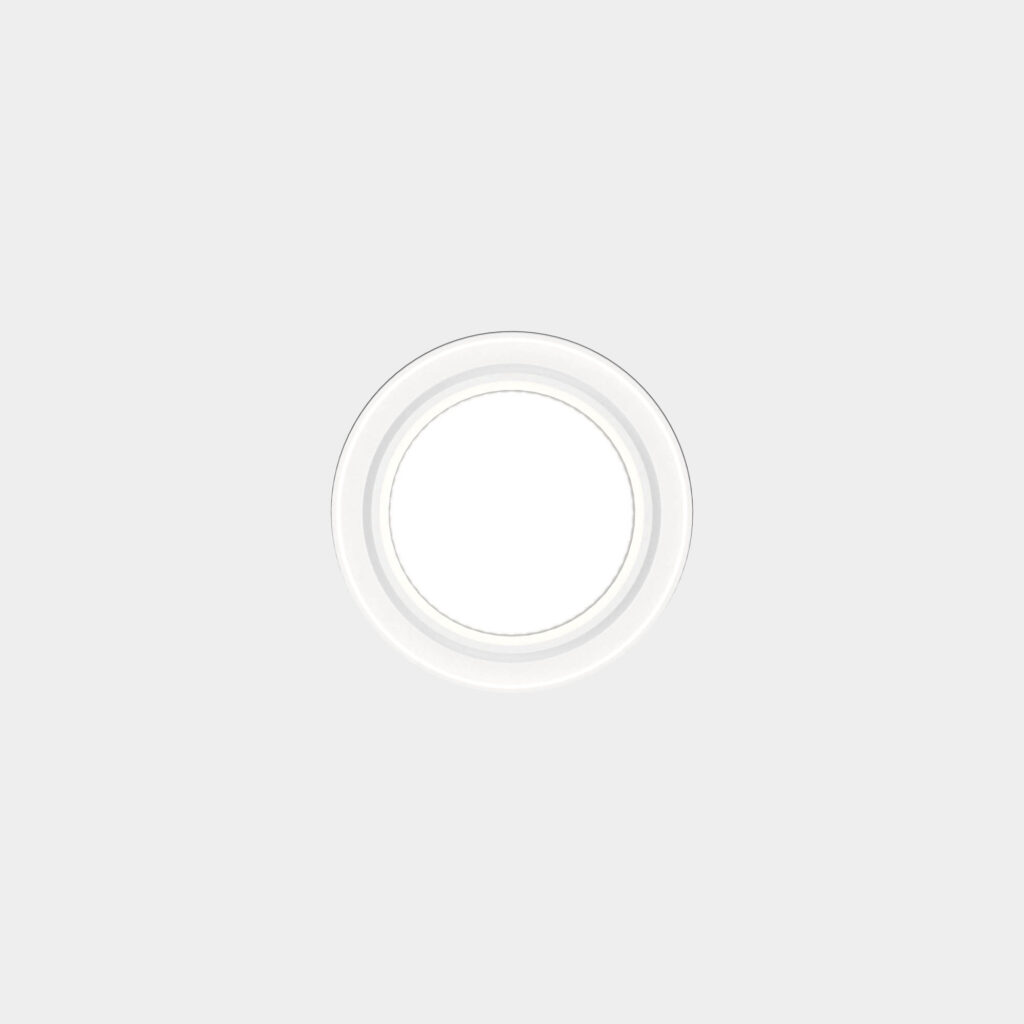

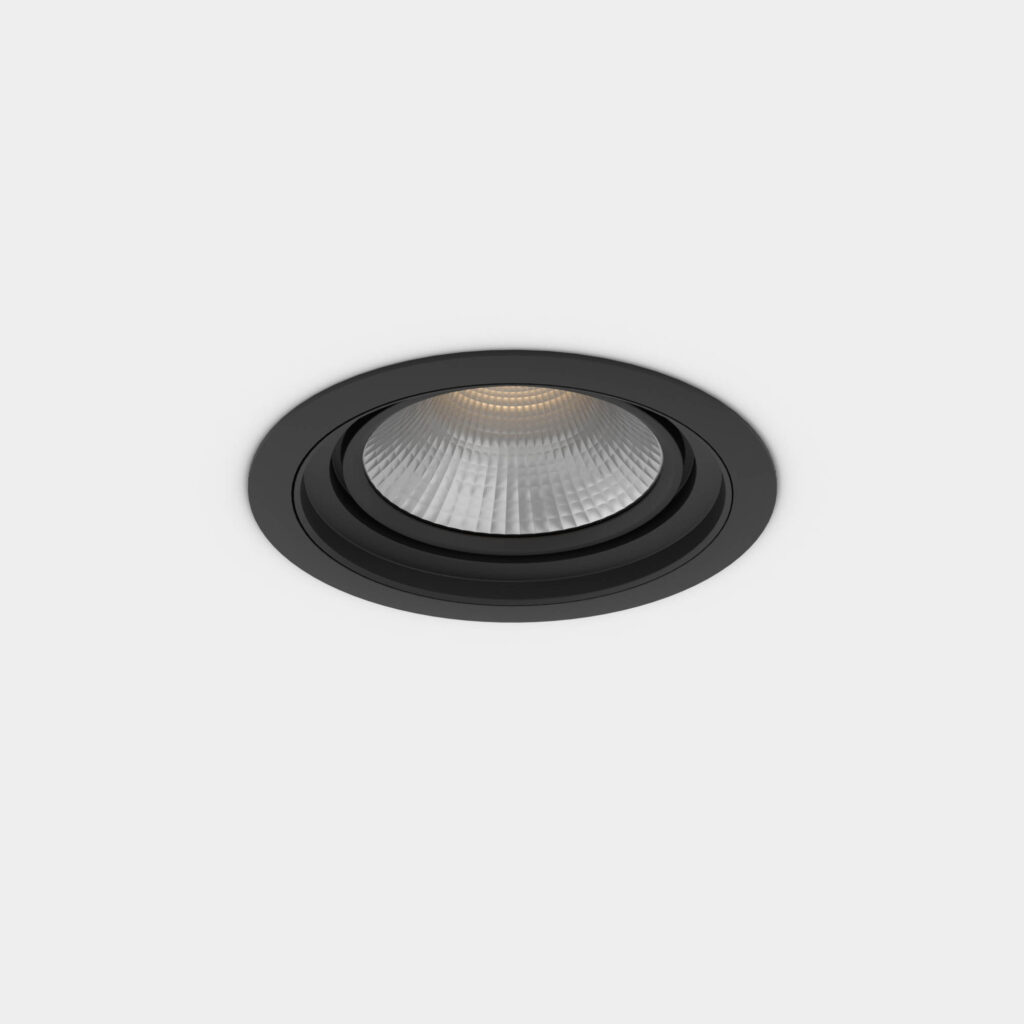

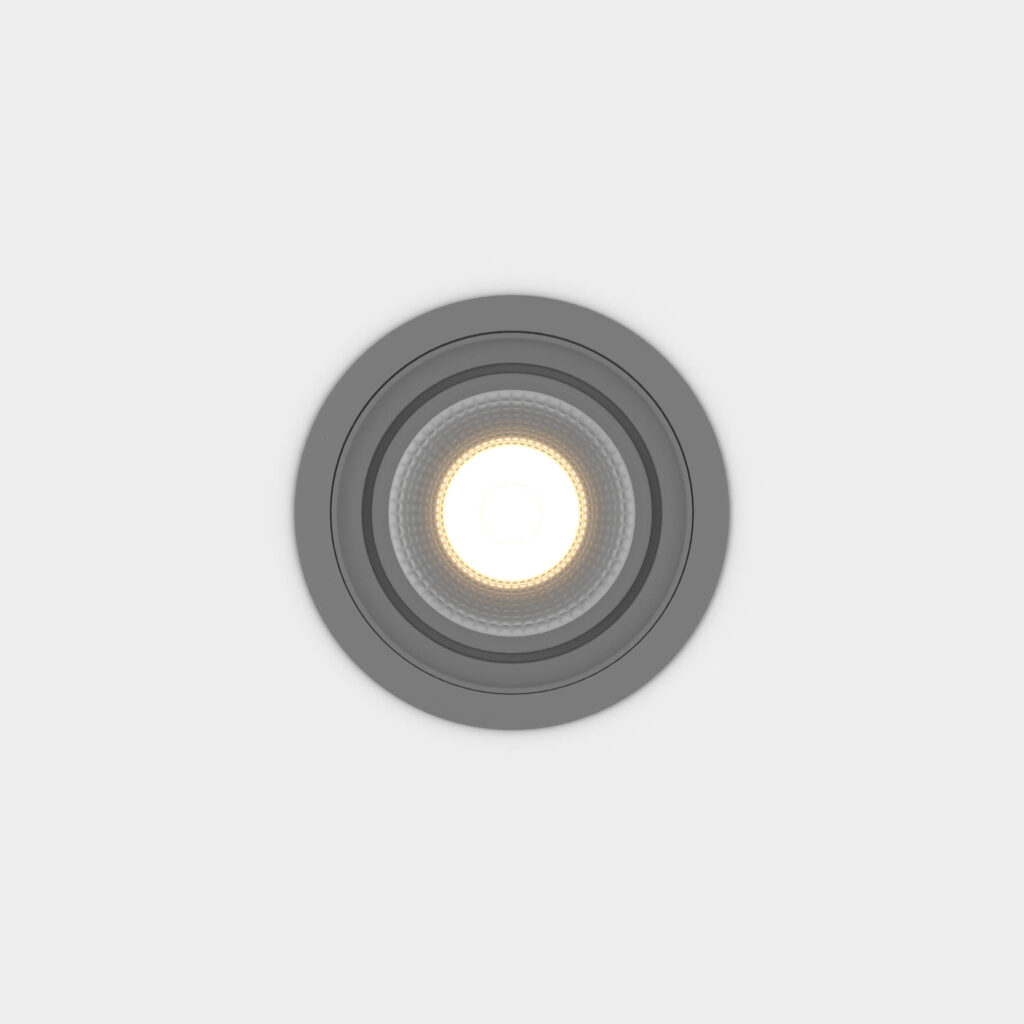

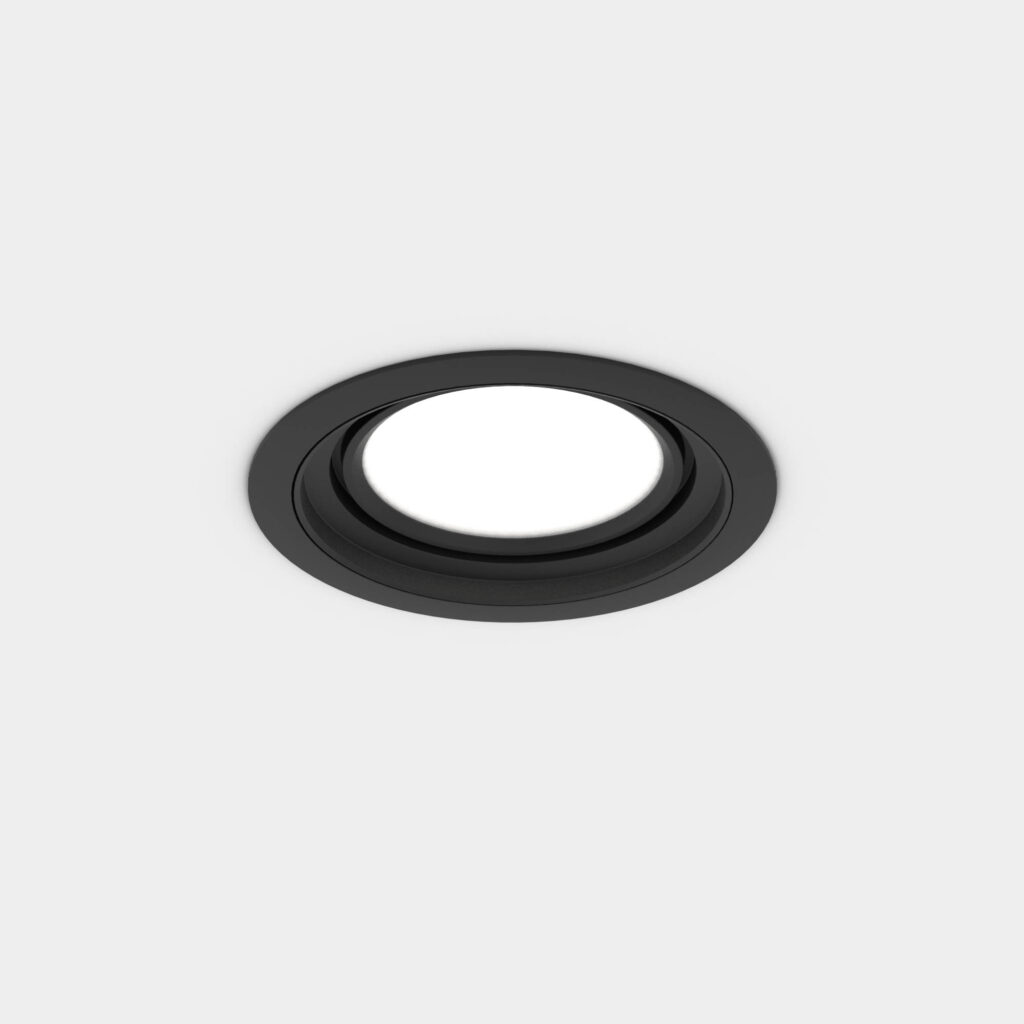

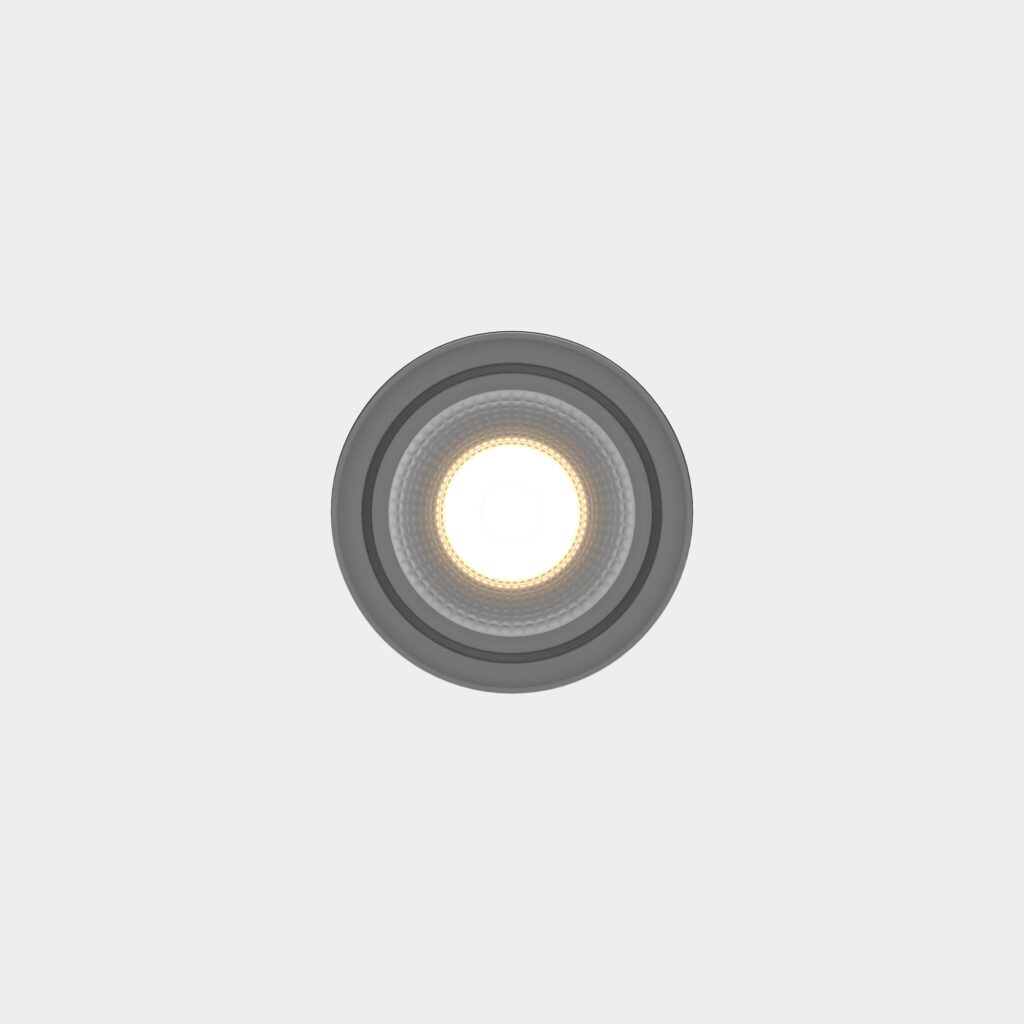

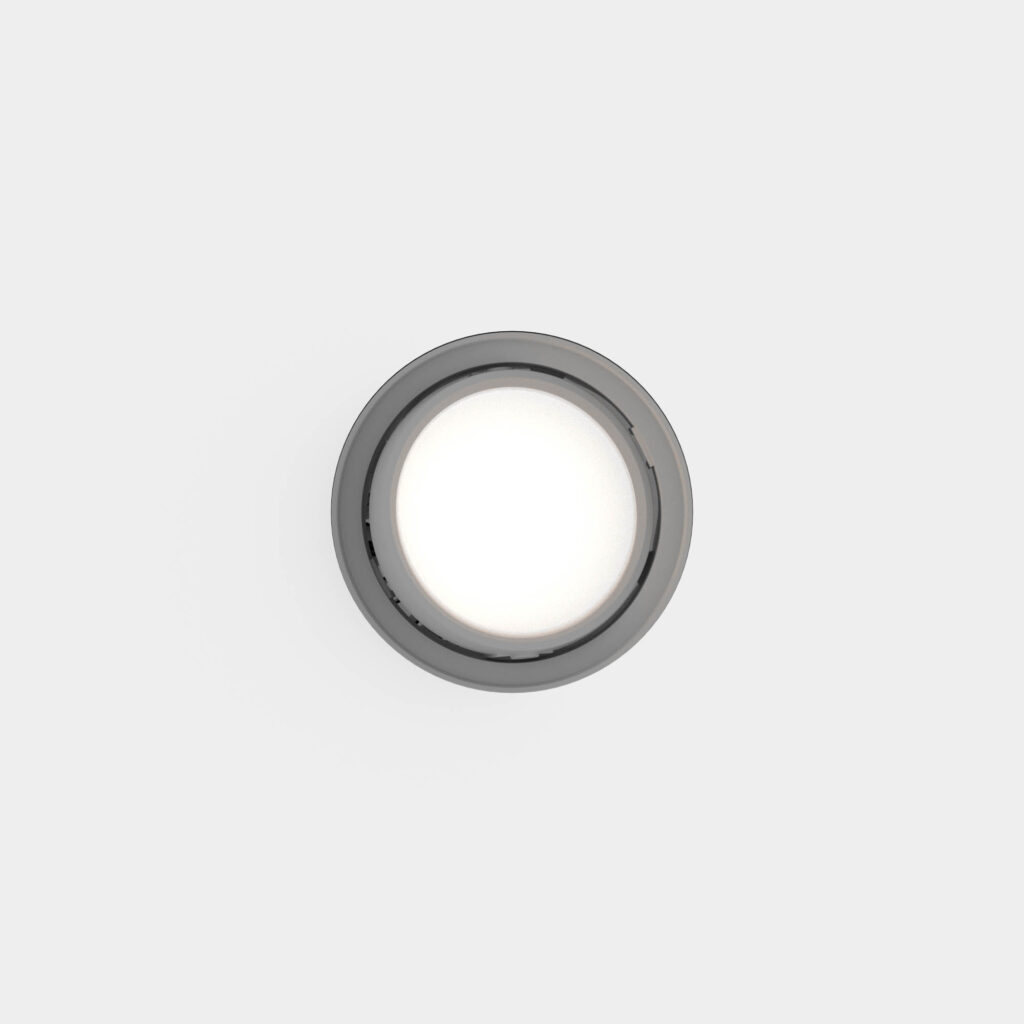

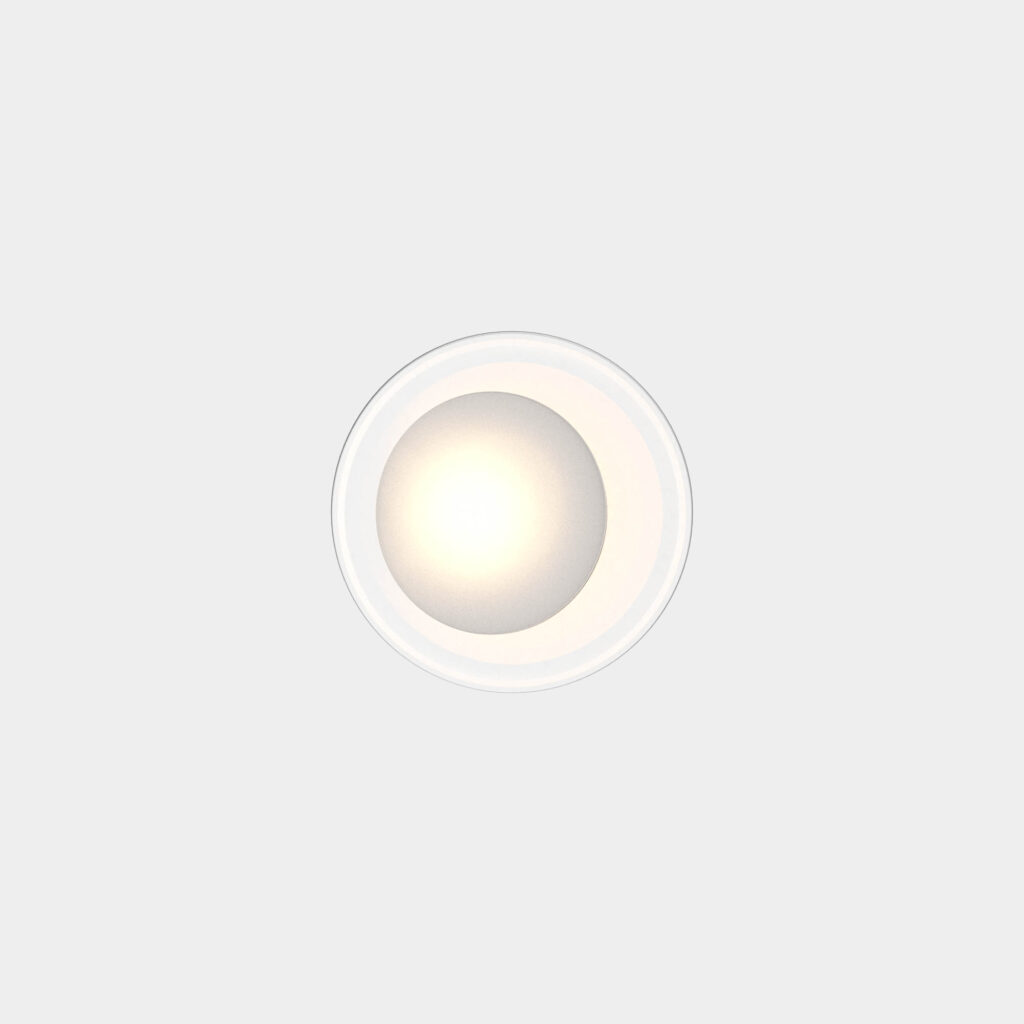

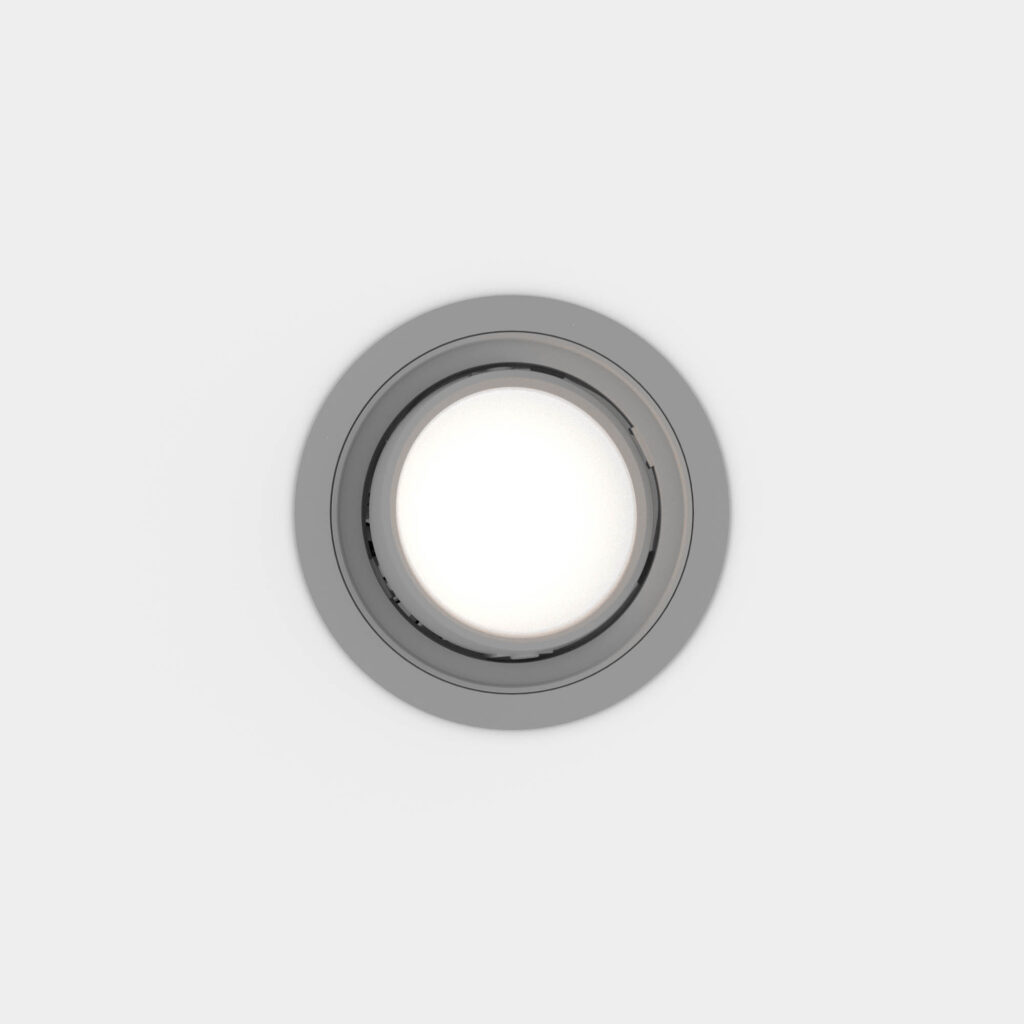

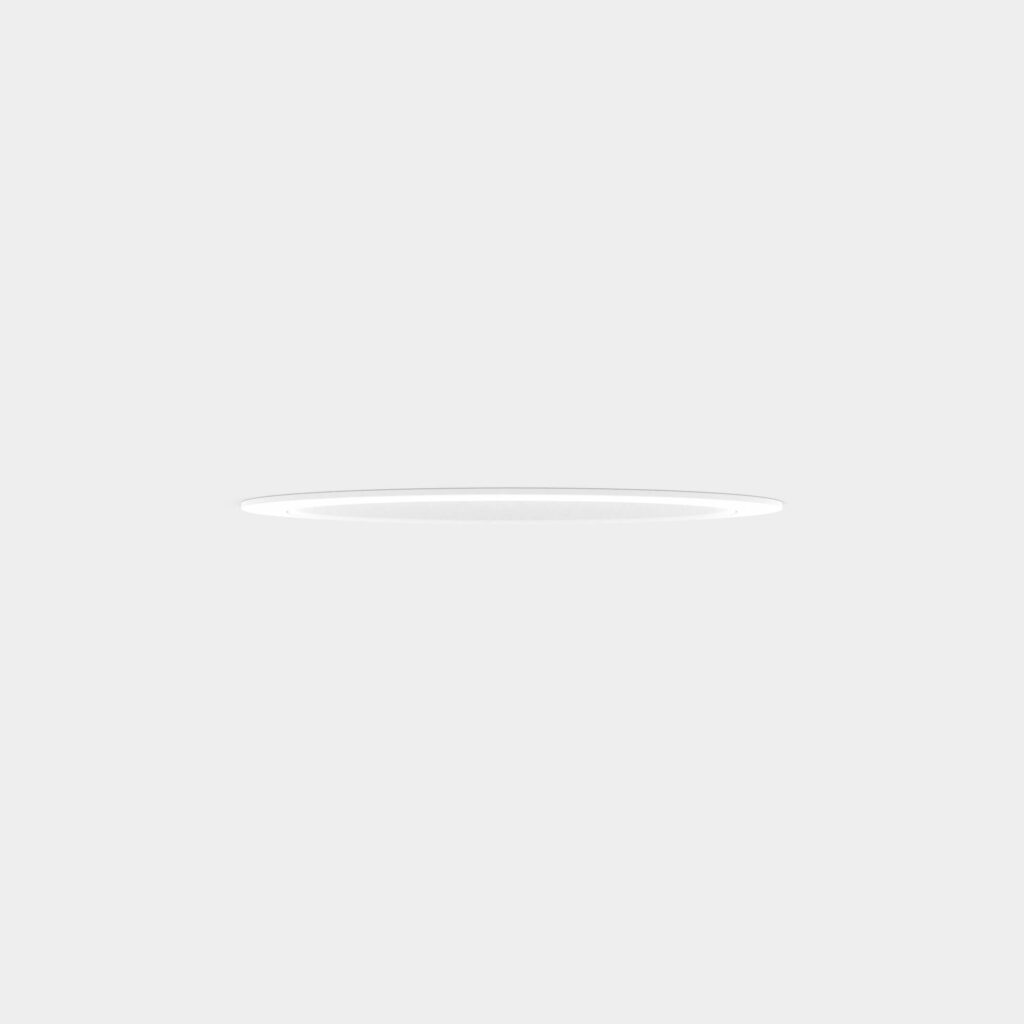

Artemis 3

Downlight - Adjustable - Wall Wash

Warm DimTunable White
Overview
Specifications

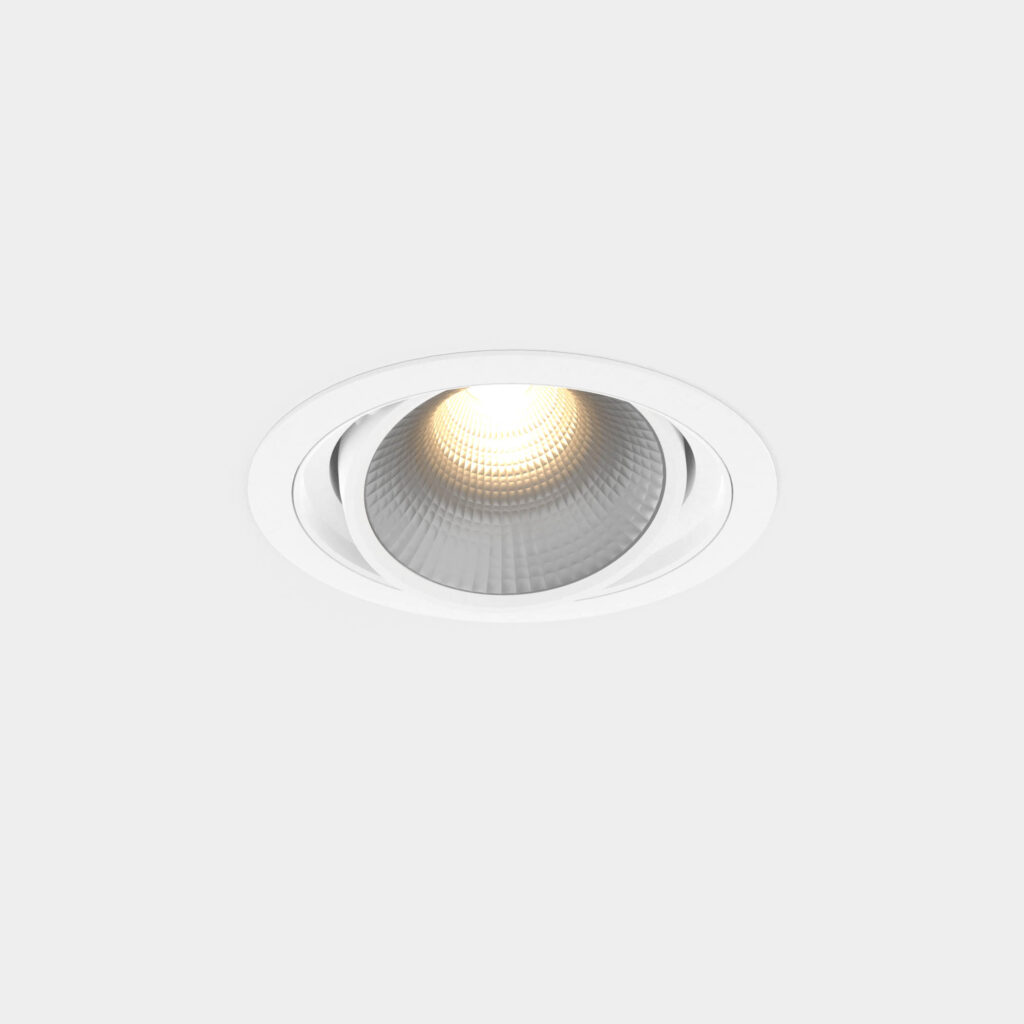

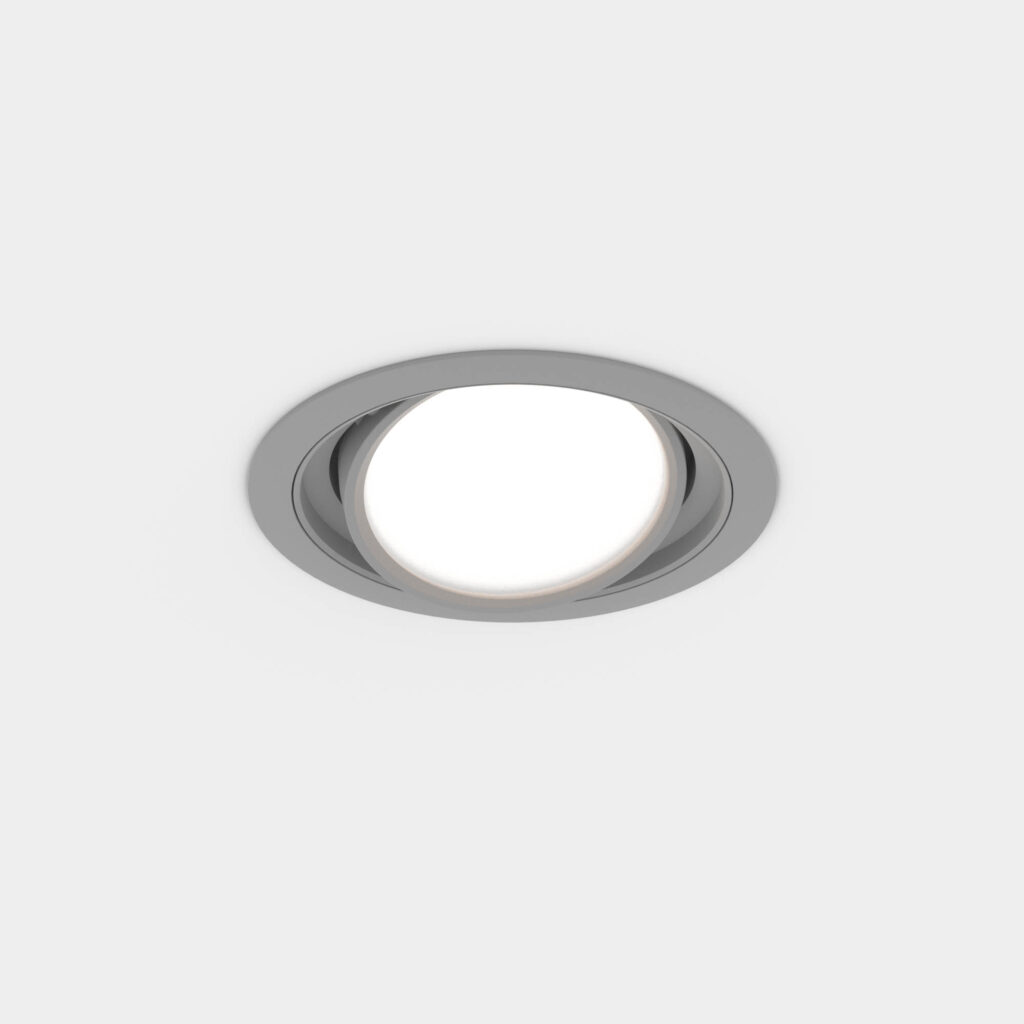

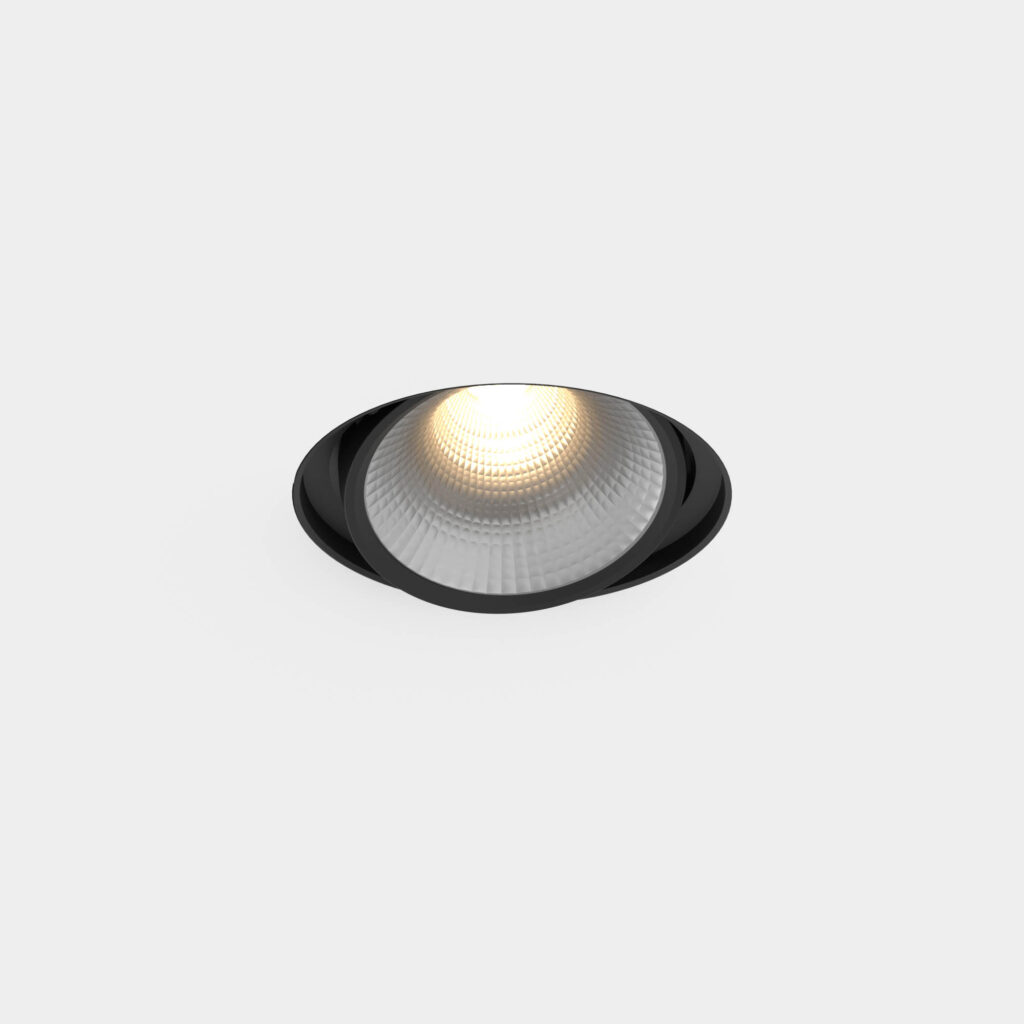

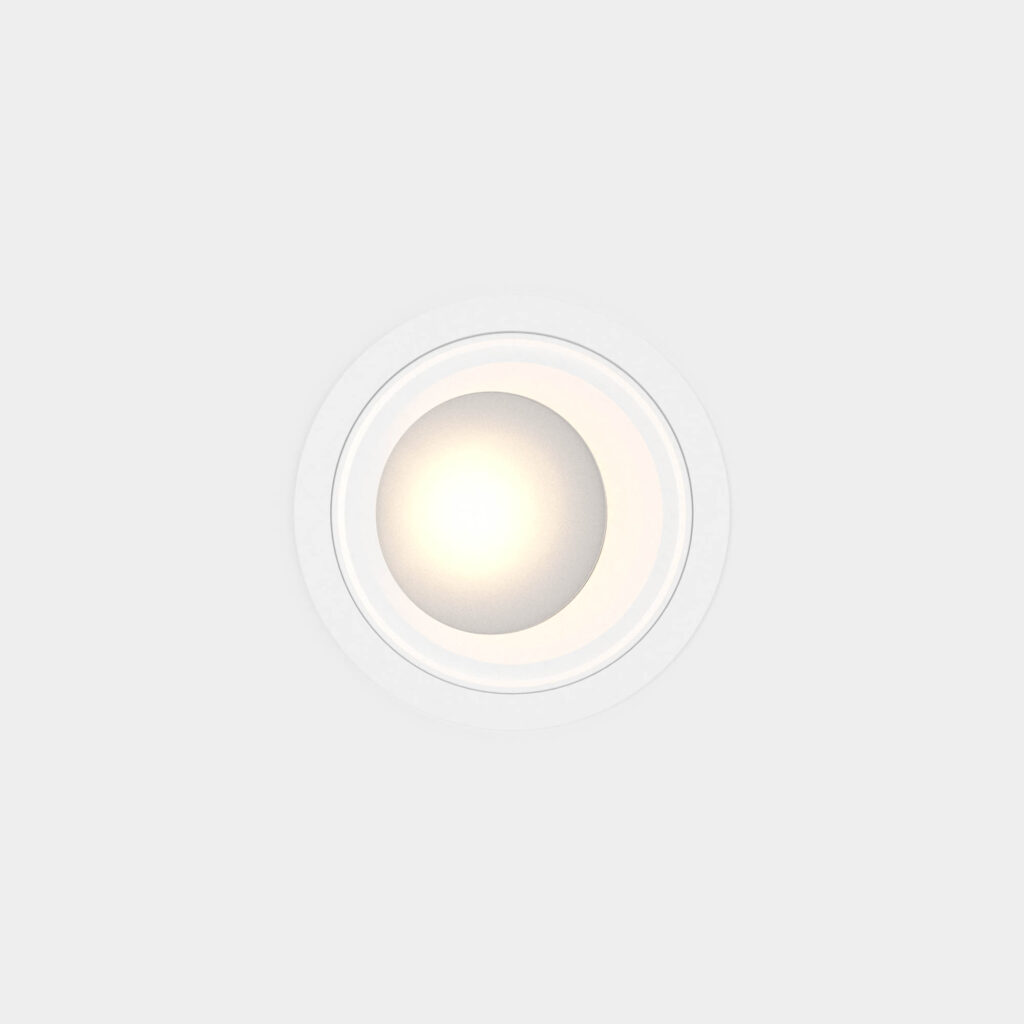

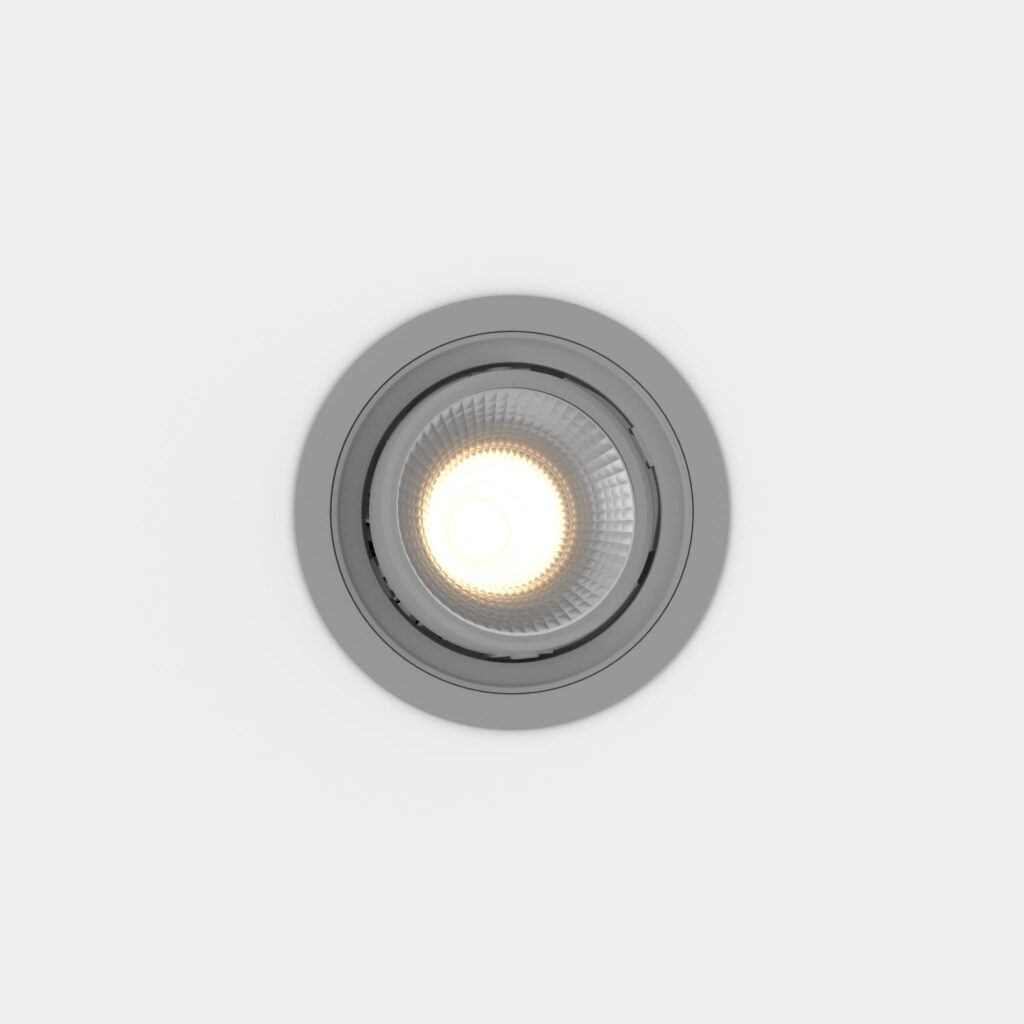

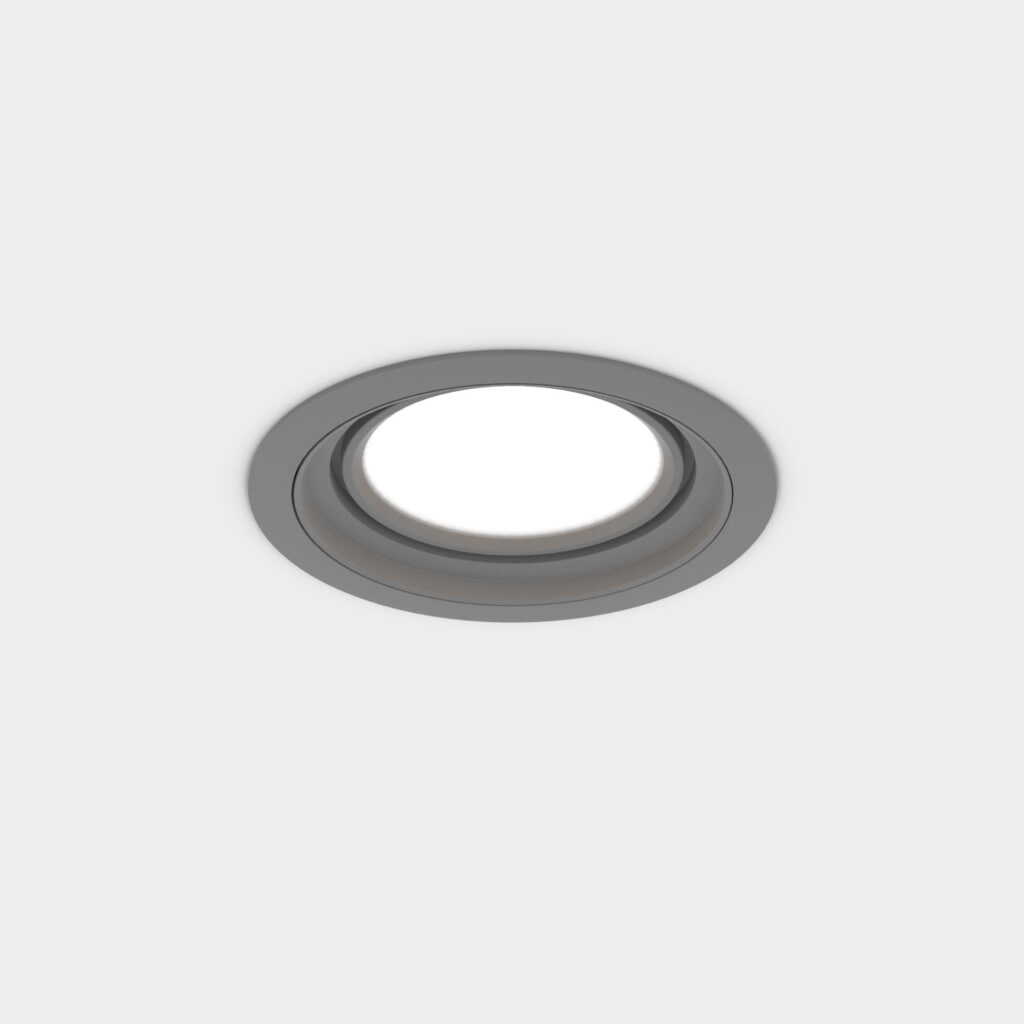

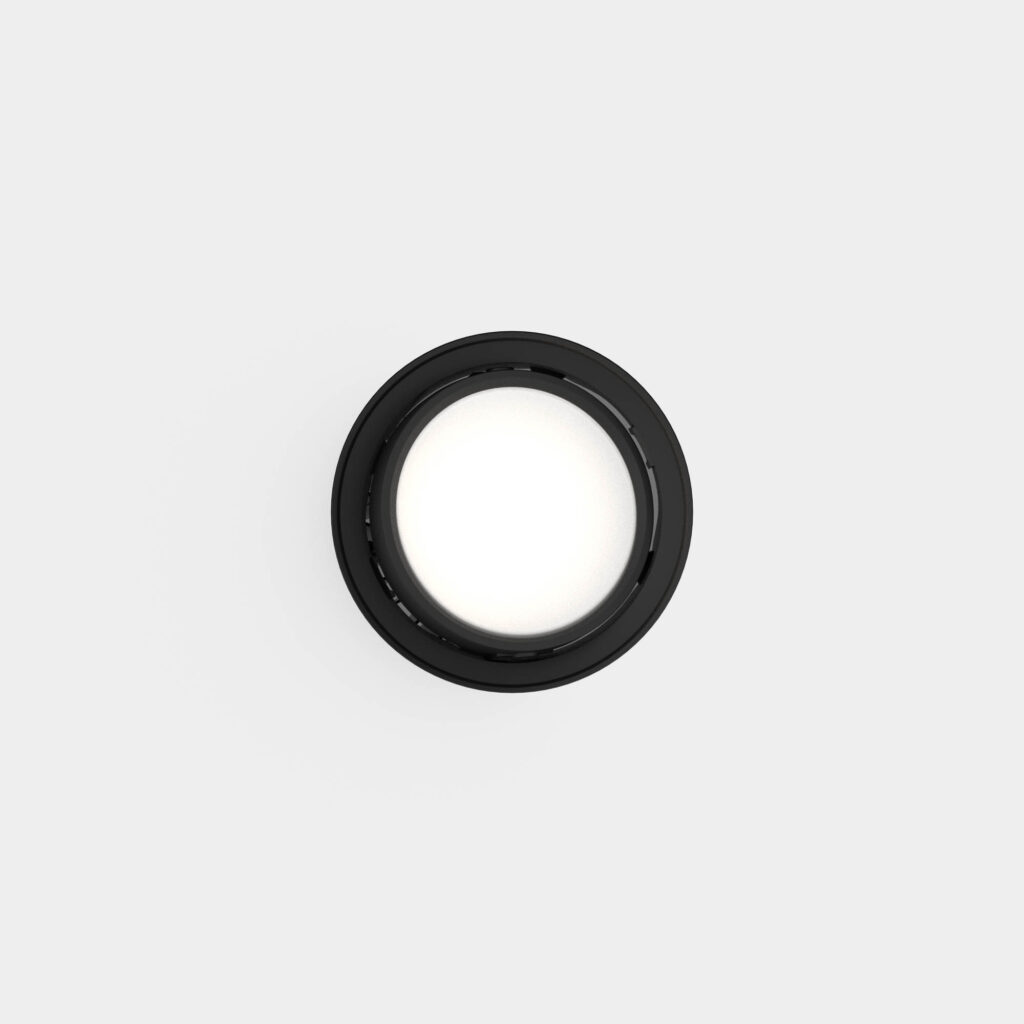

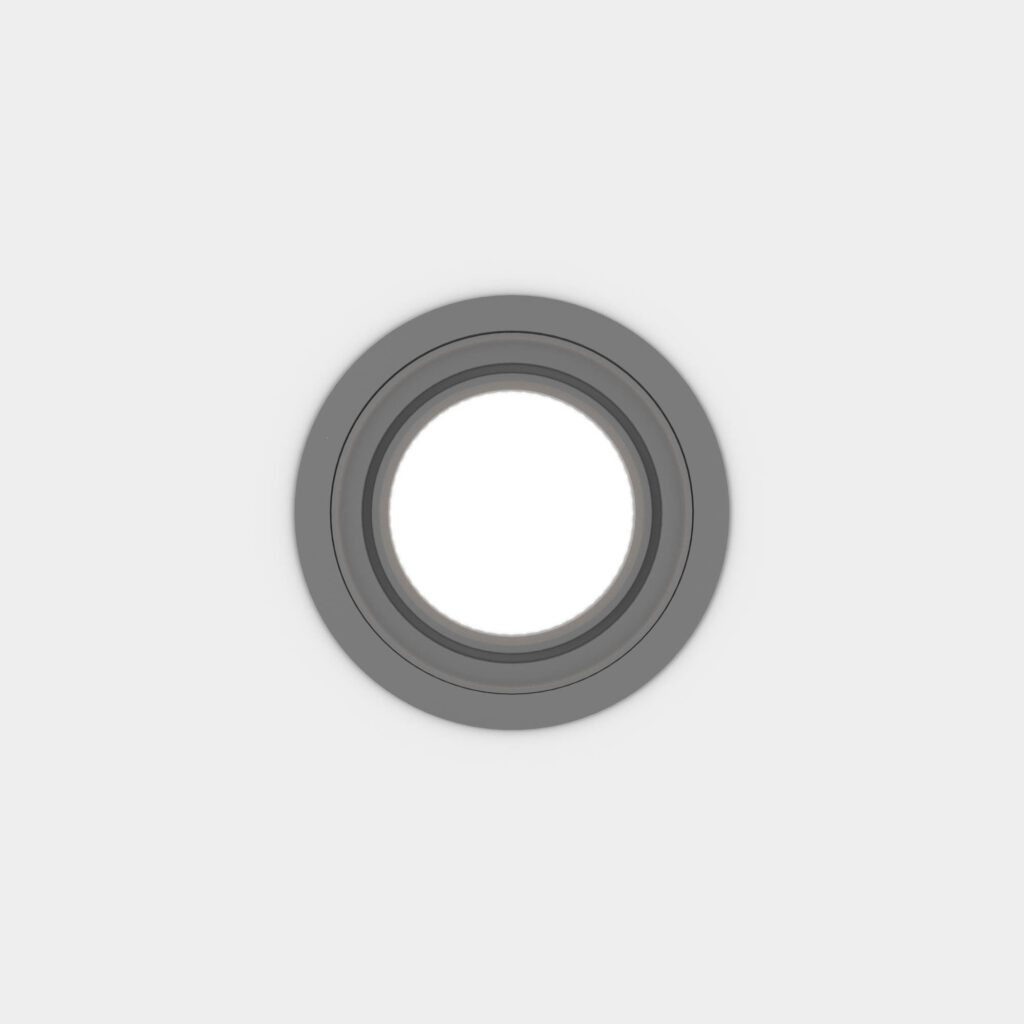

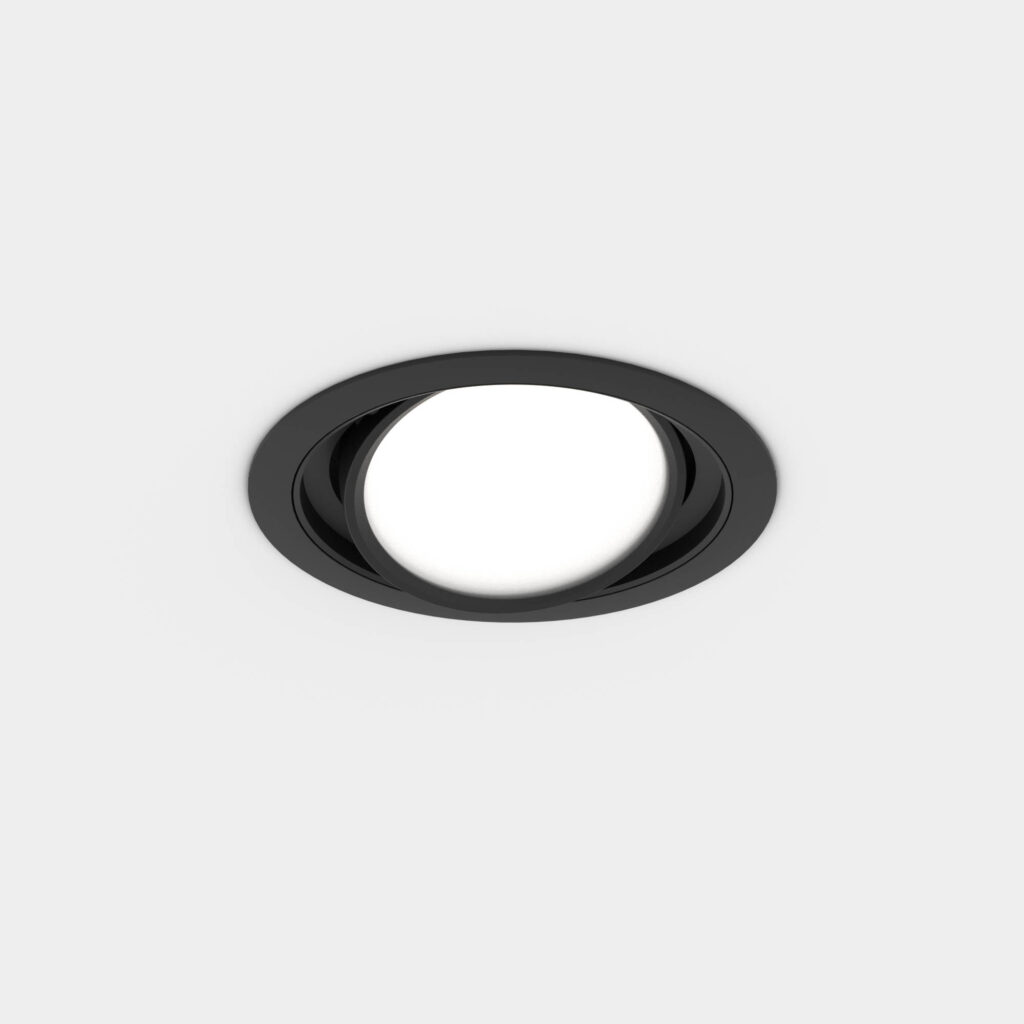

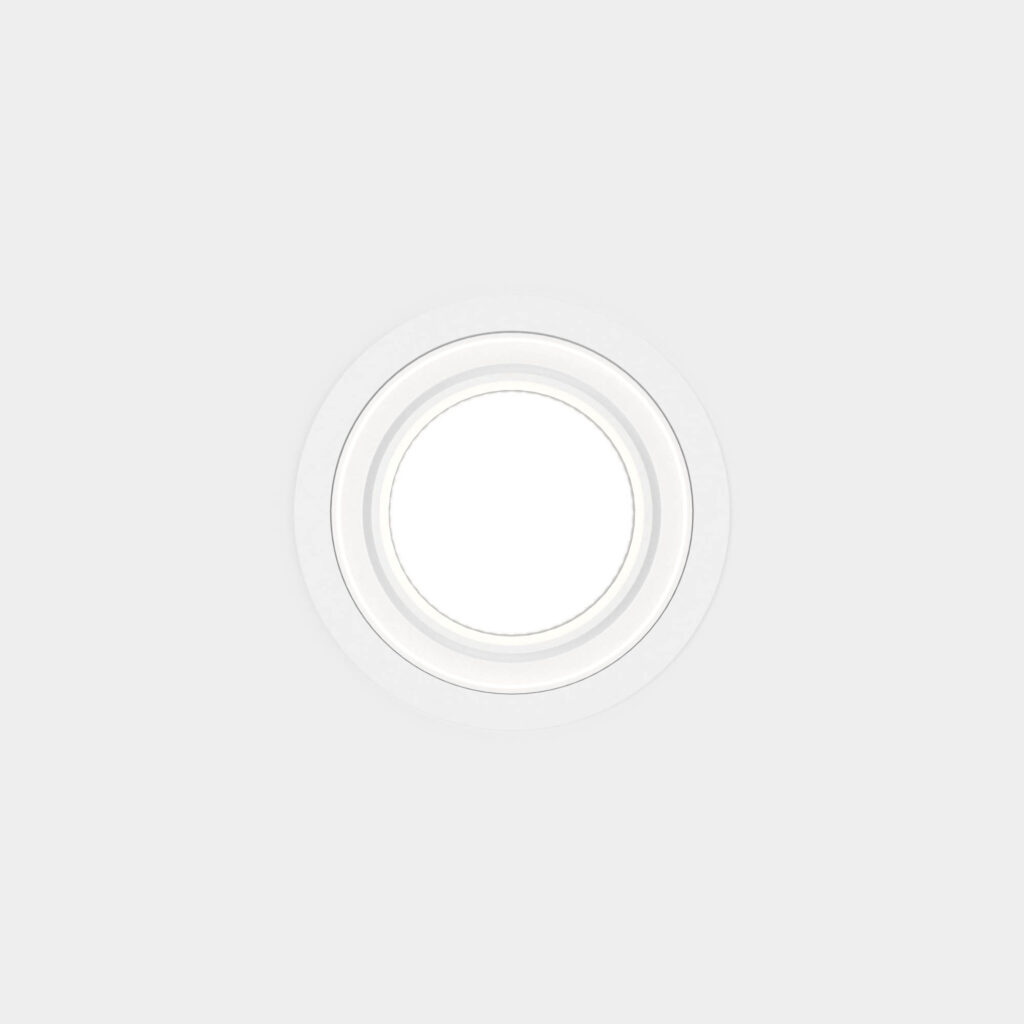

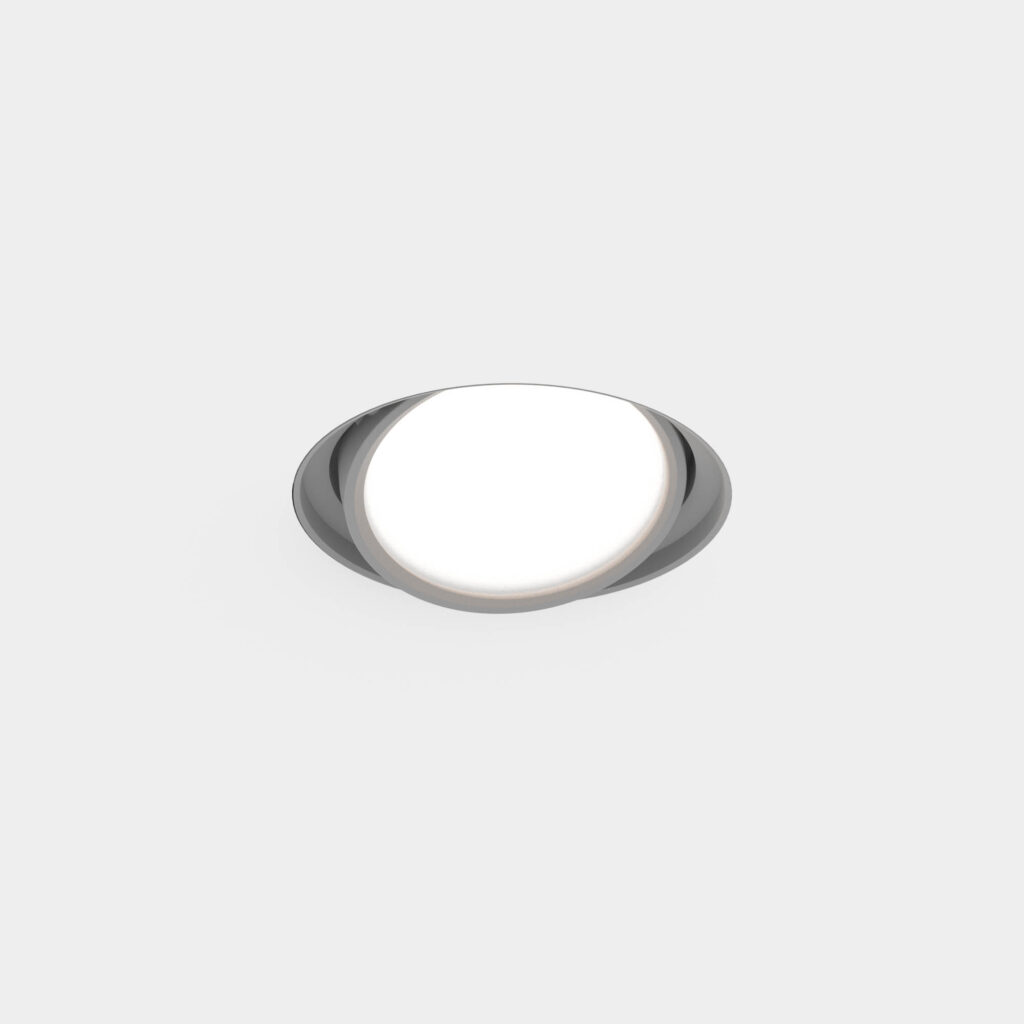

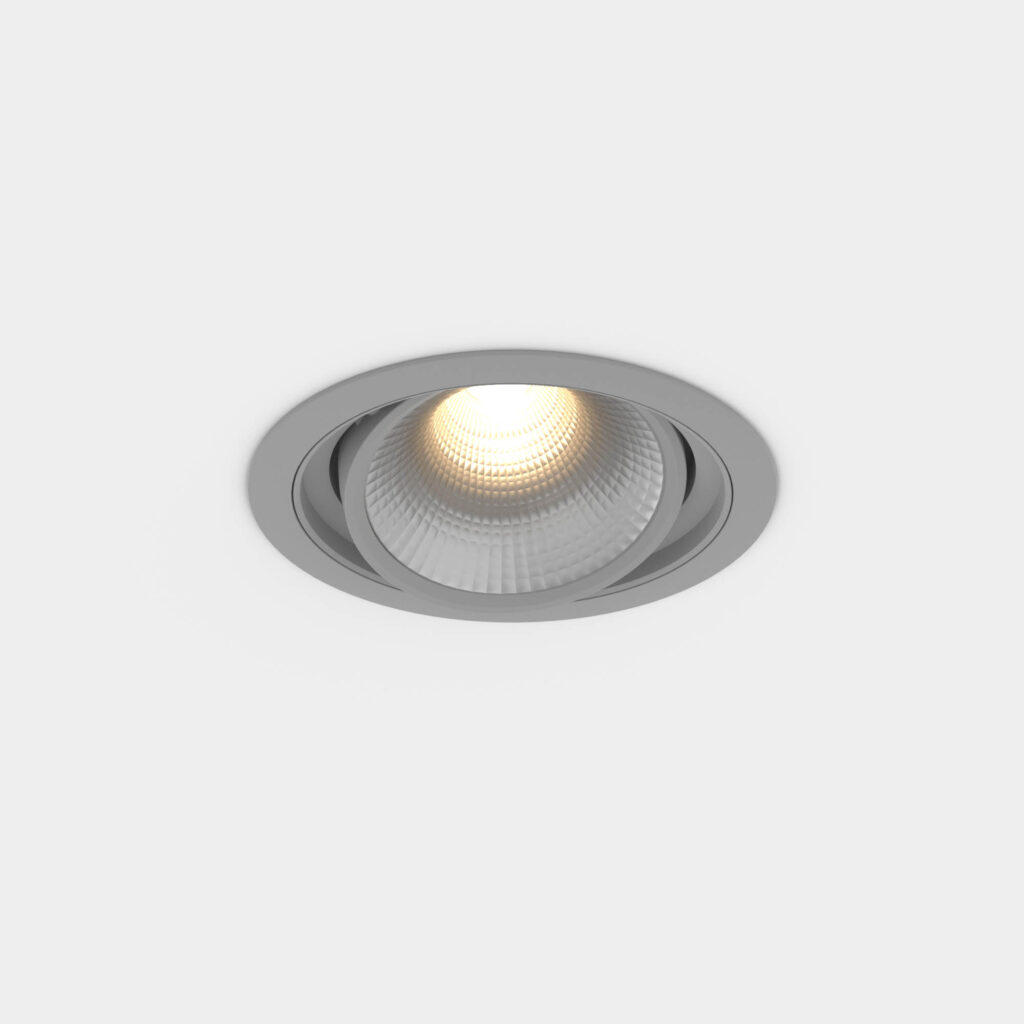

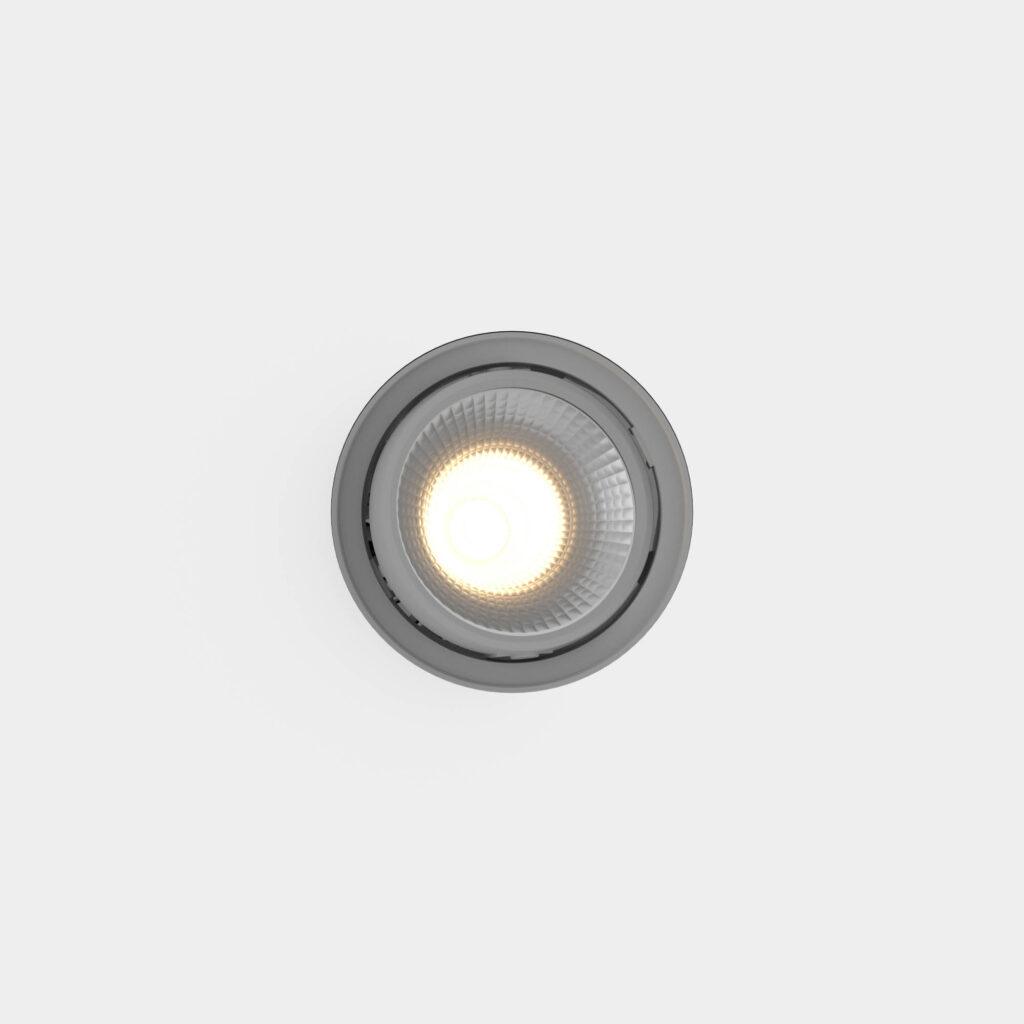

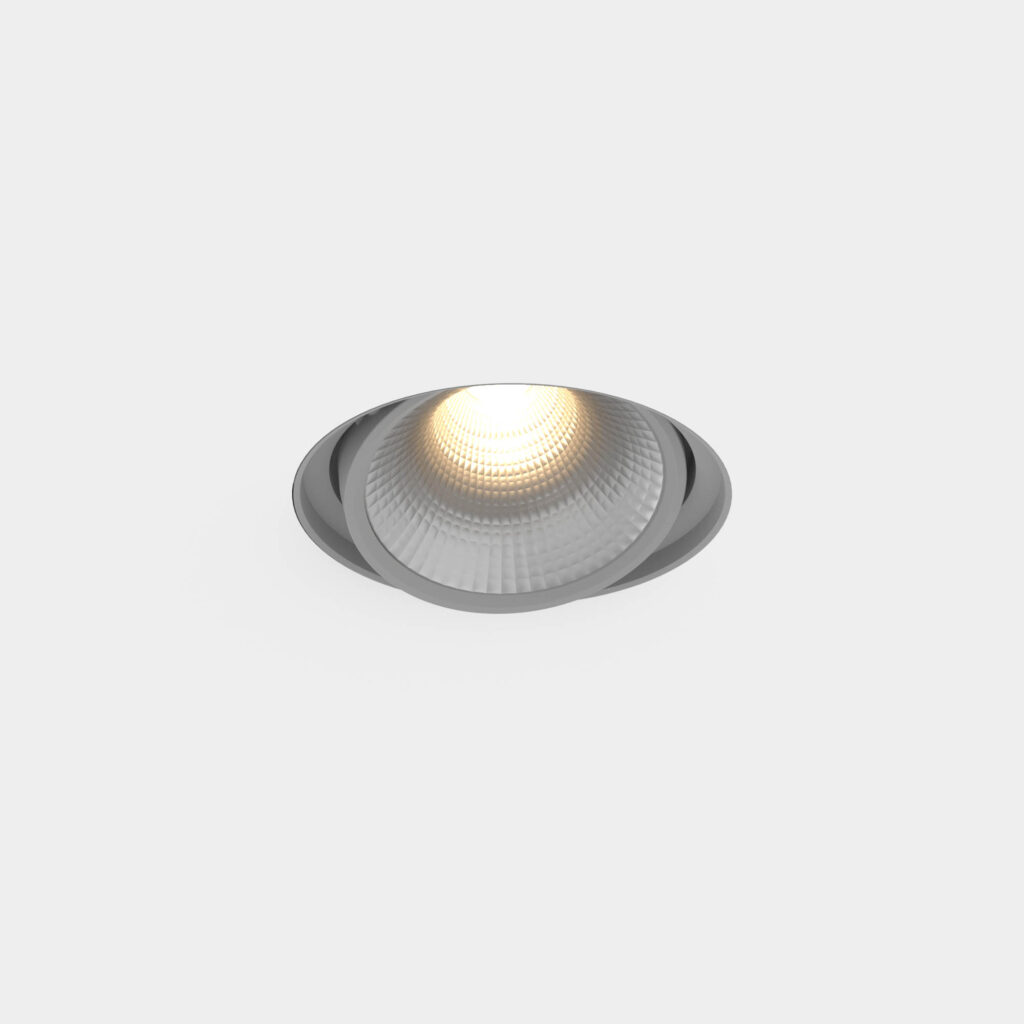

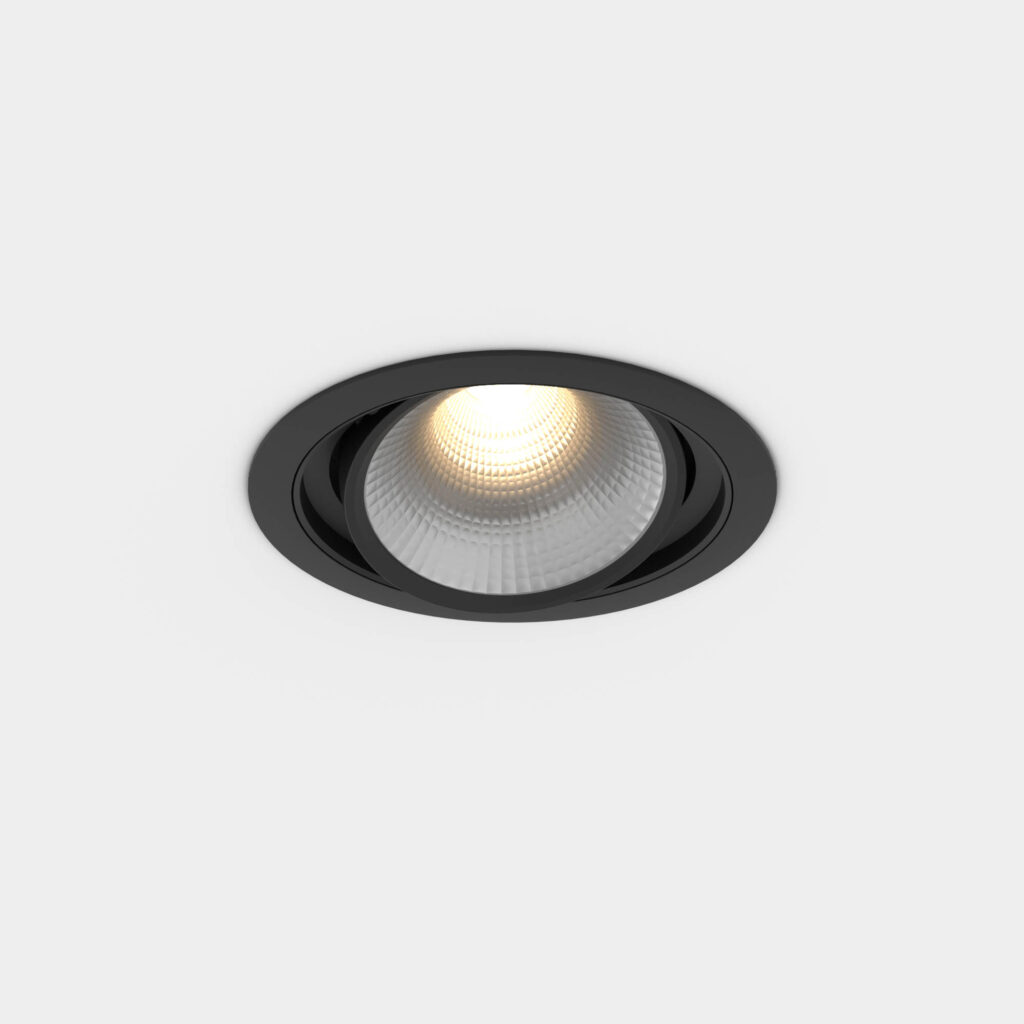

  • Available as a fixed downlight, a wall washer, and an adjustable fixture with 360 ̊ rotation and up to 30 ̊ angle adjustment.
  • Ceiling thickness must be between 1/4” and 1” (6mm & 25mm).
  • Faceted and Smooth metal reflectors provide beam spreads between 10° to 80°
  • Five year warranty.
  • CCT: 2500K, 2700K, 3000K, 3500K, 4000K, 6500K
  • CRI: 95+
  • Output: 1000 lm, 1500 lm, 2000 lm, 3000 lm, 750 lm

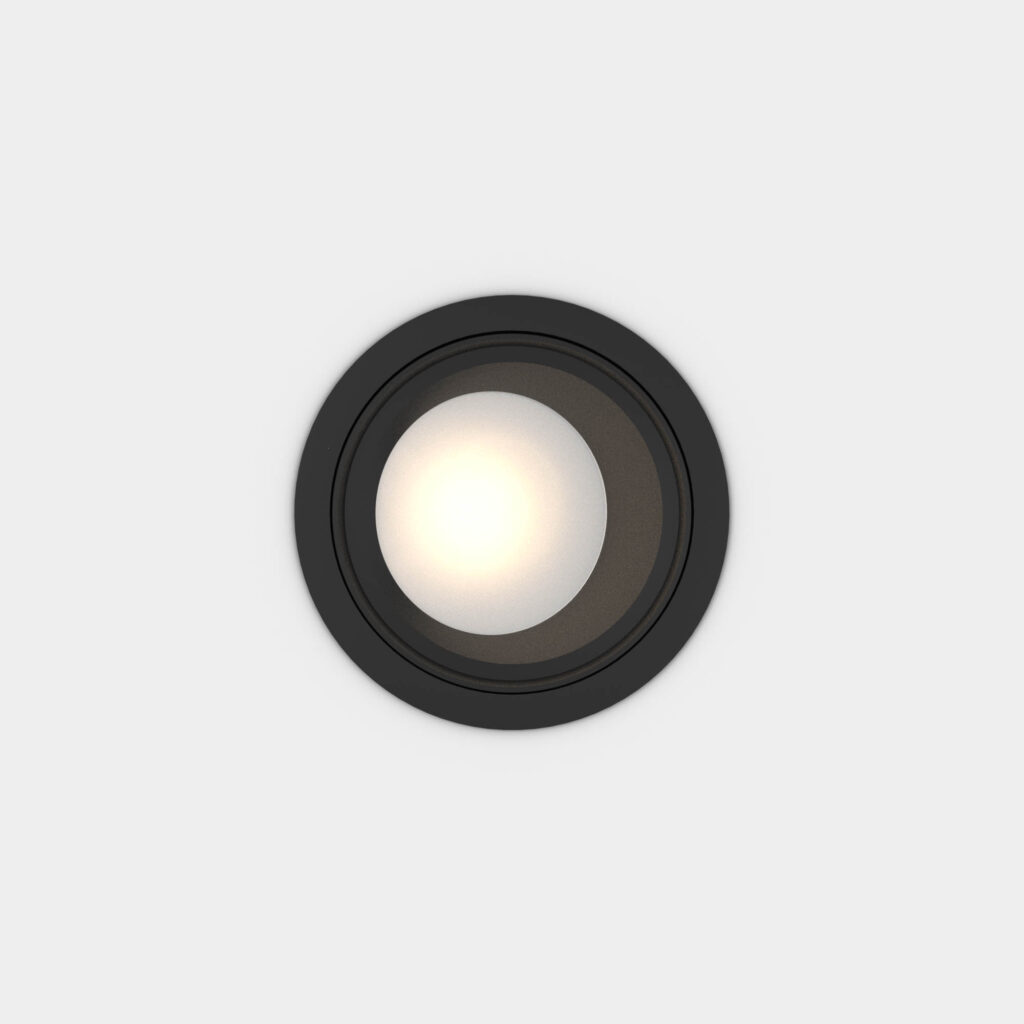

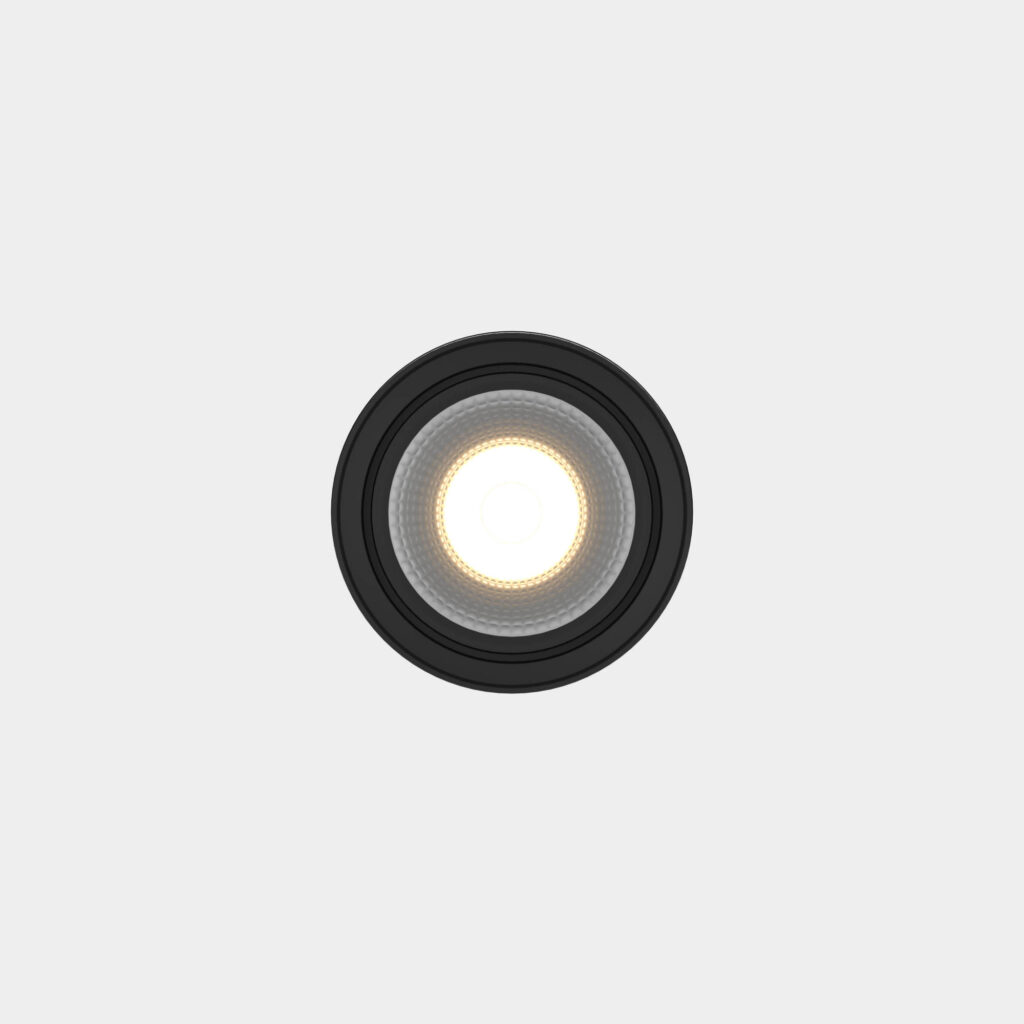

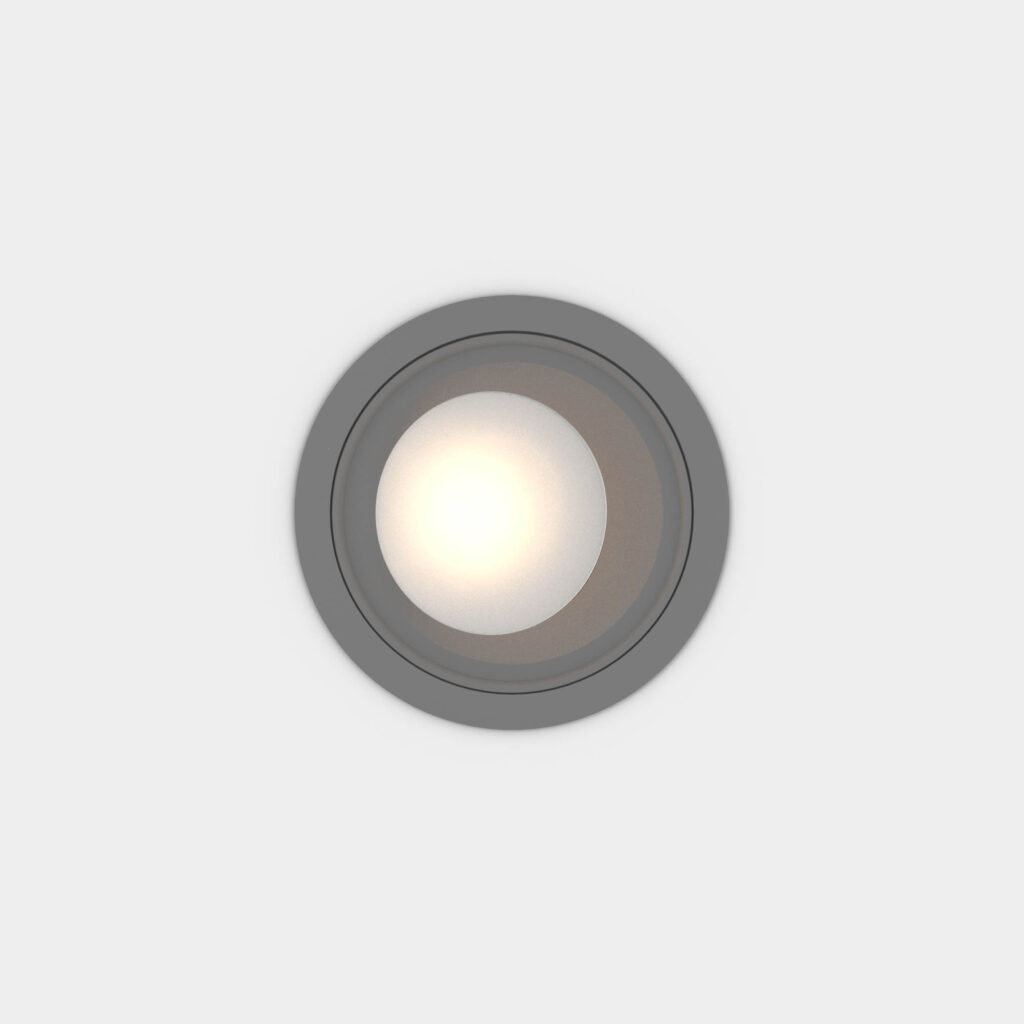

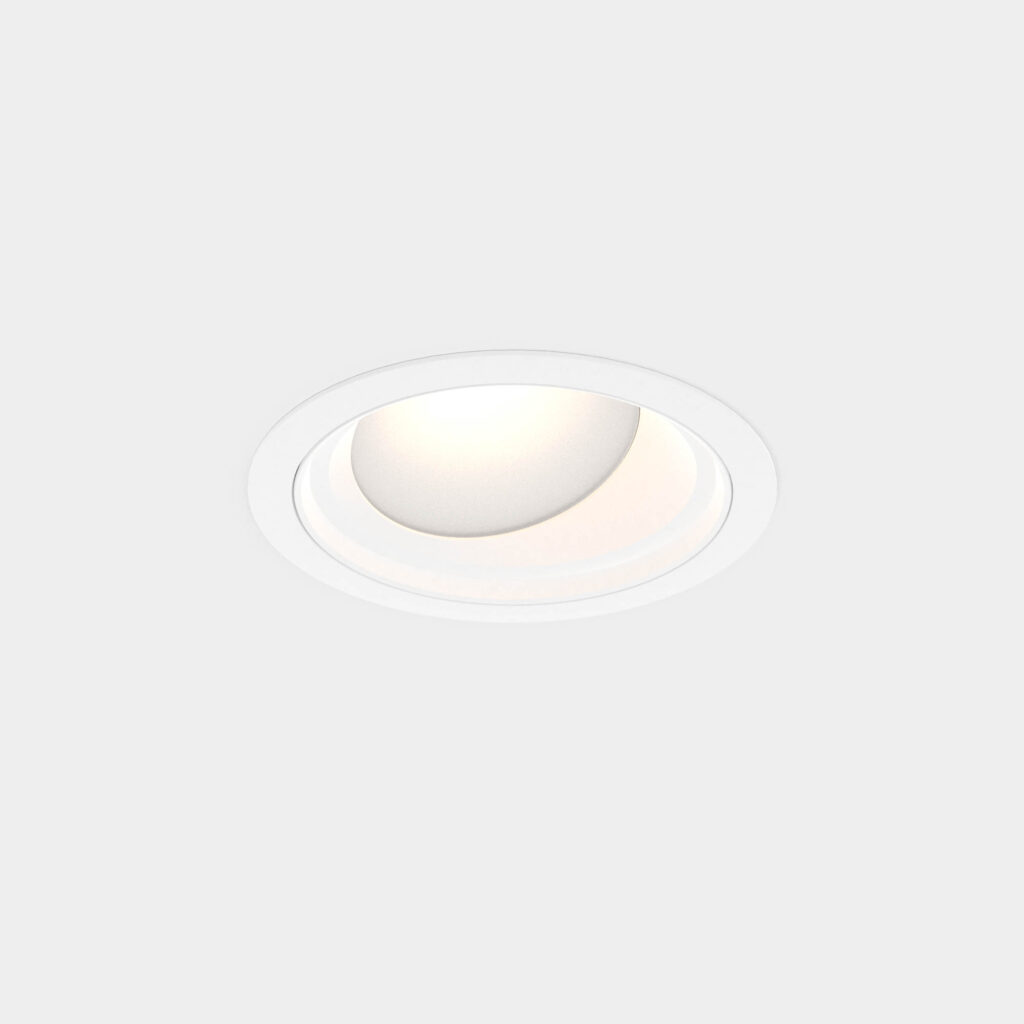

  • Function: Adjustable, Fixed, Wall Wash
  • Aperture Size: 3 inch
  • Shape: Round
  • Color: Static White, Tunable White, Warm Dim
  • Optics: 15°, 30°, 45°, 60°
  • Wattage: 14.0 W, 9.1 W
  • Dimming Protocol: 0-10 V, DALI, DMX, Phase
  • Accessories: Louver

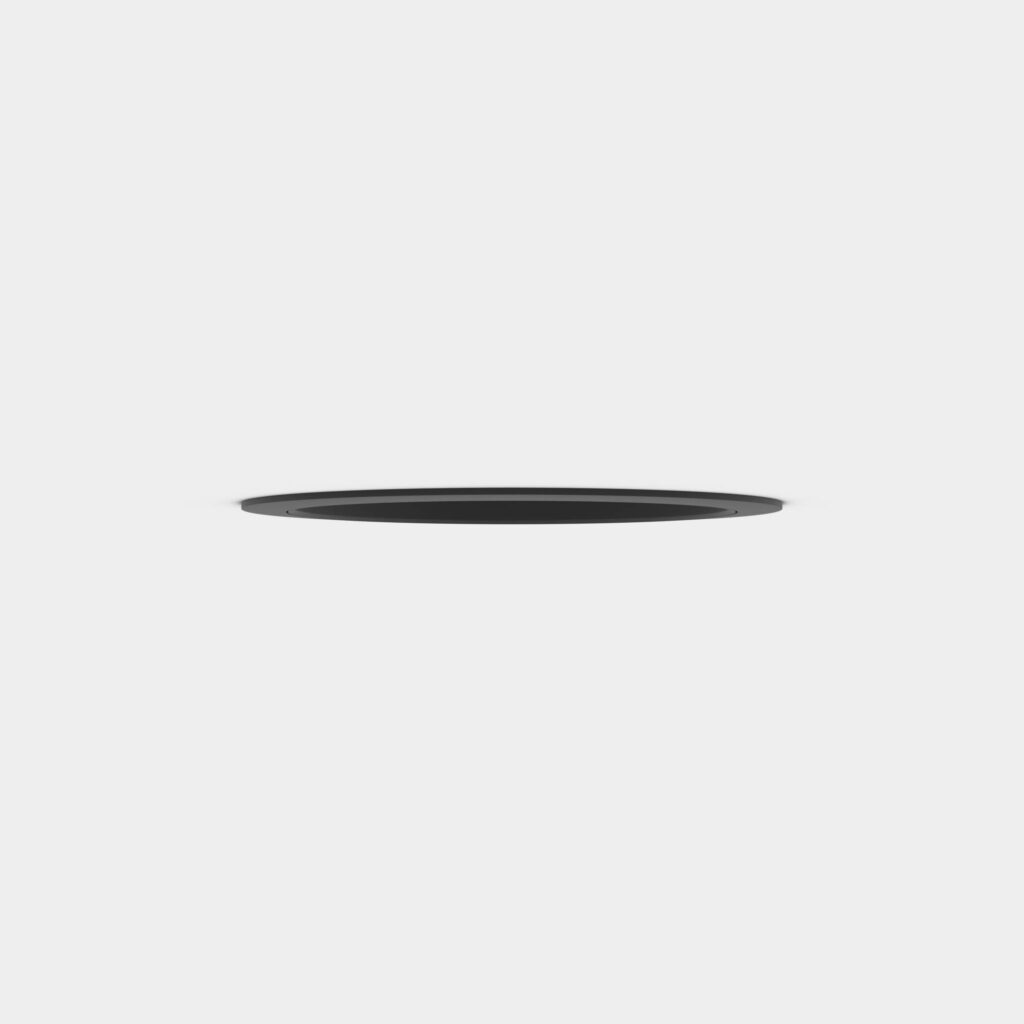

  • Trim: Trimless, Trimmed
  • Sustainability: Declare, JA8/Title 24, RoHS/Reach
  • Made In: Made in Canada
  • Warranty: 5 Years
  • Product Number: ART3
Learn more
Specsheets
Install Guides
Cross Reference Guide
IES Files
Artemis 3 Specsheet
NAN
PDF
Artemis 3 TW WD Specsheet
NAN
PDF
Artemis 3 Installation Guide
726.12 KB
PDF
Artemis 3 Trimless Installation Guide
792.48 KB
PDF
Senso Part Number Reference Guide
518.95 KB
PDF
ART3-D-30-35K-F10-NA.ies
100.94 KB
IES
ART3-D-30-35K-F18-NA.ies
103.24 KB
IES
ART3-D-30-35K-F30-NA.ies
101.24 KB
IES
ART3-D-30-35K-F45-NA.ies
101.75 KB
IES
ART3-D-30-35K-F60-NA.ies
101.68 KB
IES
ART3-D-30-35K-S30-NA.ies
124.68 KB
IES
ART3-D-30-35K-S45-NA.ies
125.42 KB
IES
ART3-D-30-35K-S80-NA.ies
124.67 KB
IES
ART3-W-30-30K-F18-DL.ies
103.72 KB
IES
ART3-D-30-WD-F10-NA.ies
103.69 KB
IES
ART3-D-30-WD-F18-NA.ies
103.47 KB
IES
ART3-D-30-WD-F30-NA.ies
103.27 KB
IES
ART3-D-30-WD-F45-NA.ies
102.77 KB
IES
ART3-D-30-WD-F60-NA.ies
101.53 KB
IES
ART3-D-30-WD-S30-NA.ies
102.13 KB
IES
ART3-D-30-WD-S45-NA.ies
102.69 KB
IES
ART3-D-30-WD-S80-NA.ies
101.73 KB
IES
ART3-W-30-WD-F18-DL.ies
103.48 KB
IES
